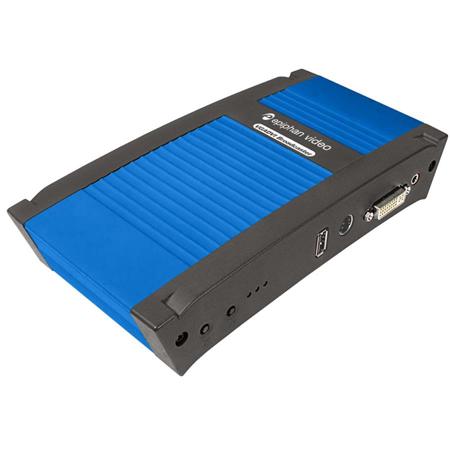

Epiphan VGADVI Broadcaster Digital Portable Audio and Video Recorder, 8GB Storage

SKU: ESP0440

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What video sources can the VGADVI Broadcaster capture from?

The VGADVI Broadcaster can capture from a variety of sources including DVI, HDMI, VGA, DisplayPort, S-Video, and composite sources. It can also capture from HD sources like computer monitors, RADAR displays, or ultrasound monitors as well as SD sources like camera feeds.

How can I monitor the VGADVI Broadcaster while on the go?

You can monitor the VGADVI Broadcaster using the EpiphanConnect mobile application, which is available for both Android and iOS devices. This allows you to perform basic operations like checking video signals, audio levels, starting and stopping recordings, and checking disk space from your mobile device.

What options does the VGADVI Broadcaster offer for storing recorded files?

The VGADVI Broadcaster offers multiple options for storing your recorded files. You can store the files on the device itself, transfer them to an external USB storage device, or to local network storage via FTP, RSYNC, or CIFS.

Does the VGADVI Broadcaster support live streaming formats and protocols?

Yes, the VGADVI Broadcaster supports a wide range of live streaming formats and protocols. This ensures compatibility with various media players, Content Delivery Networks, and multicast networks.

Is the VGADVI Broadcaster easy to set up and use?

Yes, the VGADVI Broadcaster is designed for easy setup and operation. Once configured, it doesn't require a computer or any additional equipment - simply power it on to start encoding and streaming.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Epiphan VGADVI Broadcaster Specifications

  • Video Inputs: Connectors

    1x DVI, 1x HDMI1, 1x VGA, 1x Component, S-Video/composite (NTSC/PAL)

  • Video Inputs: Resolutions

    VESA modes: 640x480 to 1920x1200; Custom VGA/DVI modes

  • Video Inputs: HD Video Format Options

    RGB plus separate HSync and VSync signals; RGB plus CSYNC signal; RGB with Sync-on-Green synchronization; DVI single link.

  • Video Inputs: EDID Support

    EDIDs can be uploaded to the device

  • Audio Input: Connector

    1x 3.5mm Stereo Analog Audio

  • Audio Input: Input Levels

    Mic and Line-in

  • Video Output (Splitter/Converter)

    Connector: 1x DVI-I (pass-through)
    Signals: Analog and Digital versions are always output with automatic D/A or A/D applied

  • Audio Output: Connector

    1x 3.5mm stereo audio

  • Video Encoding: Video Codec

    H.264, MPEG-4, Motion JPEG

  • Video Encoding: Video Bit Rates

    100 - 9999 kbit/sec

  • Video Encoding: Key Frame Intervals

    Programmable

  • Video Encoding: Color Resolution

    YUV 4:2:0

  • Video Encoding: Frame Size

    Configurable up to 1920x1200

  • Video Encoding: Frame Rates4

    30fps at 1920x1080p (or smaller) 25fps at 1920x1200

  • Audio Encoding: Audio Codec

    MP3:
    Bitrate: 32-192kbps
    Sample Frequencies: 22kHz, 44kHz

    PCM:
    Sample Frequencies: 22kHz, 44kHz

    AAC:
    Bitrate: 32-192kbps
    Sample Frequencies: 16 kHz, 22kHz, 44kHz

    G.711:
    Sample Frequencies: 8kHz (a-Law) & 8kHz (Mu-Law)

  • Audio Encoding: Audio Channels

    1x Stereo Channel

  • Network Interfaces: Connector

    1x 10/100 Ethernet RJ45 (PoE - spec: IEEE 802.3af class 0)

  • Network Interfaces: Streams

    HTTP: FLV, ASF, MJPEG
    TCP/UDP: RTSP

  • Network Interfaces: Multicast Streams

    UDP: RTP, MPEG-TS RTP, MPEG-TS

  • Network Discovery / Announce

    UPnP, SAP

  • Video/Audio Recording: Internal Storage

    8GB (solid state)
    No recorded file size limits when configured with local or network attached storage, enabling 24/7 recording.
    Automatically removes oldest recordings from internal storage as space is required.
    File maintenance through admin interface (Web UI)

  • Video/Audio Recording: Local Storage

    Automatic copy to local USB drives via the 2x USB 2.0 ports

  • Video/Audio Recording: Network Storage

    FTP server and FTP client capabilities (automatic and manual)
    Copy to USB drive (automatic and manual)
    RSYNC/CIFS synchronization

  • Playback and Recorded Formats

    Download recorded videos (AVI, MPEG-TS or MOV) using the Web UI and playback through any compatible player.

  • Administration

    Web UI allows for full administrative capabilities and includes multiple user accounts/passwords
    Included API for integration into existing environments (executed via HTTP or RS-232). RS-232 API integration requires a USB to RS-232 adapter (not included)

  • Time Synchronization

    NTP, TIME (RFC 868), PTP v1 (IEEE-1588-2002 V1)

  • Functions

    Two video input channels (1HD, 1SD)
    Single stream or independent streaming and recording
    Silent reliable operation with no fans or moving parts

  • Dimensions

    7.95 x 4.13 x 1.38" / 20.19 x 10.49 x 3.51cm

  • Weight

    1.4lbs / 0.64kg

  • UPC Code

    713757705912

About Epiphan VGADVI Broadcaster

An exceptional blend of durability, portability, and high-quality performance, the VGADVI Broadcaster Digital Portable Audio and Video Recorder is a versatile solution for capturing and streaming audio and video content. This user-friendly device is designed for live streaming, offering 8GB of storage for a substantial amount of content, eliminating the need for additional equipment or external storage.

The VGADVI Broadcaster is capable of capturing full HD and SD video from a variety of sources, including DVI, HDMI, VGA, DisplayPort, S-Video, and composite sources. It can also capture HD video sources such as computer monitors, RADAR displays, or ultrasound monitors, as well as SD video sources like camera feeds. This device can stream these sources as two synchronized, time-stamped streams or a multi-source layout with customized branding, offering flexibility for your streaming needs.

This device is designed for convenience, with easy setup and operation. Once configured, it doesn't require a computer or any additional equipment - simply power it on to start encoding and streaming. It supports a wide range of live streaming formats and protocols, ensuring compatibility with various media players, Content Delivery Networks, and multicast networks.

The VGADVI Broadcaster also offers a variety of options for storing your recorded files. You can store the files on the device itself, transfer them to an external USB storage device, or to local network storage via FTP, RSYNC, or CIFS. This ensures you never run out of disk space and facilitates 24/7 recording.

With its compact, lightweight design, the VGADVI Broadcaster is ideal for use in various settings, from offices to boardrooms, laboratories, and more. It integrates video capturing, scaling, encoding, recording, and streaming into one simple device, making it a convenient solution for all your streaming needs. Plus, with its Power over Ethernet (PoE) capability, it eliminates the need for AC power connection, offering further convenience.

Monitor your VGADVI Broadcaster on the go with a mobile device or tablet using the EpiphanConnect mobile application, available for both Android and iOS devices. This allows you to perform basic operations like checking video signals, audio levels, starting and stopping recordings, and checking disk space from the mobile interface.

In conclusion, the VGADVI Broadcaster Digital Portable Audio and Video Recorder is a robust, versatile, and user-friendly solution for capturing and streaming high-quality audio and video content.

Epiphan VGADVI Broadcaster Features

  • High-quality portable audio and video recorder with 8GB storage for live streaming
  • Captures full HD and SD video from a variety of sources including DVI, HDMI, VGA, and more
  • Streams as two synchronized, time-stamped streams or a multi-source layout with customized branding
  • Supports a wide range of live streaming formats and protocols for maximum compatibility
  • Offers multiple options for file storage, including on-device storage, external USB, and local network storage
  • Convenient mobile monitoring with the EpiphanConnect app available for both Android and iOS devices

Key Features

  • High-quality portable audio and video recorder with 8GB storage for live streaming
  • Captures full HD and SD video from a variety of sources including DVI, HDMI, VGA, and more
  • Supports a wide range of live streaming formats and protocols for maximum compatibility
  • Convenient mobile monitoring with the EpiphanConnect app available for both Android & iOS devices

What's in the box:

  • Epiphan VGADVI Digital Audio and Video Streaming Device
  • VGA to DVI-I Cable
  • HDMI to DVI-I Adapter
  • DVI-I to DVI-I Cable
  • Composite to S-Video Cable
  • 2x Ethernet Cables
  • Power Over Ethernet Injector
  • Epiphan 1 Year Limited Warranty
