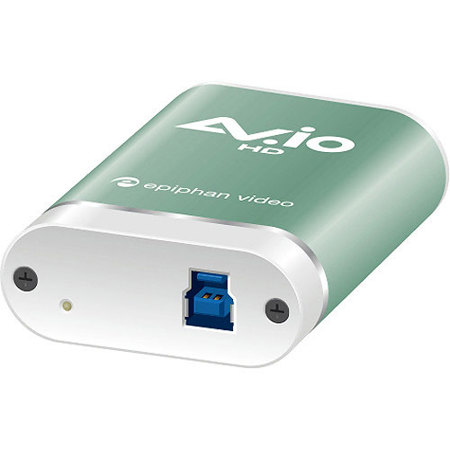

Epiphan AV.io HD USB 3.0 Video Grabber
See all Epiphan items

Epiphan AV.io HD USB 3.0 Portable Video Grabber

SKU: ESP0909
(1)

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2016-09-21T15:51:37

Rated 5 out of 5

Adorama and the AV.io saved the shoot!

Started on a Wednesday, I received a project: Document an operation in the surgery suite. I was making all the arrangements, patient releases, flights, etc. Patients were scheduled for Friday on the East Coast, I am on the West. The doctor sent a photo of the equipment connections, and I was searching for the equipment to record the scope, while I had a Camera on the patient. Found the AV.io Video Grabber, but was having trouble finding one with the right connection, to send overnight to the Hotel while I was flying on Thursday. At 3:00 pm Pacific found one on Amazon, but as I placed the order, shipping was closed, and I could not get it. My team found one on Adorama, I called and they were able to ship the AV.io unit and cables, which arrived at the hotel, and we were able to get the shots. Worked perfectly. Really impressed with Customer service. I am now a loyal Adorama Customer.

Michael V.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Epiphan AV.io HD Specifications

  • Interface

    USB 3.0, USB 2.0

  • OS drivers

    UVC and UAC device

  • Connectors

    DVI-I (integrated, digital & analog)
    USB 3.0 B-Type connector

  • Input

    HDMI (including audio), DVI, VGA

  • Input resolution

    Up to 1920x1200

  • Output Resolutions

    640x360: 15, 30, 60fps
    640x480: 15, 30, 60fps
    848x480: 15, 30, 60fps
    960x540: 15, 30, 60fps
    1024x768: 15, 30, 60fps
    1280x720: 15, 30, 60fps
    1280x1024: 15, 30, 60fps
    1600x1200: 15, 30, 60fps
    1920x1080: 15, 30, 60fps
    1920x1200: 15, 30, 60fps

  • Output color space

    YUV 4:2:2

  • Capture latency

    Near-zero. However, third-party applications may contribute to capture delay

  • HDMI Audio (input)

    16-bit and 24-bit PCM encoded audio at 32 kHz, 44.1 kHz, and 48 kHz sampling rates

About Epiphan AV.io HD

AV.io HD is a simple to use, portable video grabber with no drivers to install. Use it with your favorite web-cam capture application on Windows, Mac and Linux systems for high quality video capture from any HDMI, DVI or VGA video source. Captures HDMI audio too! AV.io HD transfers lossless uncompressed video at 60 fps with resolutions up to 1920x1200 over USB 3.0.

• Captures from HDMI, DVI or VGA sources
• Supports USB 3.0 or USB 2.0
• Resolutions up to 1920x1200 at 60 fps
• Supports HDMI audio
• Windows, Mac OS, Linux

Epiphan Support Plans
This product comes with a one year limited warranty and one year of telephone and email support. Epiphan offers two extended support plans for this product.

Simple to setup
No software installation required
AV.io HD is a video capture device that doesn't require drivers to be installed on your computer - it's as simple as using a webcam! Windows, Mac and Linux operating systems will automatically detect AV.io HD ensuring compatibility with your favorite software.

Easy to connect and share
Required adapters and cables for HDMI, DVI or VGA devices are included with your AV.io HD - simply connect your device and start sharing.

Simple to use
Full HD video capture at 60 fps
AV.io HD transfers uncompressed video to your computer or laptop in beautiful Full HD at 60 fps with near-zero latency.

Audio capture over HDMI
In addition to capturing video content, AV.io HD also captures audio from your HDMI source.

Worry-free, automatic scaling and aspect ratios
AV.io HD automatically adjusts video scaling and aspect ratios based on your application's requirements, providing you fantastic video quality - even when swapping video sources.

Bring it anywhere - Rugged, lightweight and portable
A portable travel companion for your video source
AV.io HD fits in your hand and is lightweight enough to travel with you anywhere you need to share video.

Built to last
Like all Epiphan products, AV.io HD is designed to be strong, durable and rugged enough for daily use (some of Epiphan products are even used in space!). AV.io HD features robust connectors designed for reliable and repeated long-term use.

Powered over USB
Power-on your AV.io HD by simply plugging it into your computer's USB port - no AC power connections required!

No distractions, noiseless operation
No internal fans or moving parts means AV.io HD is silent and will not distract from your video capture, streaming or recording experience.

Share video using your favorite applications
Third-party application support
Just like your webcam, AV.io HD makes your video source available within applications you already use, such as:

• Telestream Wirecast
• Skype
• Adobe FMLE
• Quicktime
• VLC media player
• Windows Camera

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Epiphan AV.io HD USB 3.0 Video Grabber
  • DVI Cable (Male to Male)
  • DVI-VGA Cable (Male to Male)
  • HDMI to DVI Adapter
  • USB 3.0 Cable (AM-BM)
  • Epiphan 1 Year Limited Warranty
