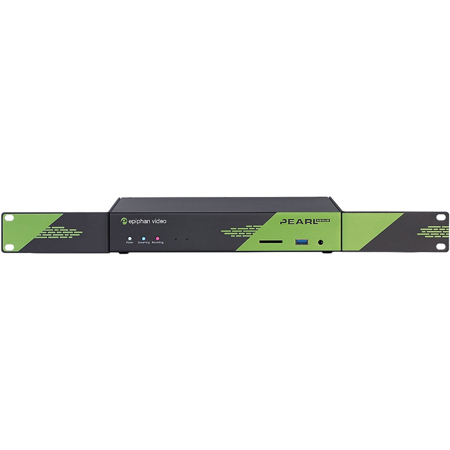

Epiphan Pearl Nexus Live Video Production System

SKU: ESP1882 MFR: ESP1882
Earn VIP Reward Points

Key Features

  • Elevate live video production with Pearl Nexus's seamless video switching capabilities.
  • Stream to multiple platforms simultaneously with reliable, high-resolution video output.
  • Effortlessly manage your content using integrated Kaltura, Panopto, and YuJa CMS platforms.
  • Achieve low latency streaming with advanced H.264/AVC video codec for optimal performance.
  • Connect various devices using HDMI, SDI, and USB inputs for ultimate compatibility.
  • Enjoy easy setup and remote access for troubleshooting via Epiphan Cloud management.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$159.99

4 Year

$191.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Epiphan Pearl Nexus Specifications

Video inputs

Video inputs

Jump to...
  • Local video inputs

    1x 3G SDI
    2x HDMI 1.4a2
    2x USB 3.0 (UVC)3 - rear panel

  • Connectors

    2x HDMI type A (female)
    1x BNC (female)
    2x USB-A (female) - rear panel
    1x RJ-45 (female)

  • Aspect ratios

    3:2, 4:3, 16:9, 16:10, and custom aspect ratios

  • Standard resolutions

    PAL, PAL wide, NTSC, NTSC wide

  • Input resolution range

    640 x480 to 1920 x1200

  • Frame rate

    Up to 60 fps

  • Video input color spaces

    HDMI: RGB 4:4:4, YCRCB 4:2:2, YCRCB 4:4:4
    SDI: RGB 4:4:4, YCRCB 4:2:2

  • Deinterlacing

    Yes

  • Maximum cable length for 3G-SDI

    300' (91.4m)

  • Maximum cable length for USB 3.0

    6' (2m)

Audio inputs

Jump to...
  • Analog audio inputs

    2x XLR mic level/pro line level (+4.0 dBu) upto 12.3 VRMS +24 dBu (balanced/unbalanced, mono or L/R stereo pair); phantom optional
    2x 1/4" TRS pro line level (+4.0 dBu) up to to 12.3 VRMS, +24 dBu (balanced/unbalanced, mono or two L/R stereo pairs)
    1x RCA consumer line level -10 dBV (L/R stereo pair)
    1x 3.5 mm stereo input for electret microphones (unbalanced)

  • Connectors

    1x SDI5
    2x HDMI
    2x USB (rear panel)
    1x RTSP (from RTSP input over Ethernet)
    1x SRT (from SRT input over Ethernet)

  • Audio gain control

    0 dB to +30 dB

  • Audio mute

    Yes

  • Configurable audio delay

    -300 ms to +300 ms

Video processing

Jump to...
  • Video output color space

    4:2:0, 8 bits per color

  • Video codec

    H.264/AVC (ITU H.264, ISO/IEC 14496-10) 4:2:0, 8-bit color
    - Encoding profile: High, Main, Baseline
    - Profile levels: 3.0, 3.1,3.2,4.0,4.1
    Motion JPEG

  • Bitrate

    1 to 50 Mbps (selectable)

  • Bitrate control

    Constant

  • Hardware accelerated video encoding

    Optional

  • Video scaling

    Software

  • Key frames

    1/2 s and 1 s up to 5 s in 1-second intervals

  • Remote access

    Remote login for rescue troubleshooting and control.
    Cloud versions of the Admin panel and Epiphan Live available for Internet access.

Audio processing

Jump to...
  • Compression

    MP3, AAC, and PCM

  • Sampling rate

    MP3: 22 kHz, 44 kHz, 48 kHz
    AAC: 16 kHz, 22 kHz, 44 kHz, 48 kHz
    PCM: 22 kHz, 44 kHz, 48 kHz

  • Bitrate

    64 to 320 kbps (MP3 and AAC)

Video output

Jump to...
  • Signal types

    1x HDMI 1.4a
    3x H.264/AVC digital video over Ethernet

  • Connectors

    1x HDMI
    1x RJ-45 (female)

  • Encoded channels

    Up to three 1080p channels at 30 fps with one full HD video source per channel (recommended)

  • Streaming protocols

    MPEG-TS, and FLV
    RTSP over TCP/UDP
    SRT (push) over UDP
    HLS (push) over HTTP/HTTPS
    Multi-publish to streaming server / CDN (SRT, RTSP, RTMP, RTMPS)
    HLS (pull) - Native Apple HTTP/HTTPS stream for iPad, iPhone and iPod Touch

  • Multicast streams

    RTP, MPEG-TS & RTP, and MPEG-TS over UDP and SAP

  • Resolution ranges

    Recorded: 480p to 1920 x1200p
    Confidence monitoring: 480p to 1920 x1200p
    Streamed: 480p to 1920 x1200p

  • Frame rate

    Up to 60 fps

  • Formats

    H.264/AVC (ITU H.264, ISO/IEC 14496-10) 4:2:0, 8-bit color
    - Encoding profile: High, Main, Baseline
    - Profile levels: 3.0, 3.1,3.2,4.0,4.1
    Motion JPEG

  • Network traffic shaping

    4 Mbps to 95 Mbps (configurable) (multicast streams)

Audio output

Jump to...
  • Analog audio output

    1x 3.5mm stereo headphone jack - front panel

  • Digital audio outputs

    RTSP and SRT audio over Ethernet
    HLS audio over HTTP/HTTPS
    HDMI audio (embedded)

Monitor and control

Jump to...
  • USB keyboard

    Connect a standard USB keyboard (optional)

  • USB status light

    Connect a single USB status light (optional); supported models
    - Kuando BusyLight UC Alpha and UC Omega
    - Delcom Products USB HID single-color and multi-color signal indicators

Recording and storage

Jump to...
  • Record formats

    AVI, MOV, MP4, and MPEG-TS

  • File upload formats

    JPEG, PNG

  • Internal storage

    1 TB SSD

  • SD card

    Available in future firmware6

  • File system for SD card

    TBD

  • File transfer protocols

    FTP, SFTP, SCP, AWS S3 client, and WebDAV client Rsync

  • Network file share protocols

    CIFS/SMB

  • File system for USB storage

    FAT16, FAT32, XFS, EXT2, EXT3, EXT4, NTFS

  • External USB ports

    1x USB 3.0 0.9A - front panel
    2x USB 3.0 0.9A (UAV/UAC) - rear panel

  • Bitrate

    Up to 50 Mbps

Communication

Jump to...
  • USB standards

    USB 1.1, USB 2.0, and USB 3.0
    HDCP compliant

  • Serial port

    1x Bidirectional RS-232 (via a USB to serial adapter)

  • Serial protocols

    Data bits: 7 or 8 (default)
    Stop bits: 1
    Parity: None
    Flow control: None, Hardware or Software

  • Serial port baud rate

    19200 bps

  • Ethernet host port

    1x RJ-45 (female)

  • Ethernet data rate

    10/100/1000 Base-T, half/full duplex with autodetect

  • Maximum Transmission Unit

    68 to 1500 MTU (configurable)

  • Protocols

    DHCP, TLS 1.2, LDAP, mDNS, SAP, RTP, MPEG-TS & RTP and MPEG-TS/UDP, 802.1x, EAPOL, EAP-TTLS, EAP-TLS, PEAP, HTTP, HTTPS, NTP, PTP, FTP, SFTP, SCP
    AWS S3

  • Network discovery/announce

    SAP

Network security

Jump to...
  • 802.1x EAP methods

    PEAP, EAP-TLS, EAP-TTLS

Administration and control

Jump to...
  • Admin panel

    Local web UI for full administration.

  • Epiphan Live

    Local web-based UI to easily control streaming, recording, and switching.

  • Secure access

    Multiple user accounts and passwords.
    HTTPS for secure Admin panel and Epiphan Live access, as well as local network access to the live channel broadcast.

  • Remote access

    Epiphan Cloud for remote device management and remote login7.

  • API

    Yes (HTTP/HTTPS or RS-232)

Integrations

Jump to...
  • Content management systems

    Kaltura
    Panopto
    YuJa
    Opencast

  • Cloud access and management

    Epiphan Edge

  • Control platforms

    Crestron
    Q-SYS

AC/DC power adapter

Jump to...
  • Model

    ADP 60KD BA

  • Input power rating

    90 to 240 VAC, 47 to 63 Hz

  • Output power rating

    12 VDC, 5.0 A, 60 W

  • Active efficiency (average)

    88%

  • Efficiency (10% load)

    95%

  • No load consumption

    0.21 W

  • Power adapter manufacturer

    Delta Electronics Inc.
    3 Tungyuan Road, Chungli Industrial Zone, Taouyan City 32063, Taiwan

General

Jump to...
  • Operating temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Cooling

    Fan air flow: side to side

  • Enclosure

    Metal

  • Form factor

    1RU (Rackmount Unit) with detachable mounts

  • Power supply

    External: 1.5 A, 100-240 VAC, 50 to 60 Hz (60 W); 1.3 A, 100-240 VAC, 50 to 60 Hz (84 W)

  • Input power rating

    12 VDC, 5.0 A (maximum / 60 W PSU); 12 VDC, 7.0 A (maximum / 84 W PSU)

  • Regulatory compliance

    FCC compliance: Part 15

    CE compliance:
    Directive 2014/30/EU - Electromagnetic Compatibility
    Directive 2014/35/EU - Low Voltage Directive
    Directive 2011/65/EU - RoHS

Physical

Jump to...
  • Dimensions ( W x D x H )

    19 x 7.5 x 1.75" (483 x 190 x 43 mm)
    Rackmount brackets installed, rubber feet removed

  • Weight

    5.3 lbs (2.4kg)

  • UPC Code

    732388851102

About Epiphan Pearl Nexus

Before you dive into the world of professional video production, consider the Pearl Nexus Live Video Production System. This versatile system is designed to integrate seamlessly into any professional AV environment, making it a central component of your video workflows.

The Pearl Nexus is renowned for its flexibility, offering seamless integrations with a range of hardware and software. Whether you're using Crestron, Q-SYS, Extron, Panopto, YuJa, OpenCast, or Kaltura, the Pearl Nexus can easily integrate into your existing setup, streamlining your video workflows and enhancing your production capabilities.

With the Pearl Nexus, you gain total control over your video production process. Its effortless automation features, such as scheduling and plug n' play configuration presets, ensure no missed recordings or last-minute hiccups. Plus, with the Epiphan Edge, you can control your Pearl Nexus from anywhere and get real-time video streams of inputs and channels in HD.

Managing multiple devices is a breeze with the Pearl Nexus. Epiphan's cloud-based fleet management platform allows for faster device deployment, easy maintenance, and guaranteed uptime. You'll have full remote access, live switching and production from the cloud, and real-time alerting of any issues.

The Pearl Nexus also allows you to get creative with your video production. With fully custom layouts, switching, branding, and graphics, you can make every video an experience. Add dynamic text for timestamps, GPS, or other relevant data, and bring in remote guests for hybrid events through SRT, Zoom, or Teams.

When it comes to recording, the Pearl Nexus has you covered. With simultaneous recording of multiple inputs (ISOs) and switched programs to local and networked storage, you can rest easy knowing your footage is safe. It even supports automatic file upload and multi-recording, ensuring you always have the best footage captured.

The Pearl Nexus also prioritizes secure live streaming and control. It supports the latest protocols for secure streaming, including up to 256-bit AES encryption using SRT, RTMPS, and HLS. Plus, with role-based access control and LDAP support, you can manage user privileges effectively.

The success of the Pearl Nexus lies in its finer details. From configuration presets and local Admin panel access to AV sync and API and RS-232 support, every feature is designed to enhance your video production experience. With the Pearl Nexus Live Video Production System, you're not just creating videos - you're crafting experiences.

Epiphan Pearl Nexus Features

  • Best of both works, rackmount or desktop
  • Plays nice with everything
  • Connect anything
  • Make every video an experience
  • Automated recording and streaming, for peace of mind
  • Easy to manage at scale

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Elevate live video production with Pearl Nexus's seamless video switching capabilities.
  • Stream to multiple platforms simultaneously with reliable, high-resolution video output.
  • Effortlessly manage your content using integrated Kaltura, Panopto, and YuJa CMS platforms.
  • Achieve low latency streaming with advanced H.264/AVC video codec for optimal performance.
  • Connect various devices using HDMI, SDI, and USB inputs for ultimate compatibility.
  • Enjoy easy setup and remote access for troubleshooting via Epiphan Cloud management.

What's in the box:

  • Epiphan Pearl Nexus Live Video Production System
  • AC/DC Power Adapter
  • Epiphan 1 Year Limited Warranty
