Elite Screens Evanesce Tab-Tension Specifications

  • Diagonal Size

    120"

  • Aspect Ratio

    4:3

  • View Area (HxW)

    72.0 x 96.0"

  • Screen Material

    CineWhite

  • Gain

    Gain 1.1

  • Wide-viewing angle

    180 deg.

  • Front/Rear Projection

    Front

  • Mount

    Ceiling recessed

  • Tension Control

    Tensioned

  • Keystone Control

    No

  • Voltage

    120V, 60Hz

  • Integrated Control

    Infrared
    Radio Frequency
    5-12 volt trigger
    3-position wall switch

  • L/R Black Masking

    3.7" (9.4cm)

  • Screen Width

    103.5" (262.89cm)

  • Screen Fully Deployed

    83.9" (213.11cm)

  • Full Housing Length

    111.4" (282.96cm)

  • Distance Between J Hooks

    93.3" (236.99cm)

  • Weight Bar Length

    108.7" (276.1cm)

  • Top Border

    8" (20.32cm)

  • Overall Height

    88.5" (224.79cm)

  • Bottom Border

    3.9" (9.91cm)

  • Dimensions (WxLxH)

    Case: 3.9 x 109.1 x 4.6" (9.91 x 277.11 x 11.68cm)

  • Weight

    44.6 lbs (20.23kg)

  • UPC Code

    848448020675

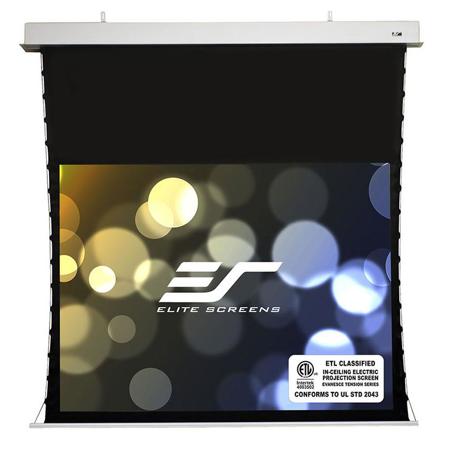

About Elite Screens Evanesce Tab-Tension

The Evanesce Tab-Tension is a versatile in-ceiling projection screen that conveniently disappears from view when not in use. It can be installed from within the above-ceiling airspace or from below thanks to its removable base panels that were originally designed for the European market. Its award-winning CineWhite 1.1 gain matte white tensioned-material provides superb color temperature with wide diffusion uniformity. The screen is moved by a strong, fast-acting tubular motor and comes with a full IR/RF wireless, 12-volt trigger and Ethernet control package.

Screen Material
• Award winning CineWhite 1.1 Gain black backed matte white screen material
• 180 deg. wide-viewing angle
• 4K Ultra HD, Active 3D and HDR Ready
• Tab-tension cords provide uniform flatness on entire projection surface
• Standard 8" top drop

Design and Installation
• Disappearing recessed in-ceiling design for non-dedicated media rooms
• Aluminum housing with white finish (RAL9003) is strong and moisture resistant
• Integrated ceiling projection screen ships fully assembled, ready to install
• Installation kit included for above or below ceiling

Control System
• Internal Radio Frequency/Infrared receivers with IR, RF remotes included
• Low voltage 3-way wall switch and in-wall RJ45 module included
• Standard 5-12 volt trigger to synchronize screen operation with the projector's power cycle

Quality and Reliability

• ETL, FCC, CE, CB GOSTCE & ISO9001:2008
• Conforms to UL 2043 - Plenum Rated: Suitable for air-handling spaces

Elite Screens Evanesce Tab-Tension Features

  • 120-inch Diagonal, 4:3 Aspect Ratio. View Size: 72.0" H x 96.0" W. Overall Size: 96.0" H x 111.4" W x 5.8" D. Extra 8-inch Drop. White Case.
  • Screen Material: CineWhite, 1.1 Gain. 4K Ultra HD and Active 3D Projection Ready. Features 160 degree viewing angle with fully black backed front projection screen material. Mildew resistant, and easy to clean with soap and water. Compatible with Standard, Short Throw, UHD/HD projectors.
  • Tab-tension cords provide uniform flatness on entire projection surface. The tubular motor operates swiftly, and black masking borders enhance picture contrast.
  • Includes installation kit, infrared (IR) & radio frequency (RF) remotes, 3-way position wall switch, and standard 5-12 volt trigger.
  • 2-Year / 3-Year ENR-G, Manufactures Warranty by Elite Screens' an ISO9001 manufacturer since 2004 and Lifetime Tech Support by Email, Web Chat or Toll Free Phone Call by Elite's Professional Service Team.

Key Features

  • In-Ceiling Mount TabTension

What's in the box:

  • IR Remote
  • RF Remote
  • 3 Way Wall Switch
  • 12 V Trigger
  • IR Extended "Eye " Receiver
  • Bubble Level
