This item is no longer available.
Review Summary
AcousticPro UHD
100 / 95" (254 / 241.3cm)
100": 16:9
95": 2.35:1
Wall and Ceiling
Motorized
1
Black
180 Degree (90 Degree L/R)
Complies with NFPA 701 Standards
-2.36dB
100": 49 x 87.2" (124 x 221.5cm)
95": 37.2 x 87.2" (94.4 x 221.5cm) (View area)
47.5 lbs (20.7kg)
848448018443

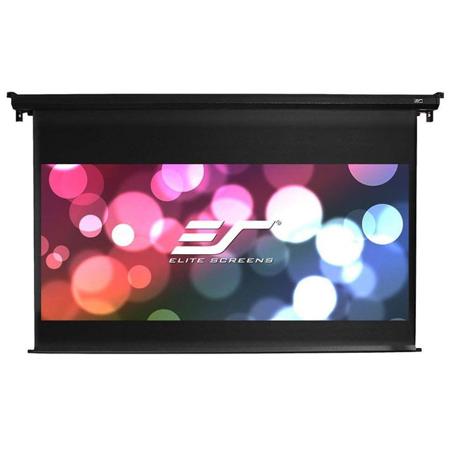

The VMAX Dual Series is an electric projection screen with alternating 16:9/2.35:1 aspect ratio options. The product comes fully equipped with mounting brackets in addition to an RF and 12V trigger control kit.
The VMAX Dual offers a professional grade surface to match the abilities of anamorphic projectors. Anamorphic is the ability for a projector to switch from one aspect ratio (screen shape) to another in accordance with the type of presentation being shown. The VMAX Dual utilizes a front projection material and is compatible with all standard throw Home Cinema projectors. The AcousticPro UHD material is designed to complement in-wall speakers while allowing sound to pass through the material with minimal attenuation.
Design and Installation
Rectangular housing is durable and moisture resistant
Wall or Ceiling installation options
12mm distance between screen materials negates depth of focus distortion
Dual motors for each screen panel
Constant Image Width
Control System
Radio Frequency (RF) wireless remote control operation with separate 16:9 and 2.35:1 buttons
Wireless 5-12v trigger enables (16:9 default) drop/rise operation to synchronize with the projector's power cycle
Alternating 16:9 (HDTV) and 2.35:1 (Cinemascope) projection materials
Quality and Reliability
Synchronous motors allow a silent operation with extended operational longevity
Low power consumption
GREENGUARD and GREENGUARD Gold Certified | UL2818
AcousticPro UHD
The AcousticPro UHD (ultra-high definition) is a moire-free self-supported acoustically transparent front projection screen material. The dense synthetic perforated weave is compatible with Ultra-High Definition/4K resolutions while mitigating light penetration for a brighter picture. The AcousticPro UHD design maximizes sound penetration with minimal attenuation without compromising picture quality. The AcousticPro UHD material's wide diffusion uniformity offers a broad viewing angle with superb picture quality across the entire surface.This provides equal brightness levels on or off axis.
Screen Material
Gain: 1.0
Viewing Angle: 180 Degree (90 Degree L/R)
Moire-free perforated weave acoustically transparent material
Wide diffusion uniformity - maintains luminance levels throughout entire surface
Mildew Resistant
4K UHD, Active 3D, and HDR ready
Mean Attenuation: -2.36dB
Flame Retardant: Complies with NFPA 701 Standards
