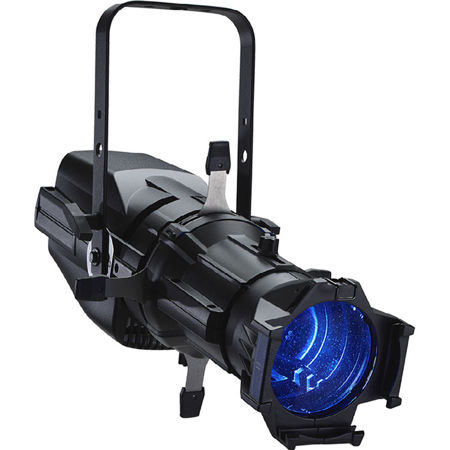

Electronic Theatre Controls Colorsource Spot RGB-L LED Light Engine with Shutter Barrel

SKU: ET7413A1001 MFR: 7413A1001

Key Features

  • Achieve vibrant stage lighting with the Colorsource Spot RGB-L LED light engine.
  • Enjoy superior color mixing and control using this DMX-enabled LED spotlight.
  • Create dynamic effects with the included shutter barrel for precise light shaping.
  • Benefit from long-lasting performance with a 20,000-hour LED life expectancy.
  • Easily customize lighting setups with 12 presets on this ETC lighting fixture.
  • Rely on robust power linking for up to 10 units, simplifying your light setup.
See More Product Details
Special Order?Estimated to Ship: 09/06/2025
Calculate Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electronic Theatre Controls Colorsource Spot Specifications

  • Light Source

    60 x Luxeon Rebel LED emitters (RGB-L: red, green, blue, lime)

  • Life Expectancy

    20,000-hour LED life (20,000 hours to 70% intensity)

  • Display/Controls

    3-button, 7-segment display
    12 x customizable presets (local control)
    5 x sequences (local control)

  • Protocols

    DMX512, RDM

  • DMX Channel Modes

    1 x Mode: 5 channels
    DMX Profile: intensity, red, green, blue, strobe (IRGBS)

  • DMX Connectors

    1 x XLR 5-pin DMX input
    1 x XLR 5-pin DMX thru

  • Power

    100 to 240 VAC, 50/60 Hz (universal)

  • Power Connectors

    1 x powerCON input
    1 x powerCON output

  • Power Linking

    10 x units (per circuit)

  • Power Consumption

    100 VAC (RGB Full): 148 W, 1.48 A
    120 VAC (RGB Full): 147 W, 1.24 A
    230 VAC (RGB Full): 141 W, 0.65 A

  • Inrush Current

    120 VAC: 28 A
    240 VAC: 46 A

  • Ambient Operating Temperature

    32 Degree to 104 Degree F (0 Degree to 40 Degree C)

  • Cooling Fan

    Yes

  • IP Rating

    IP20 - indoor use

  • UL Listing

    UL1573

  • Housing

    Die-cast, all-metal

  • Dimensions

    23.33 x 13.36 x 26.44" (59.3 x 33.9 x 67.2cm)

  • Weight

    17 lb (7.7kg)

About Electronic Theatre Controls Colorsource Spot

Enhance your theatrical productions with the ETC ColorSource Spot RGB-L LED Light Engine with Shutter Barrel, a superior lighting solution that outshines other four-color LED profiles. This innovative spotlight leverages ETC's extensive expertise in color-mixing, utilizing a precise blend of red, green, blue, and lime emitters to deliver brighter, richer, and more authentic colors than other budget LED leko fixtures.

Designed for versatility, the ColorSource Spot is compatible with all Source Four LED accessories, including zoom and fixed-focus lens tubes, as well as CYC and Fresnel adapters. It's available in Original, Deep Blue, and Pearl array options, providing a range of color choices to suit your specific lighting needs.

When it comes to brightness, the ColorSource Spot sets the standard, offering unparalleled lumens per dollar. It's designed to integrate seamlessly with the DataTrack Backbone, a robust track lighting solution that enables the use of full-sized colored LED spotlights in track lighting installations. This makes it an ideal choice for high-bay installations or design applications that require more lumens.

For more conventional hanging options, explore ETC's standard theatrical solution with the ColorSource Raceway, or fully customize your installation with ETC Power Distribution. You can also consider the raising and lowering options available with a comprehensive package of ETC Rigging solutions.

Whether you're lighting a house of worship, university, school, studio, hospitality venue, retail space, exhibition center, meeting room, or club, the ETC ColorSource Spot RGB-L LED Light Engine with Shutter Barrel delivers the reliable, durable, and versatile lighting performance you need.

Electronic Theatre Controls Colorsource Spot Features

  • Variable white light using 2700 K and 6500 K LEDs
  • Simple user interface with seven-segment display powerCON in and thru
  • DMX/RDM in and thru (5-pin XLR or RJ45)
  • Optically calibrated
  • Tour-ready, aluminum housing

Key Features

  • Achieve vibrant stage lighting with the Colorsource Spot RGB-L LED light engine.
  • Enjoy superior color mixing and control using this DMX-enabled LED spotlight.
  • Create dynamic effects with the included shutter barrel for precise light shaping.
  • Benefit from long-lasting performance with a 20,000-hour LED life expectancy.
  • Easily customize lighting setups with 12 presets on this ETC lighting fixture.
  • Rely on robust power linking for up to 10 units, simplifying your light setup.

What's in the box:

  • Colorsource Spot RGB-L LED Light Engine with Shutter Barrel
  • Hanging Yoke
  • 1.5m Power Cable
  • Soft-Focus Diffuser in Gobo Holder
  • Gel Frame
  • Electronic Theatre Controls 5 Year Limited Warranty on Fixtures & 10 Year Limited Warranty on LED Array
