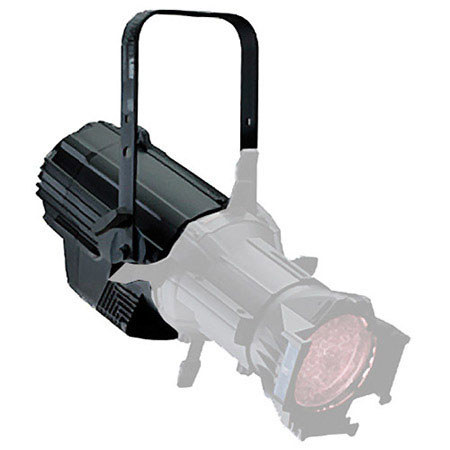

Electronic Theatre Controls ETC Source Four Tungsten LED Light Engine without Lens Tube, 100-240VAC, Black

SKU: ET7460A1061 MFR: 7460A1061

Key Features

  • Achieve superior stage lighting with this ETC Source Four LED light engine!
  • Enjoy 50,000 hours of reliable LED performance, reducing lamp replacement costs.
  • This PAR spotlight offers vibrant 3,000K color temperature for stunning visuals.
  • Customize your lighting with interchangeable lens tubes for varied beam angles.
  • Easily mount this durable, die-cast metal fixture with the included C-clamp.
  • Control your LED stage lighting via DMX 512 for precise, professional shows.
See More Product Details
Special Order Item?Estimated to Ship: 08/20/2025
Calculate Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electronic Theatre Controls Source Four Tungsten LED Light Engine without Tube Specifications

  • Light Source

    60 Luxeon Rebel LED emitters

  • Lamp Life

    50,000 hours

  • Material

    Die-cast all-metal housing

  • Mounting

    M12 hole with C-clamp, safety cable optional

  • Yoke

    Twin flat blade steel fork, 2 mounting positions

  • Compatibility

    All ETC Source Four Interchangeable lens tubes: 5deg.,10deg., 14deg., 19deg., 26deg., 36deg., 50deg., 70deg. and 90deg. field angles as well as 19deg., 26deg., 36deg. and 50deg. EDLT lenses

  • Color Temperature

    3,000K

  • Color Accuracy

    CRI: 86, CQS: 86, Color fidelity: 86, Duv: 0.001

  • DMX 512 Connectors

    Yes

  • Power Requirements

    100 to 240VAC 50/60 Hz

  • Operating Temperature

    -4deg. to 104deg.F (-20deg. to 40deg.C)

  • Weight

    Approximately 14.3 lbs (6.48 kg)

4 Accessories for Electronic Theatre Controls ETC Source Four Tungsten LED Light Engine without Lens Tube, 100-240VAC, Black

  • All Accessories (4)
  • DJ Lighting (4)Required Item

About Electronic Theatre Controls Source Four Tungsten LED Light Engine without Tube

The Source Four LED line is the result of the marriage of the Source Four and Desire product lines yielding the control of a Source Four with color control of the Desire fixture. This ETC Source Four Tungsten LED Light Engine without Lens Tube (100-240VAC, Black) is comprised of the light engine and shutter barrel. It is not a complete fixture, requiring a lens barrel for use. The light engine/shutter barrel is compatible with all ETC Source Four interchangeable lens tubes. For optimal results the updated LED 50deg. tube is suggested.

Among the many benefits of the light engine are multiple control options via DMX, superior color rendition, multi-voltage operation and long (50,000 hour) lamp life.

Electronic Theatre Controls Source Four Tungsten LED Light Engine without Tube Features

  • 60 Luxeon Rebel LED emitters
  • Multiple dimming curve options
  • Preset colors and sequences for stand-alone (no console required) operation
  • White point selection - white light and color behavior based on a specific color temperature white light, i.e. 3200K, 5600K, etc
  • Loss of data behavior options - instant off, hold last look for two minutes, etc
  • Output modes - three output options that offer the user a choice between maximum output and maximum consistency
  • DMX512 in/thru via five-pin XLR connectors
  • Up to nine fixtures can be linked via power in/thru connectors
  • Multiple control options including RGB, strobe and console-free Master/Slave mode
  • 15-bit virtual dimming engine provides smooth, high quality theatrical fades and minimizes color shift during dimming
  • RDM functionality for address and setting changes
  • Thermally insulated rear handle, knobs and shutter handles make handling and aiming easier; gels, patterns and shutters last longer and your performance space stays cooler
  • Die-cast aluminum construction, 20 gauge stainless steel focusing shutters
  • Tool-free lamp centering and peak/flat adjustment knobs are built in
  • Functions with 110-240 AC voltage
  • User-friendly control interface with multiple modes and fixture settings
  • Positive locking Double-clutch fixture body
  • Neutrik power in and thru connections
  • Active electronic thermal management for droop-free operation
  • Quiet fan cooling. Fixture is designed for continuous operation up to 104deg.F (40deg.C) ambient temperature and requires free flow of air around fixture housing
  • Can use all ETC Source Four Interchangeable lens tubes: 5deg., 10deg., 14deg., 19deg., 26deg., 36deg., 50deg., 70deg. and 90deg. field angles as well as 19deg., 26deg., 36deg. and 50deg. EDLT lenses. Best used with redesigned LED 50deg. tube

Product Documents

User Manual

Key Features

  • Achieve superior stage lighting with this ETC Source Four LED light engine!
  • Enjoy 50,000 hours of reliable LED performance, reducing lamp replacement costs.
  • This PAR spotlight offers vibrant 3,000K color temperature for stunning visuals.
  • Customize your lighting with interchangeable lens tubes for varied beam angles.
  • Easily mount this durable, die-cast metal fixture with the included C-clamp.
  • Control your LED stage lighting via DMX 512 for precise, professional shows.

What's in the box:

  • ETC Source Four Tungsten LED Light Engine without Lens Tube
  • 400CC C Clamp for Source 4 Ellipsoidal Spotlights
  • ETC Warranty
