Electronic Theatre Controls Element 2 Console with 1024 Outputs
SKU: ETC4331A1011
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
Q&A

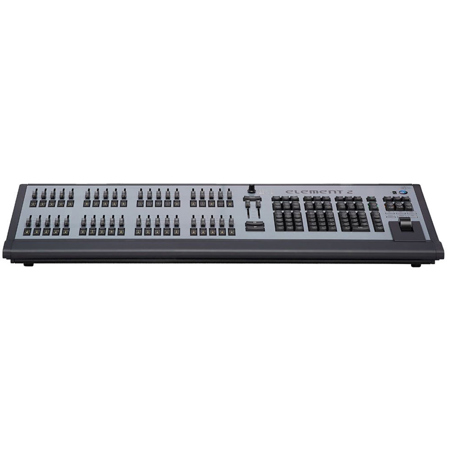

About Electronic Theatre Controls Element 2
Designed for venues using primarily conventional lighting, the Element 2 control console provides the powerful features of the Eos system in an economical and simplified package. In addition to keypad commands, True LTP Channel Faders provide hands-on control of intensity and can be used to set manual levels and edit recorded cues and submasters.
Moving Light Controls are available to facilitate the use of conventional accessories like moving mirror heads, color scrollers or gobo rotators, or to make controlling small numbers of moving lights simple and direct. Element 2 can be backed up by another Element 2, ETCnomad 6144 or ETCnomad Puck 6144 mini-computer.
Electronic Theatre Controls Element 2 Features
- 1,024 outputs
- 32,768 control channels (any number from 1 - 99,999)
- Up to 99 discrete users
- Partitioned control
- Master playback pair with 100mm faders
- 40 45mm faders x 100 pages for configurable faders, for channel, submaster and palette/preset, timing and effect master playback control
- User-definable direct selects
- Four discrete palette types (IFCB)
- Presets function as "all palette"
- Effects provide dynamic relational and absolute progressive behavior
- Central information area (CIA) accesses the browser and other controls
- Configurable high-density channel display, with format and flexi-channel modes
- Up to six abstract color spaces, tinting, spectrum and fade path tools
- User configurable, interactive Magic Sheets
- ETCNet2 and Net3 (powered by ACN), Art-Net and Avab UDP network output protocols
- Show import from Obsession, Express, Expression, Emphasis, Congo, Cobalt, Grand MA1, Grand MA2, Safari and Strand 500/300 Series
- Two individually configurable Ethernet ports
- Multiple MIDI and/or SMPTE TimeCode Inputs, Analog/Serial Inputs, OSC transmit/recieve
- Virtual Media Server function for pixel mapped effects, images, animations
- Support for multiple languages, including English, German, Spanish, French, Italian, Japanese, Korean, Russian and Chinese (Simplified and Traditional)
