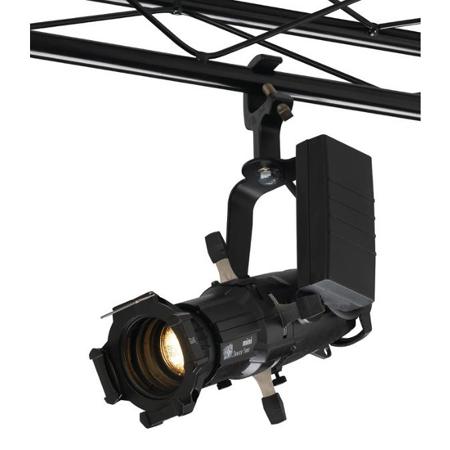

Electronic Theatre Controls Source Four Mini LED Portable 50 Degree Lighting Fixture, Black

SKU: ETC4M50L MFR: ETC 7063A1346

Key Features

  • Enhance your stage presence with this portable LED spotlight for vibrant lighting effects.
  • Achieve professional-grade DJ lighting with a mini fixture, perfect for mobile setups.
  • Create stunning visuals with the 50-degree lens, ideal for highlighting key performers.
  • Enjoy long-lasting performance with a 35,000-hour LED lamp, reducing maintenance costs.
  • Customize your lighting with gobo patterns, adding unique textures to any performance.
  • Easily mount this lightweight fixture with the included C-clamp for secure placement.
See More Product Details
Special Order Item?Estimated to Ship: 08/19/2025
Calculate Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electronic Theatre Controls Source Four Mini LED Specifications

  • Rotating Shutter Assembly

    +/-175 deg.

  • Input voltage

    90-135V, 50/60Hz
    190-250V, 50/60Hz

  • Power at full intensity

    12W typical, 14W max

  • Inrush (first half-cycle)

    120V: <1A
    240V: <1A

  • Long Life Lamp

    35,000 hours L70 lumen maintenance

  • Thermal

    0 to 40 deg. C (32 to 104 deg. F)

  • Field Lumens

    517

  • Beam Lumens

    369

  • Beam Angle

    41.4 deg.

  • Field Angle

    50.6 deg.

  • Candela

    1384

  • Lumens Per Watt

    39.1

  • Throw Distance

    10' (3.05m):
    Field Diameter: 9.5' (2.9m), Illuminance (FC): 14, Illuminance (LUX): 149

    15' (4.57m):
    Field Diameter: 14.2' (4.3m), Illuminance (FC): 6, Illuminance (LUX): 66

    20' (6.10m):
    Field Diameter: 18.9' (5.8m), Illuminance (FC): 3, Illuminance (LUX): 37

    30' (9.14m):
    Field Diameter: 23.6' (7.2m), Illuminance (FC): 2, Illuminance (LUX): 24

  • Weight

    2.7lbs (1.22kg)

About Electronic Theatre Controls Source Four Mini LED

Experience the power and versatility of the Source Four Mini LED Portable 50 Degree Lighting Fixture in Black. This compact yet robust lighting solution from ETC is designed to deliver superior performance in a variety of settings, from stage productions to retail stores and restaurants.

Despite its small size, the Source Four Mini LED boasts the same crisp optics, user-friendly functionality, and sleek aesthetics as its full-sized counterpart. It's surprisingly bright, offering crystal-clear image projection and a bright, even field of light.

Constructed from rugged, die-cast A380 grade aluminum, this fixture is built for durability. Its high-temperature, fine-texture powder-coated paint further enhances its resilience. The fixture also features a steel yoke with a 0.406" diameter mounting hole, allowing for easy installation on a lighting truss or other support structure.

The Source Four Mini LED offers four interchangeable lens tubes, providing a selection of 19, 26, 36, and 50-degree field angles. This feature, combined with its uniquely efficient optical system and effective heat dissipation using a dichroic reflector, ensures a cool and adjustable beam.

The fixture is equipped with a long-life, dimmable white LED source, and three-plane shutters for precise control. It also includes a range of accessories for color, pattern, and filtering, offering endless possibilities for creative lighting design.

The rotating shutter assembly allows for +/-175 degrees of movement, and the fixture includes an E-Size gobo pattern holder. The fixture also features high-impact resistant, thermally insulated knobs and shutter handles for safe and comfortable operation.

The Source Four Mini LED comes with a yoke-mounted LED driver in a color-matched enclosure, a miniature C-clamp for mounting, and a 6'6" power cable with a NEMA 5-15P connector. It's also equipped with dual captive accessory slots for a 2.75" media frame, further enhancing its versatility.

Designed for efficiency, the fixture operates at full intensity with a power consumption of just 12W to 14W. It's also dimmable, offering forward and reverse phase control. The Cree LED lamp, available in 80+ and 90+ CRI, provides a long life of 35,000 hours L70 lumen maintenance and a standard color temperature of 3000K.

Whether you're lighting a museum, a theater, or a retail store, the Source Four Mini LED Portable 50 Degree Lighting Fixture in Black is a compact, versatile, and high-quality choice.

Electronic Theatre Controls Source Four Mini LED Features

  • Compact yet powerful LED lighting fixture, perfect for stage productions, retail stores, and restaurants
  • Durable construction with rugged, die-cast A380 grade aluminum and high-temperature, fine-texture powder-coated paint
  • Versatile lighting options with four interchangeable lens tubes and adjustable beam edge
  • Long-life, dimmable Cree LED source with 35,000 hours L70 lumen maintenance
  • User-friendly functionality with high-impact resistant, thermally insulated knobs and shutter handles
  • Includes a range of accessories for color, pattern, and filtering, and dual captive accessory slots for a 2.75" media frame

Product Documents

User Manual

Key Features

  • Enhance your stage presence with this portable LED spotlight for vibrant lighting effects.
  • Achieve professional-grade DJ lighting with a mini fixture, perfect for mobile setups.
  • Create stunning visuals with the 50-degree lens, ideal for highlighting key performers.
  • Enjoy long-lasting performance with a 35,000-hour LED lamp, reducing maintenance costs.
  • Customize your lighting with gobo patterns, adding unique textures to any performance.
  • Easily mount this lightweight fixture with the included C-clamp for secure placement.

What's in the box:

  • Electronic Theatre Controls Source Four Mini LED Portable 50 Degree Lighting Fixture
  • E-Size Gobo Pattern Holder
  • Gel Media Frame
  • Miniature C-Clamp Mounting
  • Electronic Theatre Controls 2 Year Warranty
