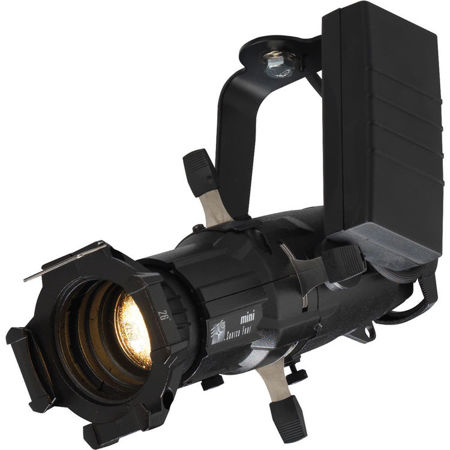

Electronic Theatre Controls Source Four Mini Portable LED, 26 Degree, Black
See all Electronic Theatre Controls items

Electronic Theatre Controls Source Four Mini Portable LED, 26 Degree, 3000 K Color Temperature, Black

SKU: ETC7063A1041 MFR: 7063A1041
Be the first to review this itemAsk a Question

Key Features

  • Enhance your displays with this ETC Source Four Mini LED spotlight's adjustable beam.
  • Achieve the perfect ambiance with the 3000K color temperature LED spotlight.
  • This portable LED spotlight is ideal for retail, museums, and restaurant lighting.
  • Enjoy precise lighting control with the rotating shutter of this ETC spotlight.
  • Easily mount this mini LED spotlight using the included C-clamp for secure placement.
  • Experience superior light quality with a bright 70-lumen output LED spotlight.
See More Product Details
Special Order?Estimated to Ship: 08/15/2025
Calculate Shipping

See Options

Add to List

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Electronic Theatre Controls Source Four Mini Specifications

  • Venue Compatibility

    Museums
    Retail stores
    Restaurants
    Lobbies
    Labs
    Theaters

  • Material

    Steel, aluminum, polymer

  • Light Source

    Cree LED

  • Color Temperature

    3000 K

  • CRI

    80+

  • Rating

    70 Lumens

  • Beam Angle

    26 deg.

  • Focusing

    Beam edge continually adjustable hard to soft

  • Adjustments

    Rotating shutter: +/-175 deg.

  • Dimmer

    Yes

  • Mounting

    C-Clamp

  • Yoke

    Steel yoke with 0.406" (10.31mm) diameter mounting hole

  • Cable

    3' (0.91m) power cable with NEMA 5-15P (3-Prong NA/US) Connector

  • Operating Temperature

    32 to 104 deg. F (0 to 40 deg. C)

  • Power Requirements

    90-135 VAC, 50/60 Hz, 3 A

  • Power Consumption

    12W Typical, 14WmAx

  • Approvals

    UL/cUL153

  • Photometric

    Field lumens: 490
    Beam lumens: 399
    Beam angle: 22.6 deg.
    Field angle: 26.8 deg.
    Candela: 4,440
    Lumens per watt: 37.1

  • Photometric (lux)

    478 lux at 10' (3.0m) with a field diameter of 4.8' (1.5m)
    212 lux at 15' (4.6m) with a field diameter of 7.1' (2.2m)
    119 lux at 20' (6.1m) with a field diameter of 9.5' (2.9m)
    76 lux at 25' (7.6m) with a field diameter of 11.9' (3.6m)

  • Photometric (fc)

    44 fc at 10' (3.0m) with a field diameter of 4.8' (1.5m)
    20 fc at 15' (4.6m) with a field diameter of 7.1' (2.2m)
    11 fc at 20' (6.1m) with a field diameter of 9.5' (2.9m)
    7.0 fc at 25' (7.6m) with a field diameter of 11.9' (3.6m)

  • Dimensions

    9.69 x 5.25 x 9.87" (24.61 x 13.34 x 25.07cm)

  • Weight

    2.7 lbs (1.22kg)

  • UPC Code

    192223054332

About Electronic Theatre Controls Source Four Mini

Big Source Four attitude Small size
Good things come in small packages. The Source Four Mini is everything you expect from the Source Four brand - ease of use, superior optics, crystal-clear image projection and a bright, even field - but packaged in a tiny fixture that's just one-third the size of a traditional Source Four. A mere nine inches long and available in both tungsten and LED, the Source Four Mini can go anywhere: museums, retail outlets, restaurants, light labs, children's theaters and other small scale installations where size matters.

The Source Four Mini is available in four field angles: 19 deg. , 26 deg. , 36 deg. and 50 deg. , with a 2.5" diameter lens. It comes in a portable version with a miniature C-clamp. All Source Four Mini models include an E-sized pattern holder and a gel media frame, with a range of additional accessories.

Electronic Theatre Controls Source Four Mini Features

  • Yoke-mounted 12V transformer or LED driver in color-matched case
  • Miniature C-clamp included
  • 3' power cable with NEMA 5-15P connector
  • Rugged die-cast aluminum construction
  • Three-plane stainless-steel shutter blade assembly
  • Tool-free lamp replacement
  • Insulated rear handle
  • Portable versions
  • E-size pattern holder
  • Gel media frame
  • Available in 12W LED (35,000-hour life)

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Enhance your displays with this ETC Source Four Mini LED spotlight's adjustable beam.
  • Achieve the perfect ambiance with the 3000K color temperature LED spotlight.
  • This portable LED spotlight is ideal for retail, museums, and restaurant lighting.
  • Enjoy precise lighting control with the rotating shutter of this ETC spotlight.
  • Easily mount this mini LED spotlight using the included C-clamp for secure placement.
  • Experience superior light quality with a bright 70-lumen output LED spotlight.

What's in the box:

  • Electronic Theatre Controls Source Four Mini Portable LED
  • Gobo Pattern Holder (E Size)
  • Color Frame
  • Miniature C-Clamp
  • Electronic Theatre Controls 2 Year Limited Warranty
