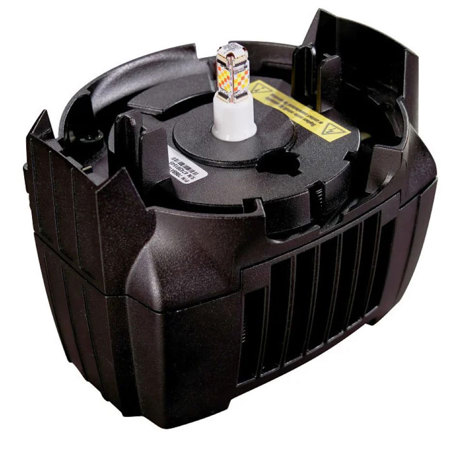

Electronic Theatre Controls Source 4WRD Color II RGBA LED Retrofit Module, Black

SKU: ETC7068A1011 MFR: 7068A1011-B

Key Features

  • Upgrade your stage lighting with this RGBA LED retrofit module for vibrant color mixing.
  • Achieve precise color temperature control (2200-6500 K) for perfect stage ambiance.
  • Enjoy flicker-free operation with camera flicker control, ideal for broadcast applications.
  • Easily control your lighting setup via DMX for seamless integration with consoles.
  • Save energy with a low wattage LED module, reducing your lighting power consumption.
  • Benefit from long-lasting performance with a 60,000+ hour L70 rating for reliability.
See More Product Details
Special Order?Estimated to Ship: 08/14/2025
Calculate Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electronic Theatre Controls Source 4WRD Color II Specifications

Source
  • LED details

    Nichia LEDs

  • Max lumens (26 EDLT)

    Full On: 6,042
    3200 K: 5,051
    5600 K: 5,687

  • Lumens per watt

    Full On: 42.2
    3200 K: 46.3
    5600 K: 45.9

  • L70 rating

    >60,000 hours (hours to 70% output)

  • Colors used

    RGBA (Red, Green, Blue, and Amber)

  • Color temperature range

    2200-6500 K

  • Calibrated array

    Yes

  • Red shift

    No

Optical

Jump to...
  • Field angle range

    Swappable lens tubes between 5-90 degrees

  • Gate size

    79 mm

  • Aperture size

    Lens dependent

  • Pattern projection

    Yes

  • Pattern size

    A or B (see manual)

  • Camera flicker control/Hz range

    Yes, 1.2 kHz and 20 kHz

Control

Jump to...
  • Input method

    DMX Control

  • Protocols

    DMX / RDM via RJ45

  • Modes (Footprint)

    1 (1- Intensity, 2- Red, 3- Green, 4- Blue, 5- Amber, 6- Strobe)

  • RDM configuration

    Yes

  • UI type

    7-segment address display

  • Local control

    Yes

  • Onboard presets

    Yes, 12

  • Onboard sequences

    Yes, 5

  • Onboard effects

    No

  • FixtureLink support

    Yes

Electrical

Jump to...
  • Voltage range

    100-240 V (50-60 Hz) (not dimmable)

  • Input method

    Hardwired, 1 m cord, bare end or various connector options (120 V) Hardwired, 1 m cord, bare end (240 V)

  • Inrush

    32 A (first half-cycle) at 120 V
    60 A (first half-cycle) at 240 V

  • Fixtures per circuit

    120 V: 10 (20 A switched circuit, R20 module or similar)
    240 V: 10 fixtures per non-dimmed circuit (ER15AFR module)

  • Wattage (Typical/Standby)

    146 W / 3.0 W (120 V)
    143 W / 2.9 W (240 V)

  • Current draw

    1.25 A at 120 V
    0.67 A at 240 V

Thermal

Jump to...
  • Ambient operating temp

    41 Degree -104 Degree F (5 Degree -40 Degree C)

  • Fan (controllable)

    Yes (no)

  • Droop compensation

    No

  • dB range

    27 dBA (average at 1 m)

  • BTUs/hour

    458 (120 V)
    449 (240 V)

Regulatory and Compliance

Jump to...
  • Approved regulatory standards

    UL 1573 (complete luminaire)
    UL 1598C (retrofit kit)
    CSA C22.2 No. 166 (complete luminaire)
    CSA TIL B79-A (retrofit kit)
    CE Compliant
    UKCA Compliant

Physical

Jump to...
  • Color

    Black

  • Materials

    Cast aluminum

  • Mounting options

    Yoke

  • IP rating

    IP20, indoor only

  • Dimensions (H x W x D)

    5.59 x 7.00 x 6.29" (142 x 178 x 160mm)

  • Weight

    Retrofit: 3.6 lbs (1.63kg)

About Electronic Theatre Controls Source 4WRD Color II

Overhaul your existing lighting setup with the Source 4WRD Color II RGBA LED Retrofit Module in sleek black. This innovative product from the renowned brand, Electronic Theatre Controls (ETC), is a game-changer in the world of stage lighting. It effortlessly transforms your traditional Source Four incandescent profile into a high-quality RGBA LED fixture, opening up a universe of additive color mixing, vibrant washes, and rapid color transitions.

This durable and reliable LED retrofit module allows you to achieve a wider range of stage aesthetics with fewer fixtures, all while conserving energy. Say goodbye to the hassle of changing lamps or replacing burned-out gel. This module offers a simple, non-destructive upgrade that can be completed in less than five minutes.

The Source 4WRD Color II operates on switched power, ranging from 100-240 VAC, and features DMX dimming capabilities. It's an ideal choice for a variety of applications, including energy-saving retrofits, houses of worship, educational institutions, hospitality venues, retail spaces, exhibition centers, meeting rooms, clubs, and theaters.

Designed to convert any full-size Source Four incandescent fixture into an LED fixture in mere seconds, this stylish module can lend a splash of color to any space. It offers millions of color options with the same reliable fixtures you've trusted for years.

For added convenience, the Source 4WRD Color II provides both DMX and local control. It features DMX In and Thru, along with 12 built-in color presets and 5 built-in sequences for standalone operation. Upgrade your lighting with the Source 4WRD Color II RGBA LED Retrofit Module, and experience the future of stage lighting today.

Electronic Theatre Controls Source 4WRD Color II Features

  • New, patented LED array and color mixing system
  • Increased brightness
  • 2x output in red
  • Improved color gamut and uniformity
  • Industry leading warranty and support

Key Features

  • Upgrade your stage lighting with this RGBA LED retrofit module for vibrant color mixing.
  • Achieve precise color temperature control (2200-6500 K) for perfect stage ambiance.
  • Enjoy flicker-free operation with camera flicker control, ideal for broadcast applications.
  • Easily control your lighting setup via DMX for seamless integration with consoles.
  • Save energy with a low wattage LED module, reducing your lighting power consumption.
  • Benefit from long-lasting performance with a 60,000+ hour L70 rating for reliability.

What's in the box:

  • Electronic Theatre Controls Source 4WRD Color II RGBA LED Retrofit Module (Black)
  • Mounting Post
  • Reflector
  • Electronic Theatre Controls 10 Year Limited Warranty
