20% Off

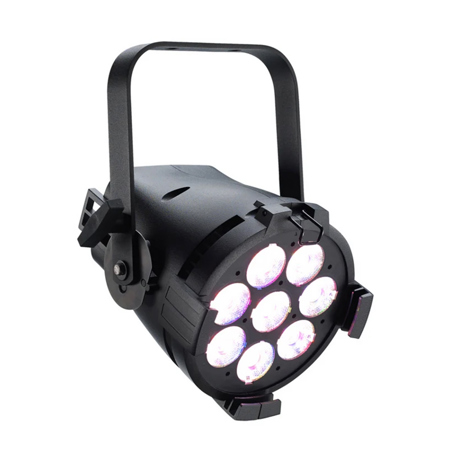

Electronic Theatre Controls Colorsource PAR RGB-L LED Wash Light with Bare End Cable

SKU: ETCCSPARX MFR: CSPAR-X
Earn VIP Reward Points

Key Features

  • Create vibrant stage washes with the Colorsource PAR RGB-L LED wash light, offering exceptional color mixing.
  • This LED fixture's robust, all-metal housing ensures durability for any event or permanent lighting setup.
  • Achieve flicker-free video with adjustable refresh rates, perfect for broadcast or streamed performances.
  • Easily control your lighting via DMX or use onboard presets for quick, stunning light shows on the fly.
  • Enjoy precise color control and consistency with the calibrated LED array, ensuring top-notch light output.
  • Set up is a breeze with the included hanging yoke; floor stand yoke available for versatile placement options.
See More Product Details
Special Order?Estimated to Ship: 09/06/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electronic Theatre Controls ColorSource PAR Specifications

Source
  • LED details

    40 Lucile's LUXEON Z LED

  • Max lumens

    3039

  • Lumens per watt

    28.1

  • L70 rating (hours to 70% output)

    55,000 hours

  • Colors used

    Red, green, blue, lime

  • Color temperature range

    Color mixing

  • Calibrated array

    Yes

  • Red shift

    No

Optical

Jump to...
  • Beam angle range

    15.3 Degree (secondary lenses available for multiple beam-spread options)

  • Aperture size

    7.5" (190mm)

  • Pattern projection

    No

  • Camera flicker control/Hz range

    Default: 1,200Hz
    via RDM: 25,000Hz

Control

Jump to...
  • Input method

    DMX512 via 5-pin XLR connector

  • Protocols

    DMX512/RDM

  • Modes (footprint)

    4 modes

  • RDM configuration

    Yes

  • UI type

    Seven-segment, three-button interface

  • Local control

    Yes

  • Onboard presets

    Yes, 12x

  • Onboard sequences

    Yes, 5x

  • Onboard effects

    No

  • Fixture-to-fixture control

    Yes

  • Notes

    15-bit virtual dimming engine

Electrical

Jump to...
  • Voltage range

    100-240 VAC 50/60Hz

  • Input method

    PowerCON power in and thru

  • Inrush

    35 A at 120 V (First half-cycle)
    49 A at 240 V (First half-cycle)

  • Fixtures per circuit

    9 (15 A power thru connector)
    10 (R20 module or similar)

  • Wattage typical

    90W at 120 V
    89W at 240 V

  • Current draw

    0.75 A at 120 V
    0.40 A at 240 V

Thermal

Jump to...
  • Ambient operating temp

    32 Degree -104 Degree F (0 Degree -40 Degree C)

  • Fan (controllable)

    Yes (No)

  • Droop compensation

    Yes

  • dB range

    24.8 dBA average at 1m

  • BTUs/hour (RGB-L)

    307

Physical

Jump to...
  • Color options

    Black

  • Materials

    Die-cast, all metal housing

  • Mounting options

    Yoke, floor stand yoke (available as an accessory)

  • IP rating

    IP20

  • User interface

    Seven-segment, three-button interface

  • Weight

    8.3 lbs (3.77kg)

About Electronic Theatre Controls ColorSource PAR

Before experiencing the exceptional illumination of the Colorsource PAR RGB-L LED Wash Light with Bare End Cable, discover the unparalleled quality and performance it brings to any setting. This advanced wash fixture, crafted by ETC, stands out in its class by delivering a superior build and vibrant lighting at an accessible price point.

Harnessing the power of ETC's innovative RGB-L color system, the Colorsource PAR produces a rich and bright light that surpasses traditional LED wash lights. Its applications are vast and versatile, making it an ideal choice for a variety of environments, including theaters, performance spaces, houses of worship, universities, schools, hospitality venues, retail spaces, exhibition centers, meeting rooms, clubs, and cafetoriums.

The Colorsource PAR is equipped with homogenized optics, featuring a meticulously balanced mix of red, green, blue, and lime LEDs. This combination ensures the best and brightest color mix possible, enhancing the visual experience with increased color depth and spectral reach. The inclusion of lime in the RGB-L array is a unique feature that sets this fixture apart, allowing for a broader spectrum of colors and more nuanced lighting effects.

Designed with user convenience in mind, the Colorsource PAR features a straightforward user interface. The simple seven-segment display, along with intuitive navigation buttons, facilitates quick setup and easy recall of built-in presets, making it user-friendly for both novices and professionals alike.

Original ColorSource fixtures utilize the RGB-L array, where the 'B' signifies the use of blue LEDs, enabling the fixture to achieve any color within the dark shaded triangle of the color spectrum. This capability ensures that the Colorsource PAR can meet the diverse lighting needs of any application, providing flexibility and creativity in lighting design.

Electronic Theatre Controls ColorSource PAR Features

  • Array: Original RGB-L (Red/Green/Blue/Lime)
  • Homogenized optics
  • Simple user interface with seven-segment display
  • powerCON in and thru
  • 5-pin XLR
  • LED droop compensation
  • Optically calibrated
  • Tour-ready, aluminum housing

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Create vibrant stage washes with the Colorsource PAR RGB-L LED wash light, offering exceptional color mixing.
  • This LED fixture's robust, all-metal housing ensures durability for any event or permanent lighting setup.
  • Achieve flicker-free video with adjustable refresh rates, perfect for broadcast or streamed performances.
  • Easily control your lighting via DMX or use onboard presets for quick, stunning light shows on the fly.
  • Enjoy precise color control and consistency with the calibrated LED array, ensuring top-notch light output.
  • Set up is a breeze with the included hanging yoke; floor stand yoke available for versatile placement options.

What's in the box:

  • Electronic Theatre Controls Colorsource PAR RGB-L LED Wash Light
  • Bare End Cable
  • Hanging Yoke
  • Power Cable
  • Electronic Theatre Controls 5 Year Limited Warranty on Fixtures & 10 Year Limited Warranty on LED Array
