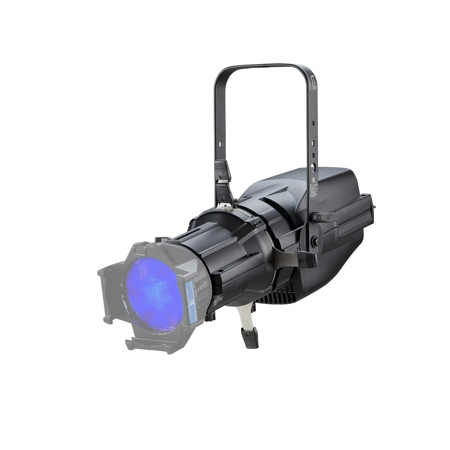

Electronic Theatre Controls ColorSource Spot V Light Engine with Shutter Barrel, Black

SKU: ETCCSSPOTVA MFR: 7423A1011-A

Key Features

  • Create vibrant stage washes with the ColorSource Spot V's superior color mixing.
  • Achieve precise lighting designs using the included shutter barrel for beam shaping.
  • Enjoy long-lasting performance with a 54,000-hour L70 rating on the LED array.
  • Easily control your lighting setup via DMX512 with 5-pin XLR connectivity.
  • Customize your stage presence with swappable lens tubes from 5 to 90 degrees.
  • Benefit from flicker-free operation with a 5,000 Hz refresh rate for cameras.
See More Product Details
Special Order?Estimated to Ship: 08/15/2025
Calculate Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

2 Year

$179.99

3 Year

$249.99

5 Year

$489.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electronic Theatre Controls ColorSource Spot V Specifications

Source
  • LED

    60 Lumileds LUXEON C and LUXEON Rebel LEDs

  • Max lumens

    9498

  • Lumens per watt

    48

  • L70 rating (hours to 70% output)

    54,000 hours

  • Colors used

    Red, green, blue, indigo, lime

  • Color temperature range

    Color mixing

  • Calibrated array

    Yes

  • Red shift

    No

Optical

Jump to...
  • Beam angle range

    Swappable lens tubes, 5-90 degrees

  • Gate size

    80mm

  • Aperture size

    6.25-14" (depending on lens tube)

  • Pattern projection

    Yes

  • Pattern size

    A or B

  • Camera flicker control/Hz range

    5,000 Hz (default) and 25,000 Hz (via RDM)

Control

Jump to...
  • Input method

    DMX512 via 5-pin XLR connector

  • Protocols

    DMX512/RDM

  • Modes (footprint)

    4 modes, see page 4

  • RDM configuration

    Yes

  • UI type

    Seven-segment, three-button interface

  • Local control

    Yes

  • Onboard presets

    Yes (12)

  • Onboard sequences

    Yes (5)

  • Onboard effects

    No

  • FixtureLink

    Yes

Wireless

Jump to...
  • Band

    2.400-2.480 GHz

  • Range

    100m indoors, 500m line of sight (subject to conditions)

  • Max receivers

    DMX: No limit
    RDM: Varies by transmitter used
    Multiverse SHoW Baby: 585
    Multiverse Transmitter: 5,000

  • Broadcast power

    100 mW

Electrical

Jump to...
  • Voltage range

    100-240 VAC 50/60 Hz

  • Input method

    powerCON TRUE1 TOP power in and thru

  • Inrush

    55 A at 120 V (First half-cycle)
    59 A at 240 V (First half-cycle)

  • Fixtures per circuit

    8 fixtures (R20 module or similar)

  • Wattage typical/standby

    199 W / 2 W at 100 V
    197 W / 2 W at 120 V
    194 W / 2 W at 240 V

  • Current draw typical/standby

    2 A / 0.07 A at 100 V
    1.65 A / 0.08 A at 120 V
    0.90 A / 0.10 A at 240 V

Thermal

Jump to...
  • Ambient operating temp

    32 Degree -104 Degree F (0 Degree -40 Degree C)

  • Fan (controllable)

    Yes (yes)

  • Droop compensation

    Yes

  • dB range

    24.4 dBA average at 1m

  • BTUs/hour

    672

Regulatory and Compliance

Jump to...
  • Approved regulatory

    Standards
    cETLus Listed
    Conforms to UL 1598 Listed
    Conforms to UL 924 Listed
    Certified to CSA C22.2 No. 250 Listed
    Certified to CSA C22.2 No. 141 Listed
    CE, UKCA, RCM, and CCC Compliant

Physical

Jump to...
  • Color

    Black

  • Materials

    Die-cast, all metal housing

  • Mounting options

    Yoke

  • IP rating

    IP20

  • Weight

    Without lens: 17 lbs (7.7kg)

About Electronic Theatre Controls ColorSource Spot V

If you're seeking a high-quality LED luminaire that offers a rich color spectrum, superior brightness, and cutting-edge technology at an affordable price, look no further than the ColorSource Spot V Light Engine with Shutter Barrel in Black. This exceptional lighting solution, crafted by industry-leading experts, is renowned for its quality spot fixtures.

The ColorSource Spot V features a unique five-color array, including red, green, blue, indigo, and lime. This diverse color palette allows you to achieve bold, saturated hues like indigo and red, as well as soft pastels for stunning skin tone rendering, all from a single array.

The unit comes with a powerCON True1 TOP connector, ensuring a secure connection that can be detached even under load. For a more streamlined setup, the ColorSource Spot V offers wireless functionality with Multiverse, providing up to 10 universes of wireless DMX/RDM control. This feature allows you to scale your wireless systems beyond what you thought was possible.

The ColorSource Spot V doesn't compromise on brightness, delivering next-level luminosity without sacrificing color quality. It also supports mobile configuration via NFC from your device when used with ETC's free Set Light app. This allows you to set the fixture properties even when the fixture isn't powered on, making fixture hang and configuration more efficient.

The ColorSource Spot V is factory-calibrated to ensure color consistency over time. Its built-in thermal management algorithms ensure that the colors you select in rehearsal are the ones you see during the show.

This LED luminaire is designed with sustainability in mind. It offers lower wattage for more output, leading to reduced power consumption and increased luminaires per circuit. This also results in lower heat generation, quieter fans, and overall quieter fixtures.

The ColorSource Spot V boasts an impressive L70 rating of 54,000 hours. With an average usage of three hours per day, seven days a week, this translates to a lifespan of 50 years for a single fixture.

The Spot V also offers adaptability with fixed-focus lenses ranging from 5 to 90 degrees. Whether you choose standard, EDLT, or XDLT lenses, you're assured of high-quality optics that have stood the test of time.

The ColorSource Spot V is compatible with a Fresnel Adapter for dazzling washes with soft edges, smooth overlap, and even distribution. It also works with a CYC Adapter, transforming your Spot V into a powerful tool for creating color-rich, eye-catching cycloramas and backdrops.

Ideal for theatres, performance spaces, houses of worship, schools, universities, hospitality venues, retail spaces, exhibition centers, meeting rooms, clubs, and cafetoriums, the ColorSource Spot V Light Engine with Shutter Barrel in Black is a versatile lighting solution that delivers on all fronts.

Electronic Theatre Controls ColorSource Spot V Features

  • Five-color array (red, green, blue, indigo, and lime)
  • Simple user interface with seven-segment display
  • powerCON TRUE1 TOP connector
  • DMX/RDM in and thru (5-pin XLR)
  • Multiverse wireless DMX/RDM
  • NFC (near field communication) configuration
  • LED droop compensation
  • Optically calibrated
  • Tour-ready, aluminum housing
  • Combine with available adapters to transform your fixture into a fully functional Fresnel or CYC light (adapters sold separately)

Key Features

  • Create vibrant stage washes with the ColorSource Spot V's superior color mixing.
  • Achieve precise lighting designs using the included shutter barrel for beam shaping.
  • Enjoy long-lasting performance with a 54,000-hour L70 rating on the LED array.
  • Easily control your lighting setup via DMX512 with 5-pin XLR connectivity.
  • Customize your stage presence with swappable lens tubes from 5 to 90 degrees.
  • Benefit from flicker-free operation with a 5,000 Hz refresh rate for cameras.

What's in the box:

  • Electronic Theatre Controls ColorSource Spot V Light Engine with Shutter Barrel (Black)
  • Hanging Yoke
  • 4.9' (1.5m) Power Cable
  • Soft-Focus Diffuser in an A-Size Gobo Holder
  • Electronic Theatre Controls 5 Year Limited Warranty on Fixtures & 10 Year Limited Warranty on LED Array
