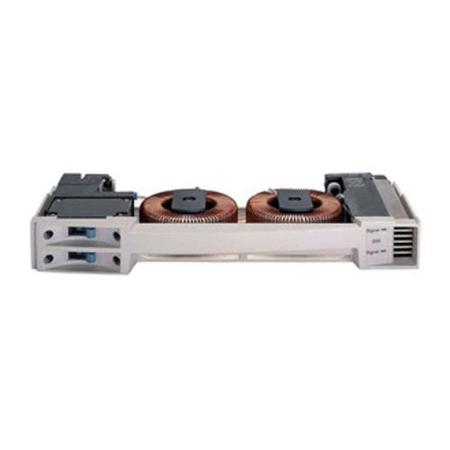

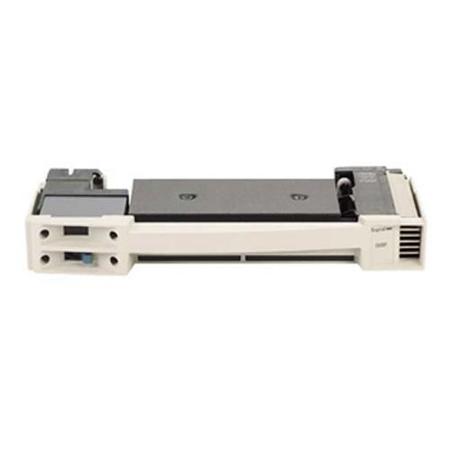

Electronic Theatre Controls Dual 20A Relay Module

SKU: ETCR20 MFR: R20

Key Features

  • Enhance your lighting setup with this Electronic Theatre Controls power accessory!
  • Enjoy peace of mind with a 100,000A Short Circuit Current Rating (SCCR) for safety.
  • This dual 20A relay module is perfect for managing high-power lighting systems efficiently.
  • Benefit from a long-lasting design rated for 200,000 full load relay activations.
  • Easily control your stage lighting with a level-activated mechanical relay system.
  • Trust in UL and cUL regulatory compliance for a safe and reliable power solution.
See More Product Details
Special Order Item?Estimated to Ship: 08/20/2025
Calculate Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electronic Theatre Controls Dual 20A Specifications

  • AC Voltage

    Minimum: 100 Volts
    Maximum: 120 Volts

  • Electrical Ratings

    100,000A Short Circuit Current Rating (SCCR)
    Module withstands hot-patching of cold loads up to full rating

  • Regulatory Compliance

    UL, cUL

  • Relays

    20 amp, level-activated mechanical relay
    Rated for 200,000 full load activations
    Rated for 5 Million no load activations

    Rated for 1.50HP at 20.0A
    Rated for 20A General Purpose, 10A Tungsten and 1.5HP Motor Maximum

  • Power Device

    Sealed, patented assembly
    4000V isolation between control and power components
    Integral bonded heatsink

  • Dimensions (H x D x W)

    1.50 x 4.90 x 11.8 (3.81 x 12.4 x 29.9cm)

  • Weight

    2.60 lb (1.17kg)

About Electronic Theatre Controls Dual 20A

Become empowered with the Dual 20A Relay Module, a robust and reliable plug-in mechanical relay assembly, designed for seamless integration into Unison Dimming series rack enclosures. This compact, high-quality module is equipped with two electrically held relays, housed in the same form factor as standard dimmer modules. This unique feature allows lighting designers the flexibility to mix and match dimmers and relays, thereby facilitating control of diverse loads with ease.

This user-friendly relay module is perfect for controlling non-dimmable load types, including High Intensity Discharge (HID) lamps such as Metal Halide and High Pressure Sodium. It's also an ideal choice for managing non-dimmed On/Off loads and motors, providing a reliable power source for fans and standard outlets.

Moreover, this versatile module by Electronic Theatre Controls (ETC), a reputable brand renowned for its high-quality lighting and control equipment, is also adept at powering moving lights, fog machines, and other powered effects. Whether you're in the entertainment industry or need a reliable power control solution, the Dual 20A Relay Module is a reliable and efficient choice.

Electronic Theatre Controls Dual 20A Features

  • Two 1.8kW or 2.4kW circuits per module
  • Level-activated mechanical relays
  • High-density modular assembly
  • Die-cast aluminum chassis
  • Fully magnetic circuit breakers
  • Designed for use in Unison 100 to 120V Unison DRd rack enclosures
  • Non-dimmed on/off loads
  • 100,000A Short Circuit Current Rating (SCCR)
  • UL and cUL LISTED

Key Features

  • Enhance your lighting setup with this Electronic Theatre Controls power accessory!
  • Enjoy peace of mind with a 100,000A Short Circuit Current Rating (SCCR) for safety.
  • This dual 20A relay module is perfect for managing high-power lighting systems efficiently.
  • Benefit from a long-lasting design rated for 200,000 full load relay activations.
  • Easily control your stage lighting with a level-activated mechanical relay system.
  • Trust in UL and cUL regulatory compliance for a safe and reliable power solution.

What's in the box:

  • Dual 20A Relay Module
  • Electronic Theatre Controls 1 Year Limited Warranty
