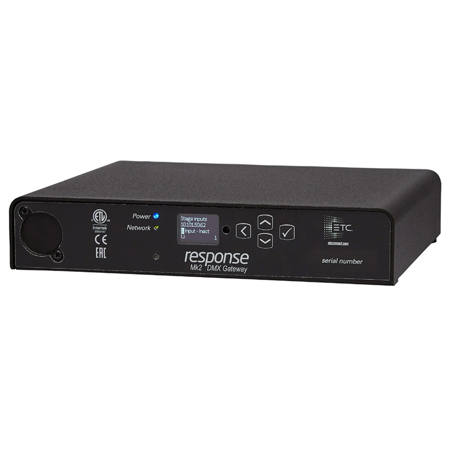

Electronic Theatre Controls Response Mk2 4-Port Output DMX/RDM Desktop Terminal Gateway, Gray
SKU: ETCRSNDMX4O MFR: RSN-DMX4-O
Key Features
- This DMX Gateway supports Net3/ACN, ANSI E1.31 & E1.17, and RDM (ANSI E1.20) for seamless integration.
- With flexible output patch, begin a 512-address universe at any output address using this DMX Interface.
- This Lighting Controller offers a selectable DMX refresh rate, up to 40Hz, supporting 255 RDM devices.
- Easily monitor network, power, & data activity w/ LED indicators on this reliable DMX Terminal Gateway.
- Configure locally or remotely via Net3 Concert; this DMX Lighting Controller supports 512 DMX addresses.
- Perfect for theaters, road houses, & convention halls, this DMX Gateway enhances any lighting system.
Special Order?Estimated to Ship: 09/09/2025
Calculate Shipping
See Options
Protect your gear with Adorama Protect.* Learn more
2 Year
$139.99
3 Year
$184.99
5 Year
$339.99
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About Electronic Theatre Controls Response Mk2
Powerful data distribution
The fixtures in a modern lighting designer's toolkit have become more data-hungry, and ETC's Gateways are up to the challenge. Response Mk2 DMX Gateways flawlessly connect your sACN network to your DMX runs, allowing you to put data exactly where you need it, saving headaches, money, and time.
Response Mk2 DMX Gateways provide DMX and RDM data distribution, taking advantage of the reliability and interoperability of industry-standard protocols such as ANSI E1.31 (sACN) and ANSI E1.20 (RDM) using standard Ethernet cabling and infrastructure. The Gateway is 4-port model to support multiple DMX universes. Each Gateway supports 256 RDM devices.
And with portable form factors for each model it is possible to use accessories such as rack-mounting trays and c-clamp accessories.
Local and remote configuration
Features a crisp OLED screen and four-button interface for configuration, status, and diagnostics right at the Gateway itself.
For larger systems, Response Mk2 DMX Gateways are configurable using ETC's Concert software. Both network parameters and DMX/RDM configurations can be modified, saved, and re-loaded, allowing for maximum flexibility. On-board diagnostics and output tests make Response Mk2 Gateways a great tool for technicians.
Fully-integrated ETC systems
Response Mk2 DMX Gateways offer seamless integration into ETC's Unison architectural lighting control systems, and also pair perfectly with ETC's entertainment controls.
Finding the right Ethernet gateway has never been easier. With wall-mount, portable, and DIN rail form factors, you can always find the perfect fit for your application. And ETC's variety of DIN rail enclosures ensure you have a secure, convenient place to house your DIN rail devices. All Gateways can be powered via Power over Ethernet or 12-24 VDC external power supply.
Features
• 10/100 Mbps Ethernet connection
• sACN (ANSI E1.31) Support (up to eight sources per port)
• DMX/RDM (ANSI E1.20) Support
• OLED Screen and local UI
• cETLus Listed / CE compliant / EAC certified
• PoE (IEEE 802.3af) or 12-24 VDC external power supply (available separately)
Electronic Theatre Controls Response Mk2 Features
- Distributes DMX and RDM data to any input/output device over Ethernet
- Supports Net3 protocol powered by ACN
- Configurable DMX/RDM Output or Input
- Simple configuration and service of each port
- Onboard screen and buttons for labeling, status andconfiguration
- Power, network and port direction status indicators
- Touch to Wake Sensor
- Power over Ethernet (PoE) or external DC power supply
- Configurable using Concert Software
Warranty Information
This product has a limited warranty of 24 months.
