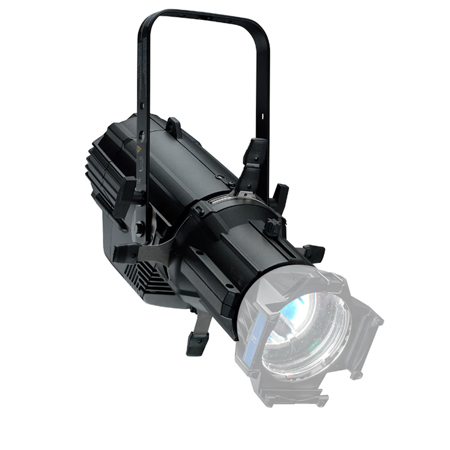

Electronic Theatre Controls Source Four LED Series 2 Lustr with Shutter Barrel

SKU: ETCS4LS2LS0 MFR: S4LEDS2LS-0

Key Features

  • Experience superior color mixing with this Source Four LED Par Can for vibrant stage lighting.
  • Achieve precise lighting control with the included Shutter Barrel, perfect for focused stage effects.
  • Enjoy flicker-free operation (900-25,000 Hz) with this LED fixture, ideal for broadcast and film sets.
  • Customize your stage lighting with swappable lens tubes, offering a versatile 5° to 90° beam angle.
  • Benefit from a robust, die-cast metal housing, ensuring durability for touring and permanent installs.
  • Easily integrate this DMX-controlled LED Par Can into existing lighting setups for seamless operation.
See More Product Details
Special Order Item?
Calculate Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electronic Theatre Controls Source Four LED 2 Lustr Specifications

Source
  • LED details

    60 Lumileds LUXEON Rebel LED

  • Max lumens

    8667

  • Lumens per watt

    51.9

  • L70 rating

    54,000 hours (hours to 70% output)

  • Colors used

    Red, Amber, Lime, green, Cyan, Blue, Indigo

  • Color temperature range

    2,200-6,500K

  • Calibrated array

    Yes

  • Red shift

    Yes (can be disabled)

Optical

Jump to...
  • Beam angle range

    Swappable lens tubes between 5 Degree -90 Degree

  • Gate size

    80mm

  • Aperture size

    6.25-14 in (depending on lens tube)

  • Pattern projection

    Yes

  • Pattern size

    A or B

  • Camera flicker control/Hz range

    Yes: 900-25,000 Hz

Control

Jump to...
  • Input method

    DMX512 via 5-pin XLR

  • Protocols

    DMX512/RDM

  • RDM configuration

    Yes

  • UI type

    LCD

  • Local control

    Yes

  • Onboard presets

    Yes

  • Onboard sequences

    Yes

  • Onboard effects

    No

  • FixtureLink

    Yes

Electrical

Jump to...
  • Voltage range

    100-240 VAC 50/60 Hz

  • Input method

    Neutrik powerCON in and thru, requires power from a non-dimmable source

  • Inrush

    50 A at 120 V (First half-cycle)
    107 A at 240 V (First half-cycle)

  • Fixtures per circuit

    9 Lustr (15 A via power thru connector)
    10 Lustr (via R20 module or Echo Relay Panel)

  • Wattage typical

    167

  • Current draw

    1.44 A at 120 V
    0.78 A at 240 V

Thermal

Jump to...
  • Ambient operating temp

    32 - 104 Degree F (0 - 40 Degree C)

  • Fan (controllable)

    Yes (yes)

  • Droop compensation

    Yes

  • dB range

    22.5 dBA average at 1 m

  • BTUs/hour

    569

Regulatory and Compliance

Jump to...
  • Approved regulatory standards

    cETLus Listed
    Conforms to UL1573
    Certified to C22.2 C22.#166
    CE Compliant

Physical

Jump to...
  • Material

    Die-cast, all metal housing

  • Color options

    Black, white, silver, or custom color

  • Mounting options

    Yoke, cyc floor stand (sold separately)

  • IP rating

    IP20

  • Weight

    With barrel: 18.3 lbs (8.3kg)
    Without barrel: 14.3 lbs (6.5kg)

About Electronic Theatre Controls Source Four LED 2 Lustr

Quality is the driving force behind ETC's LED product development. Countless hours have gone into creating tools worthy of the most professional applications, and the Source Four LED Series 2 ellipsoidal luminaire is the result of that dedication. With the brightest output and the boldest rendering of the colors you use most, the Source Four LED Series 2 introduces a whole new level of LED ellipsoidal lighting fixtures that can be used anywhere.

Lustr array
We put a twist of lime in the luminaire and mixed it all up. ETC's x7 Color System combines a balanced recipe of up to seven colors to create evocative color mixes. The Source Four LED Series 2 Lustr array takes the idea even further, with the addition of a lime-green LED emitter. Lime green increases the luminaire's lumen output in open white and lighter tints to make them brighter and livelier. The lime also enriches color-rendering by better marrying the red and blue ends of the color spectrum, for truer-to-life light that fills in the gaps ordinary LEDs leave behind.

We also added more red to the x7 Color System in the Source Four LED Series 2 Lustr array. Working in unison with the lime-green emitter, the extra red means the luminaire can produce ambers, straws and pinks up to three hundred percent as bright as those from the original Source Four LED. The deeper, richer color from the Source Four LED Series 2 Lustr array will evoke the strongest audience reaction to your sunset, moonlight and dramatic scenes.

Lens Tubes
Introducing XDLT lens tubes that provide the highest output, clarity, and contrast of any lens tube on the market. Use your existing lens tubes, or upgrade to XDLT.

Electronic Theatre Controls Source Four LED 2 Lustr Features

  • Up to nine fixtures (15A max) may be linked via power thru connector (10 fixtures total per circuit) when used with R20 Relay Module or Unison Echo Relay Panel
  • Multiple control options, including Direct, RGB, HSIC, and console-free modes
  • 15-bit virtual dimming engine for smooth fades and minimal color shift during dimming
  • ETL Listed to UL1573; IP20 rated

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience superior color mixing with this Source Four LED Par Can for vibrant stage lighting.
  • Achieve precise lighting control with the included Shutter Barrel, perfect for focused stage effects.
  • Enjoy flicker-free operation (900-25,000 Hz) with this LED fixture, ideal for broadcast and film sets.
  • Customize your stage lighting with swappable lens tubes, offering a versatile 5° to 90° beam angle.
  • Benefit from a robust, die-cast metal housing, ensuring durability for touring and permanent installs.
  • Easily integrate this DMX-controlled LED Par Can into existing lighting setups for seamless operation.

What's in the box:

  • Electronic Theatre Controls Source Four LED Series 2 Lustr with Shutter Barrel
  • Hanging Yoke
  • 1.5m Power Cable
  • Softfocus Diffuser In An A-Size Gobo Holder
  • Gel Frame
  • Electronic Theatre Controls 5 Year Limited Warranty
