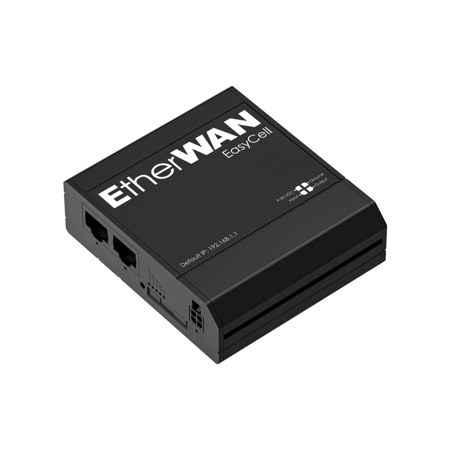

EtherWAN EasyCell Hardened 4G LTE Cat4 Router with HexaCloud Device Monitoring & WAN Failover

4G (LTE) - Cat. 4 up to 150 Mbps DL / 50 Mbps UL

Release 10/11 depending on the hardware version

Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, bytes sent/received, connected band, IMSI, ICCID

SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to e-mail, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

Supports sending and reading Unstructured Supplementary Service Data messages

Operator black/whitelist

Possibility to use different PDNs for multiple network access and services

Band lock, used band status display

Auto APN

Direct connection (bridge) between mobile ISP and device on LAN

Router assigns its mobile WAN IP address to another device on LAN

Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)

H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

Port forward, traffic rules, custom rules

Static and dynamic IP allocation, DHCP Relay

Traffic priority queuing by source/destination, service, protocol, or port, WMM, 802.11e

Supported >25 service providers, others can be configured manually

Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic failover

Balance Internet traffic over multiple WAN connections

Possibility to mount remote file system via SSH protocol

Multiple clients and a server can run simultaneously, 27 encryption methods

DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

Respond to one ID in range [1;255] or any

Allow access through WAN

MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality

01, 02, 03, 04, 05, 06, 15, 16

8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)

Update FW from file, check FW on server, configuration profiles, configuration backup

Update FW

Update FW/configuration for multiple devices at once

Update FW without losing current configuration

OpenWrt based Linux OS

Busybox shell, Lua, C, C++

SDK package with build environment provided

1x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high

1x Digital Output, Open collector output, max output 30 V, 300 mA

Email, Remote Management System, SMS

Allows to set certain I/O conditions to initiate event

-40 to 167 Degree F (-40 to 75 Degree C)

10% to 90% non-condensing

IP30 Rating

FCC, CE/RED, UKCA, CB

IEEE 802.11b/g/n, Access Point (AP), Station (STA)

WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation

SSID stealth mode and access control based on MAC address

Up to 50 simultaneous connections

Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes

Fast roaming (802.11r), Relayed

Whitelist, blacklist

1x WAN port, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

1x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block

Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T

DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

Port and tag-based VLAN separation

Mobile data limit, customizable period, start time, warning limit, phone number

Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

Flexible access control of TCP, UDP, ICMP packets, MAC address filter

HTTP(S), MQTT, Azure MQTT, Kinesis

Allows sending commands and receiving data from MODBUS Master through MQTT broker

TCP Master, DNP3 Outstation

HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log

Firmware update from server, automatic notification

MediaTek, 580 MHz, MIPS 24KEc

128 MB, DDR2

16 MB, SPI Flash

4-pin industrial DC power socket

9-30 VDC, reverse polarity protection; surge protection >31 VDC 10us max

Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 - 30 VDC

< 6.5 W Max

2x RJ45 ports, 10/100 Mbps

1x Digital Input, 1x Digital Output on 4-pin power connector

3x Connection type status LEDs, 5x Connection strength LEDs, 2x LAN status LEDs, 1x Power LED

1x SIM slot (Mini SIM - 2FF), 1.8 V/3 V, external SIM holder

1x 4-pin power connector

2x SMA for LTE, 1x RP-SMA for Wi-Fi antenna connectors

Reboot/User default reset/Factory reset button

EN 300 328

EN IEC 62311:2020, EN 50665:2017, EN IEC 62368-1:2020+A11:2020, IEC 62368-1:2018

Casing: Aluminum housing, plastic panels

Bottom and sideways DIN rail mounting slots

3.26 x 0.98 x 2.91" (83 x 25 x 74mm)

4.40 oz (125g)

850047425362
