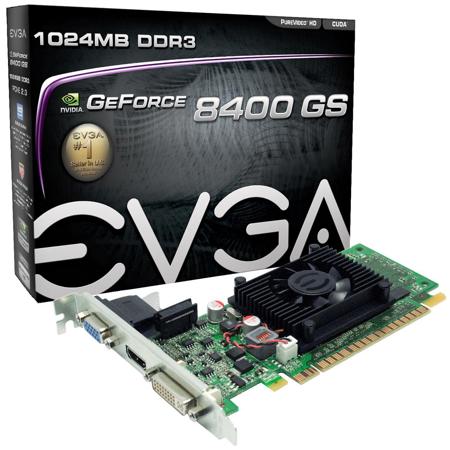

EVGA GeForce 8400 GS 1024MB Graphics Card, DDR3, PCI Express 2.0x16, 120Hz Refresh Rate, HSF Cooling

SKU: EV01GP31302

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

EVGA GeForce 8400 GS Specifications

  • CUDA Cores

    8

  • Base Clock

    520MHz

  • Shader Clock

    1238MHz

  • Texture Fill Rate

    1238GTps

  • Memory

    1GB, 64-bit DDR3

  • Effective Clock Speed

    1200MHz

  • Memory Bandwidth

    9.6GBps

  • Cooling

    HSF

  • Memory Speed

    2.5ns

  • Interfaces

    PCI Express 2.0 x16
    DVI-I, HDMI, VGA

  • Maximum Refresh Rate

    120Hz

  • Maximum Analog

    2048x1536

  • Maximum Digital

    1920x1200

  • Operating System Support

    Windows 7 32/64bit
    Windows Vista 32/64bit
    Windows XP 32/64bit

  • Minimum Power Supply

    350W

  • Dimensions (H x L)

    4.38 x 6.5" / 11.13 x 16.51cm

  • UPC Code

    843368013721

About EVGA GeForce 8400 GS

NVIDIA GigaThread Technology
GigaThread is a new technology that enables thousands of independent threads to execute in parallel inside of the graphics core. This delivers extreme processing efficiency in advanced, next-generation shader programs.

True 128-Bit Floating Point High Dynamic-Range (HDR)
Allows you to experience cinematic, life like environments, for an amazing graphics experience.

NVIDIA CUDA Support
Accelerates CUDA based applications through the GPU's processing power allowing for faster application performance such as video transcoding.

NVIDIA PureVideo HD Technology
Smooth video, accurate colors, precise image scaling, video decode acceleration and post processing, all provided by the graphics card to give you the best HD experience possible. This feature also offloads from the CPU to help reduce power consumption.

Unified Shader Architecture
Provides an efficient single platform consisting of vertex shaders, geometry shaders and the pixel shaders. This allows for better performance and visual quality.

Full Microsoft DirectX 10 Shader Model 4.0 Support
Also known as the Unified Shader Model, the Vertex shaders, Geometry shaders and Pixel shaders are combined in to one unified shader. Also backwards compatible with DirectX 9.

PCI Express 2.0 / 1.1 Support
Allows 500MB a lane or up to 8GB/s at 16x speeds - allows for full support for new PCI-E 2.0 graphics cards.

NVIDIA PhysX Ready
Enjoy more visual immersion with life like physics for a more dynamic experience.

OpenGL 3.2 Support
Ensures top-notch compatibility and performance for all OpenGL applications.

NVIDIA Lumenex Engine
A portion of the GPU is dedicated to delivering 16x full-screen antialiasing, 128-Bit Floating Point HDR and support for 2560x1600 resolutions all at incredible image quality and performance.

What's in the box:

  • EVGA GeForce 8400 GS 1024MB Graphics Card
  • Drivers CD-ROM
  • Owner's Manual
  • EVGA 2 Year Limited Warranty
