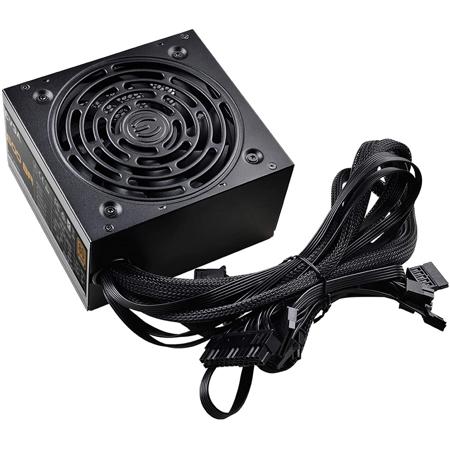

EVGA 600W BA Non-Modular Power Supply, 80 Plus Bronze Efficiency
See all EVGA items

EVGA 600W BA Non-Modular Power Supply, 80 Plus Bronze Efficiency

SKU: EV100BA0600K

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

EVGA BA Power Supply Specifications

  • Compatibility

    ATX 24pin Power Supply Tester (Single)

  • Cable Length

    ATX Cable: 1x 550mm
    EPS Cable: 1x 600mm
    PCIe Cable: 1x 550mm, 670mm
    SATA Cable: 2x 450mm, 570mm, 690mm
    Four-Pin Peripheral Cable: 1x 450mm, 570mm, 690mm + 810mm (Floppy)
    AC Power: 1x 1200mm (m)

  • Modular Cable Type

    No

  • Connector Quantity

    1x 24 Pin ATX
    1x 8pin (4+4) EPS (CPU)
    2x 8pin (6+2) PCIe
    6x SATA
    3x Four-Pin Peripheral
    1x Floppy

  • Input Voltage

    100-240V

  • AC Input

    10-5A

  • Input Frequency Range

    60/50Hz

  • Efficiency

    85% Typical

  • Max Output

    +3.3V Rail at 20A, 120W Maximum
    +5V Rail at 20A, 120W Maximum
    +12V Rail at 50A, 600W Maximum
    +5Vsb Rail at 3A, 15W Maximum
    -12V Rail at 0.3A, 3.6W Maximum

  • Total output

    600W

  • Operating Temperature

    32 to 86 Degree F (0 to 30 Degree C)

  • Japanese Capacitors

    No

  • ECO Mode

    No

  • MTBF

    100,000 Hours

  • Approvals

    TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
    Compliance with ErP Lot 3 2014 Requirement

  • Fan Size / Bearing

    120mm Sleeve Bearing

  • Dimensions (H x W x L)

    3.3 x 5.9 x 5.5" (86 x 150 x 140mm)

  • Weight

    4 lbs (1.8kg)

  • UPC Code

    843368064624

About EVGA BA Power Supply

The EVGA BA Power Supplies are here to add that final luster to your PC without leaving a hole in your wallet. Certified 80PLUS Bronze, BA power supplies utilize a DC-DC converter to make sure value does not come at the expense of efficiency. Powered by a single +12V rail, EVGA BA power supplies are burnished with a full suite of protections and all the cables you need to build a modern gaming PC.

Bronze Rated Efficiency
80 Plus certification ensures your power supply isn't wasting power and turning it into excess heat. Under typical load this power supply is 85% efficient or higher.

Hard Lined Design
Hard lined design allows your cables to be attached to the power supply for ease of installation and removal. You can be ready to go right out of the box.

DC To DC Converter
Voltage step-down for rock-solid power stability and minimal signal noise. (For 3.3V and 5V)

Long Sleeve Bearing Fan
A 120mm Long Life Sleeve Bearing fan results in quieter operation and a longer lifespan.

Made to Protect & Serve
The EVGA BA Series also includes a full suite of protections [OCP, OVP, UVP, OPP, SCP, OTP] for safety and security.

EVGA BA Power Supply Features

  • Quiet and Intelligent Auto Fan for near-silent operation
  • 80 PLUS Bronze certified, with 85% efficiency or higher under typical loads
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
  • Active Power Factor Correction
  • Single 12V. Rail
  • DC-DC Converter improves 3.3V/5V stability

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Quiet and Intelligent Auto Fan for near-silent operation
  • 80 PLUS Bronze certified, with 85% efficiency or higher under typical loads
  • Active Power Factor Correction
  • Single 12V. Rail
  • DC-DC Converter improves 3.3V/5V stability

What's in the box:

  • EVGA 600W BA Non-Modular Power Supply
  • EVGA 3 Year Limited Warranty
