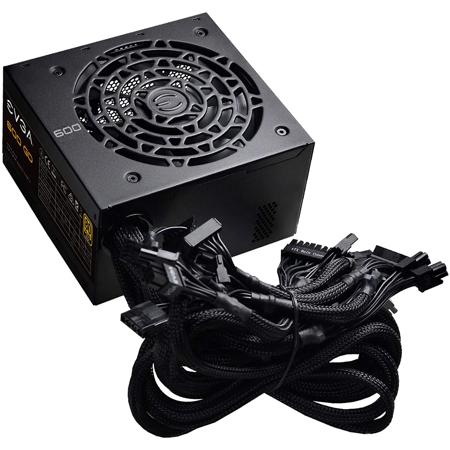

EVGA 600W GD Non-Modular Power Supply, 80 Plus Gold Efficiency

SKU: EV100GD0600V

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Daniel B : correct wattage for the pc I'm building decent quality with a 3 to 10 year warranty

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

EVGA GD Power Supply Specifications

  • Compatibility

    ATX 24pin Power Supply Tester (Single)

  • Cable Length

    ATX Cable: 1x 600mm
    EPS Cable: 1x 600mm
    PCIe Cable: 2x 550mm
    SATA / Four-Pin Peripheral Cable: 1x 450mm(s), 600mm(s), 750mm(s), 900mm(m), 1050mm(m)
    AC Power: 1x 1500mm (m)

  • Modular Cable Type

    No

  • Connector Quantity

    1x 24 Pin ATX
    1x 8pin (4+4) EPS (CPU)
    2x 8pin (6+2) PCIe
    6x SATA
    3x Four-Pin Peripheral
    1x Floppy

  • Input Voltage

    110 - 240 VAC

  • AC Input

    8/4A

  • Input Frequency Range

    60 - 50 Hz

  • Efficiency

    90% or Higher Typical

  • Max Output

    +3.3V Rail at 20A, 100W Maximum
    +5V Rail at 20A, 100W Maximum
    +12V Rail at 50A, 600W Maximum
    +5Vsb Rail at 2.5A, 3.6W Maximum
    -12V Rail at 0.3A, 12.5W Maximum

  • Total output

    600W

  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Japanese Capacitors

    Main

  • ECO Mode

    No

  • MTBF

    100,000 Hours

  • Approvals

    TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
    Compliance with ErP Lot 3 2014 Requirement

  • Fan Size / Bearing

    120mm Sleeve Bearing

  • Dimensions (H x W x L)

    3.3 x 5.9 x 5.5" (86 x 150 x 140mm)

  • Weight

    4 lbs (1.8kg)

  • UPC Code

    843368057329

About EVGA GD Power Supply

Solid Gold Foundation
The EVGA GD Series of power supplies builds upon a Solid Gold Foundation. Available in 700W, 600W and 500W, these power supplies are engineered with the same level of performance at a great value. Featuring 80 Plus Gold certified efficiency and a reliable Japanese main capacitor, the EVGA GD Series is a great choice for those looking for a high-quality power supply at a great price.

Standard Form Factor
Will fit most mATX, ATX, E-ATX, HPTX and XL-ATX cases.

All-Black Sleeved Cable
Get that high-end look while staying within your budget.

Game-Ready Performance
The GD power supplies prove that high-performance gaming doesn't belong to only high-priced power supplies. See the accompanying chart to find out which GD power supply is the right choice for your next EVGA GeForce RTX or GTX graphics card.

Gold-Rated Efficiency
80 Plus certification ensures your power supply isn't wasting power and turning it into excess heat. Under typical load, this power supply is 90% efficient or higher.

Reliable Japanese Main Capacitor
Get the most reliability and performance with the use of a high-quality Japanese main capacitor.

To Protect and To Serve
This PSU will cover your circuits with complete protection: OCP, OVP, OTP, OPP and SCP.

DC-To-DC Converter
Voltage step-down for rock-solid power, stability and minimal signal noise (for 3.3V and 5V).

EVGA GD Power Supply Features

  • 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC-240VAC) efficiency or higher under typical loads
  • Quiet and Intelligent Auto Fan for near-silent operation
  • Active Power Factor Correction
  • Heavy-duty protections, including OVP (Over Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
  • Single 12V. Rail
  • DC-DC Converter improves 3.3V/5V stability

Key Features

  • Quiet and Intelligent Auto Fan for near-silent operation
  • Active Power Factor Correction
  • Single 12V. Rail
  • DC-DC Converter improves 3.3V/5V stability

What's in the box:

  • EVGA 600W GD Non-Modular Power Supply
  • EVGA 3 Year Limited Warranty
