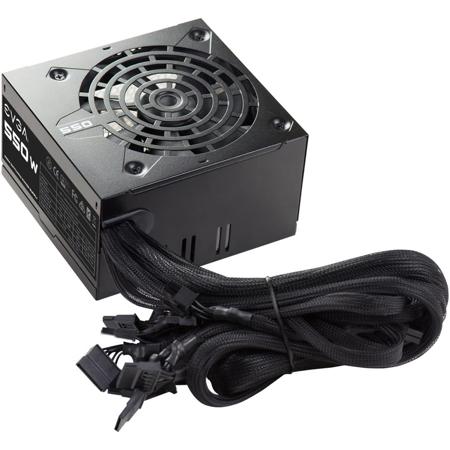

EVGA 550W ATX Power Supply

EVGA 550W ATX Power Supply

SKU: EV100N10550L
(1)

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2021-06-16T16:51:30

Rated 4 out of 5

Just as Expected

Not great, but worth for this price. If you're finding a OK and not expensive one, this will be it. If you're looking for a great quality one, you may get other expensive ones

YINGHUA L.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

EVGA ATX Power Supply Specifications

  • Compatibility

    ATX 24pin Power Supply Tester (Single)

  • Cable Length

    ATX Cable: 1x 550mm
    EPS Cable: 1x 600mm
    PCIe Cable: 1x 550mm, 670mm
    SATA Cable: 2x 450mm, 570mm, 690mm
    Four-Pin Peripheral Cable: 1x 450mm, 570mm, 690mm (f)
    Floppy Adapter: 1x 120mm
    AC Power: 1x 1200mm (m)

  • Modular Cable Type

    No

  • Connector Quantity

    1x 24 Pin ATX
    1x 8pin (4+4) EPS (CPU)
    2x 8pin (6+2) PCIe
    6x SATA
    3x Four-Pin Peripheral
    1x Floppy

  • Input Voltage

    110 - 240 VAC

  • AC Input

    8-4A

  • Input Frequency Range

    50 - 60 Hz

  • Efficiency

    75% Typical

  • Max Output

    +3.3V Rail at 24A, 120W Maximum
    +5V Rail at 15A, 120W Maximum
    +12V Rail at 43A, 516W Maximum
    -12V Rail at 0.3A, 3.6W Maximum
    +5Vsb Rail at 3A, 15W Maximum

  • Total output

    550W @ +25C

  • Operating Temperature

    32 to 77 Degree F (0 to 25 Degree C)

  • Japanese Capacitors

    No

  • ECO Mode

    No

  • MTBF

    100,000 Hours

  • Approvals

    TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS
    Compliance with ErP Lot 6 2013 Requirement

  • Fan Size / Bearing

    120mm Sleeve Bearing

  • Dimensions (H x W x L)

    3.3 x 5.9 x 5.5" (85 x 150 x 140mm)

  • Weight

    3 lbs (1.36kg)

  • UPC Code

    843368040246

About EVGA ATX Power Supply

When building on a budget, the EVGA 550W power supply is a great choice at a low cost. Supporting 43A on a single +12V rail provides more options without having to reduce your component requirements.

The EVGA 550W offers the connections and protections needed for basic system builds. With a standard 2 year warranty and ultra quiet fan design the EVGA 550W power supply will be a great asset for your next build on a budget.

EVGA ATX Power Supply Features

  • Quiet and Intelligent Auto Fan for near-silent operation
  • Heavy-duty protections, including OVP (Over Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Quiet and Intelligent Auto Fan for near-silent operation
  • Heavy-duty protections, including OVP, OCP, OPP, SCP , and OTP

What's in the box:

  • EVGA 550W ATX Power Supply
  • EVGA 2 Year Limited Warranty
