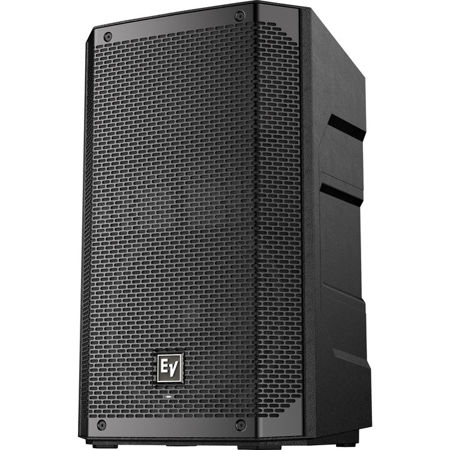

Electro-Voice ELX200-10 10" 2-Way Passive Loudspeaker, Black

SKU: EV102WYPASSP MFR: F.01U.326.055
Earn VIP Reward Points

Key Features

  • Experience powerful sound with this 10" Electro-Voice PA speaker, perfect for live music.
  • This passive PA speaker delivers crystal-clear audio at 1200W peak, ideal for DJs & bands.
  • Achieve wide sound coverage (90° x 60°) with this portable PA speaker for any venue size.
  • Built tough: polypropylene composite enclosure ensures durability for reliable PA performance.
  • Dual NL4 connectors offer flexible connectivity for your sound setup with this PA system.
  • Lightweight design (29.54 lbs) makes this Electro-Voice speaker easy to transport for gigs.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

5 Year

$179.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice ELX200-10 Specifications

  • Available Color

    Black

  • Axial Sensitivity (SPL, 1 W @ 1 m)

    90dB

  • Connector Type

    Dual NL4

  • Coverage (Nominal -6 dB) H

    90 Degree

  • Coverage (Nominal -6 dB) V

    60 Degree

  • Crossover Frequency

    2 kHz

  • Enclosure Material

    Polypropylene Composite

  • Frequency Range (-10 dB)

    49 Hz - 22 kHz

  • Frequency Response (-3 dB)

    65 Hz - 20 kHz

  • Grille

    18 AWG steel with powdercoat

  • HF Transducer

    DH-1C 1" titanium compression driver

  • LF Transducer

    EVS-10M 10" (254mm)

  • Max. SPL/1m (calc)

    127dB

  • Minimum Impedance

    7.2 Ohm

  • Nominal Impedance

    8 Ohm

  • Power Handling (Continuous / Peak)

    300 W/1200W

  • Power Rating

    1200W

  • Recommended High-Pass Frequency

    55Hz

  • Speaker Type

    Full-Range

  • Suspension

    (3) M10 suspension points

  • Woofer Size

    10"

  • Dimensions (H x W x D)

    20.9 x 12.99 x 12.56" (531 x 330 x 319mm)

  • Weight

    29.54 lb (13.4kg)

  • UPC Code

    800549826846

About Electro-Voice ELX200-10

A standout in its category, the ELX200-10 10" 2-Way Passive Loudspeaker in sleek black is an embodiment of superior sound quality, exceptional portability, and unparalleled durability. This member of the esteemed ELX series is meticulously designed with custom components that have been rigorously tested, surpassing industry standards, making it a robust and reliable choice for professional applications.

This loudspeaker is more than just a collection of parts; it's a harmonious integration of acoustical, electrical, and mechanical components, all working in unison to deliver optimal performance. The full-range models are crafted with a low-profile form factor, coupled with a high-spec composite enclosure. This design not only ensures weight balance and manageability but also enhances structural integrity.

The ELX200-10 10" 2-Way Passive Loudspeaker is equipped with proprietary features that have set the EV portable speaker family apart as the go-to for best-in-class performance. The Signal Synchronized Transducers (SST) waveguide concept is a prime example of this, contributing to an efficient transducer design and meaningful specifications. The result is a component that delivers an accurate, linear response even at the system's highest output levels. In simpler terms, it remains loud and clear, even when pushed to the limit.

Housed in one of the most robust full-range composite enclosures ever constructed by EV, the ELX200-10 10" 2-Way Passive Loudspeaker sets a new benchmark for toughness. It's not just about acoustic excellence; it's about physical resilience too. This speaker is the epitome of maximum efficiency paired with maximum toughness, making it an ideal choice for those seeking superior audio equipment.

Electro-Voice ELX200-10 Features

  • 1200 W (Peak), 127 dB peak SPL system that is reliability verified with over 500 hours of abuse testing and endurance testing to 4x typical industry practices
  • 1.4" DH-1C (1" exit) titanium compression driver for extended transparent high-frequency response
  • High-output EVS-10M woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction
  • EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading
  • Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX two-handle design for easy lifting

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience powerful sound with this 10" Electro-Voice PA speaker, perfect for live music.
  • This passive PA speaker delivers crystal-clear audio at 1200W peak, ideal for DJs & bands.
  • Achieve wide sound coverage (90° x 60°) with this portable PA speaker for any venue size.
  • Built tough: polypropylene composite enclosure ensures durability for reliable PA performance.
  • Dual NL4 connectors offer flexible connectivity for your sound setup with this PA system.
  • Lightweight design (29.54 lbs) makes this Electro-Voice speaker easy to transport for gigs.

What's in the box:

  • ELX200-10 10 " 2-Way Passive Loudspeaker (Black)
  • Electro-Voice 5 Year Limited Warranty
