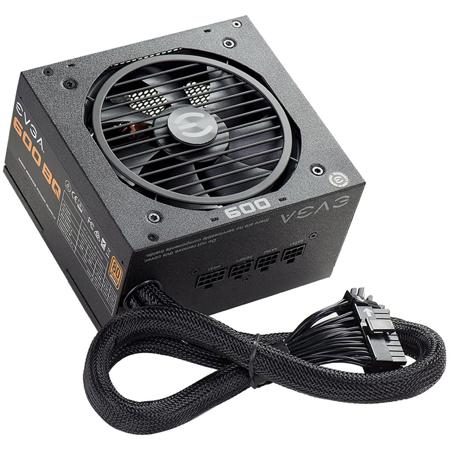

EVGA 600W BQ Semi Modular Power Supply, 80 Plus Bronze Efficiency
See all EVGA items

EVGA 600W BQ Semi Modular Power Supply, 80 Plus Bronze Efficiency

SKU: EV110BQ0600K

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?SOFIA S : It fits the specifications of my pcSEEDCHAN X : NeedJAYDON E : Because I need it for my pcTRISTON M : Because its a very good ps

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

EVGA BQ Power Supply Specifications

  • Compatibility

    PCIe 8-Pin (6+2) Cable (Single)
    CABLE,PSU,VGA, 6+2P,600mm,550-650G3
    2x PCIe 8-Pin (6+2) Cable (Single)
    ATX 24-Pin Power Supply Tester (Single)
    PCIe 8-Pin (6+2) + 6-Pin Cable (Single)
    3x SATA Cable (Single) for 500BQ/600BQ ONLY
    3x Molex+FDD Cable (Single) for 500BQ/600BQ ONLY

  • Cable Length

    ATX Cable: 1x 600mm
    EPS Cable: 1x 600mm
    PCIe Cable: 1x 600mm, 700mm
    SATA Cable: 2x 450mm, 570mm, 690mm
    Four-Pin Peripheral Cable: 1x 450mm, 570mm, 690mm + 810mm (Floppy)
    Floppy Adapter: 1x
    AC Power: 1x 1500mm

  • Modular Cable Type

    Semi

  • Connector Quantity

    1x 24-Pin ATX
    1x 8-Pin(4+4) EPS (CPU)
    2x 8-Pin (6+2) PCIe
    6x SATA
    3x Four-Pin Peripheral
    1x Floppy

  • Input Voltage

    100-240 VAC

  • AC Input

    8-4

  • Input Frequency Range

    50-60Hz

  • Efficiency

    85% Typical

  • Max Output

    +5V Rail at 20A, 120W Maximum
    +3.3V Rail at 20A, 120W Maximum
    +12V Rail at 50A, 600W Maximum
    -12V Rail at 0.3A, 3.6W Maximum
    +5Vsb Rail at 2.5A, 12.5W Maximum

  • Total

    600W

  • Japanese Capacitors

    Main PCB

  • ECO Mode

    No

  • MTBF

    100,000 Hours

  • Approvals

    TUV, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS
    Compliance with ErP Lot 6 2013 Requirement

  • Fan Size / Bearing

    120mm Fluid Dynamic Bearing

  • Dimensions (H x W x L)

    3.3 x 6 x 5.5" (85 x 150 x 140mm)

  • Weight

    5 lbs (2.2kg)

  • UPC Code

    843368043292

About EVGA BQ Power Supply

Introducing the next generation in value; the BQ series. These power supplies a esome of the best features from EVGA's award winning power supply lineup, like a 120mm fan with near silent operation and modular cables to make one of the best values today in high performance power supplies.

Ultra-Quiet
The Teflon nano-steel bearing fan allows for near-silent operation, even under the toughest loads.

Excellent Performance
These power supplies offer 85% efficiency or higher under typical loads . The integrated 100% high-quality Japanese capacitors also ensure long-term reliability.

Single +12V Rail
A single +12V rail offers the best power output, rail stability and compatibility with the latest hardware.

Modular
Modular design allows some cables to be removed from the power supply for ease of installation and removal. You can leave off unnecessary cables to reduce case clutter and maximize case airflow.

80 PLUS Bronze-Rated Efficiency
80 Plus Bronze certification ensures your power supply isn't wasting power and turning it into excess heat. Under typical loads these power supplies are 85% efficient or higher.

EVGA BQ Power Supply Features

  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection)
  • Quiet and Intelligent Auto Fan for near-silent operation

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Heavy-duty protections, including OVP, UVP, OCP, OPP and SCP
  • Quiet and Intelligent Auto Fan for near-silent operation

What's in the box:

  • EVGA 600W BQ Semi Modular Power Supply
  • EVGA 3 Year Limited Warranty
