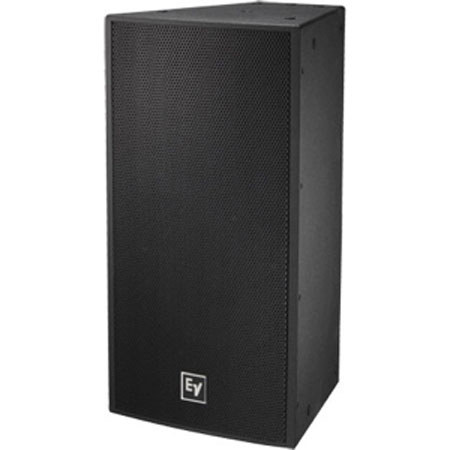

Electro-Voice EVF-1122S/126 12" 2-Way 120 x 60 Full-Range Fiberglass Loudspeaker, 58Hz-16kHz, 98dB Sensitivity, 131dB SPL, 8 Ohms, Single, Black

SKU: EV1122S126FB MFR: F.01U.272.921
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice 12" full-range loudspeaker.
  • Achieve powerful audio projection with a peak power handling of up to 2000W.
  • Enjoy flexible connectivity with Phoenix/Euroblock style screw terminals included.
  • This durable PA speaker is perfect for permanent installations, indoors or outdoors.
  • Ensure crystal-clear audio with a wide frequency response from 49Hz to 19kHz.
  • Get wide sound coverage with its 120 x 60 degree dispersion, ideal for venues.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVF-1122S/126FB Specifications

  • Environmental Specs

    Standard versions: IEC 60529 IP44

  • Input Connections

    Phoenix/Euroblock style screw terminals

  • Frequency Response

    -3dB: 58Hz-16kHz
    -10dB: 49Hz-19kHz

  • Recommended High-Pass Frequency

    65Hz

  • Sensitivity 1 W/1 m

    98dB

  • Max. SPL/1m (calc)

    131dB

  • Coverage (Nominal -6 dB) H

    120 deg.

  • Coverage (Nominal -6 dB) V

    60 deg.

  • System Power Handling

    Continuous/Program/Peak: 500/1000/2000W

  • LF Transducer

    SMX2121, 12" / 304.8mm Driver

  • HF Transducer

    ND2B, 2" / 50.8mm) Diaphragm Compression Driver

  • Crossover Frequency

    1450 Hz

  • Nominal Impedance (Passive)

    8Ohms

  • Minimum Impedance

    6Ohms

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grill

    Standard versions: 16 GA Galvanneal, Powdercoat, with screen behind

  • Suspension

    (22) M10 Threaded Points

  • Dimensions (H x W x D)

    30.26 x 16 x 16.27" / 76.86 x 40.64 x 41.33cm

  • Weight

    63.05lbs / 28.6kg

  • UPC Code

    00800549301626

About Electro-Voice EVF-1122S/126FB

The Electro-Voice EVF-1122S/126 12" 2-Way 120 x 60 Full-Range Fiberglass Black Loudspeaker is constructed out of weather-resistant birch and coated with EVCoat for maximum protection from the elements. It has unique acoustic and rigging designs allow for vertical and horizontal clusters to be built using any combination of loudspeakers. With an assortment of full-range, low-frequency and subwoofer loudspeakers, it provides the tools to maximize the flexibility of system design, no matter what the application and budget.

It has innovative input panels provide the choice of Phoenix-type connectors (included in all standard models) or allow the easy addition of a dual NL4-type connector cover plate or gland nut cover plate (for weatherizing applications). An externally accessible jumper also selects passive or active operation and an available 70.7/100V transformer kit simply mounts to the input panel for use in distributed systems. All features provide the flexibility to manage more venues with less equipment, while quickly and precisely addressing customer requirements.

Electro-Voice EVF-1122S/126FB Features

  • 2-inch ND2B titanium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Six available patterns with coverage from 60deg. to 120deg
  • 4th-order passive crossover with HF protection

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with this Electro-Voice 12" full-range loudspeaker.
  • Achieve powerful audio projection with a peak power handling of up to 2000W.
  • Enjoy flexible connectivity with Phoenix/Euroblock style screw terminals included.
  • This durable PA speaker is perfect for permanent installations, indoors or outdoors.
  • Ensure crystal-clear audio with a wide frequency response from 49Hz to 19kHz.
  • Get wide sound coverage with its 120 x 60 degree dispersion, ideal for venues.

What's in the box:

  • Electro-Voice EVF-1122S/126 12 " 2-Way 120 x 60 Full-Range Fiberglass Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
