Electro-Voice ELX200-12SP Subwoofer Specifications

  • Color

    Black

  • Connector Type

    (2) XLR/TRS combo jacks and (2) XLR link outputs

  • Enclosure Material

    15 mm plywood with EVCoat

  • Family

    ELX200

  • Frequency Range (-10 dB)

    41 Hz - 165 Hz

  • Frequency Response (-3 dB)

    49 Hz - 135Hz

  • Grill

    18 AWG steel with powdercoat

  • LF Transducer

    EVS-12L 300 mm (12")

  • Low Pass Frequency

    Adjustable: 80 Hz, 100 Hz, 120Hz, 150 Hz

  • Max. SPL/1m (calc)

    129dB

  • Power Consumption

    100 - 240 V-, 50 - 60 Hz, 1.8A

  • Power Rating

    1200W

  • Powered or Passive

    Powered

  • Speaker Type

    Subwoofer

  • Woofer Size

    12" (304.8 mm)

  • Dimensions (H x W x D)

    15.63 x 17.52 x 17.99" (397 x 445 x 457 mm)

  • Weight

    42.11 lb (19.1 kg)

  • UPC Code

    800549826785

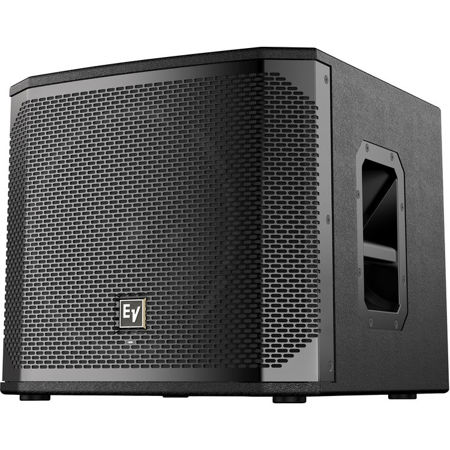

About Electro-Voice ELX200-12SP Subwoofer

FEATURED REVIEWS

BOOM!!

By vPete S.

After plugging in the power cord and turning it on, initially I thought I must had turned it off and not on. I checked and the little blue power light was on. It was so quite I was afraid that the amp was blown. I plugged a keyboard in the EV Sub and BOOM!!!! Beautiful sound with no hiss or distortion. Plenty of power for my needs and the perfect size/weight. The EV ELX200 Sub, if fits your needs I HIGHLY recommend. Plus working with Mike from Adorama made it so I will continue to look for p...

View full Review

ELX200-12SP features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP, and delivers up to 129 dB SPL utilizing transducers designed and engineered by EV (12-inch EVS-12L woofer). Powered subwoofer models allow easy setup via three presets (Music, Live, Club), sub/top system-match crossovers, three-band EQ, five user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure. ELX200 powered models are ideal for portable and installed applications, with lightweight and compact 15-mm wood enclosures, integrated M20 threaded pole polemount plate, and two-handle design for easy lifting.

The new QuickSmart Mobile wireless control and monitoring application, using Bluetooth Low Energy (BTLE) technology, allows intuitive system control, configuration and monitoring of up to six powered ELX200 loudspeakers simultaneously. Receive alerts when your system is being overdriven, and control your system while in front of your speakers, not behind. Bluetooth is available in select countries.

• EV QuickSmart Mobile application: quickly and wirelessly configure, control and monitor up to six ELX200 loudspeakers simultaneously, and receive immediate notification during critical performance conditions. Bluetooth is available in select countries.

• QuickSmartDSP features best-in-class processing. Easy setup via three presets, sub/top system-match, five user-programmable presets, visual monitoring of limiter status, input level control and meters, and master volume control to optimize gain structure, all via LCD.

• High-efficiency 1200 W Class-D power amplifier delivers up to 129 dB peak SPL utilizing ultraefficient, high-sensitivity transducer designed and engineered by EV

Ideal for portable and installed applications. Professional-grade hardware: integrated M20 threaded pole mount plate and two-handle design for easy lifting

What's in the box:

  • ELX200-12SP-US 12 " 1200W Powered Subwoofer
  • Power Cable
  • Electro-Voice 3 Year Limited Warranty
