This item is no longer available.

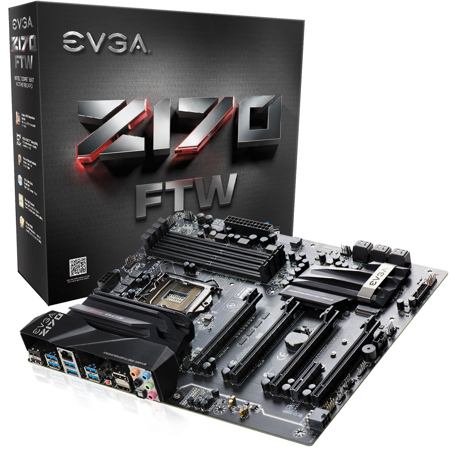

The EVGA Z170 FTW motherboard is engineered to win. Designed for next generation hardware, the EVGA Z170 FTW features a new BIOS GUI interface designed to be fast and have the best overclocking support and functionality. A highly efficient VRM provides the cleanest power to the CPU possible, fed through a CPU socket that has 1.5X the amount of gold content for improved signal quality. A total of 4 DIMM slots support up to 64GB of DDR4 memory and the PCI Express layout is optimized for improved lane distribution and better performance with native support for NVIDIA SLI Technology.
· Supports Intel Core 6 Generation Processor, Family for LGA Socket 1151
· 150% Increased Gold Content
· Intel Z170 Chipset
· Enthusiast Layout Supporting 2-Way SLl1 + PhysX
· 4 DIMM Dual-Channel DDR4 3200MHz+ (64GB)
· PCI Express 3.0 Ready
· 2 USB 2.0 Ports (two rear panel)
· 8 USB 3.0 Ports (six rear panel, two onboard)
· HDMI Port, DisplayPort 1.2 Port, 6x SATA 6G Ports
· M.2/1x Key M Up to 32Gbps
· Intel Gigabit Ethernet Port (10/10011000)
· 8 Channel HD Audio
· ATX Form Factor
· EVGA Vdroop Control
· EVGA E-LEET Tuning Support
· Onboard CPU Temperature Monitor
· Supports Intel Core i3, i5 and i7 Socket 1151 Processors
Intel Z170 Chipset
· Supports up to 8 CPU threads (8-core)
· Supports DDR4 Memory
· First to support PCI-E 3.0 from PCH
· USB 3.1 Support (EVGA Z170 Classified)
Performance Leadership
· Up to 11% Faster CPU (SPECint_rate_base 2006)
· 22% Lower TDP (85W vs 84W)
· Up to 28% Faster Inter HD Graphics (3DMark 11 Graphics Scorn)
