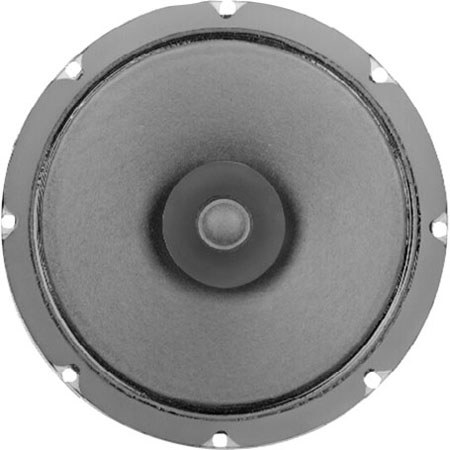

Electro-Voice 209-4T 8" Dual Cone Ceiling Speaker, 10 Watts, Single
See all Electro-Voice items

Electro-Voice 209-4T 8" Dual Cone Ceiling Speaker, 80-15000Hz Frequency Response, 10 Watts Power, 8 Ohms Impedance, 4 Watt 25/70/100-Volt Line Transformer, Single

SKU: EV2094T
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Electro-Voice EVID-C44: Picture 1 regular
Electro-Voice EVID-C44 Ceiling Mount Speaker System, White
$975.00
Electro-Voice EVID C8.2: Picture 1 regular
Electro-Voice EVID C8.2 8" 2-Way Coaxial Ceiling Loudspeaker, Pair
$546.00$439.00
Electro-Voice EVID-S8.2: Picture 1 regular
Electro-Voice EVID-S8.2 8" 2-Way 8 Ohms Commercial Loudspeaker, Pair, Black
$778.00$659.00
Electro-Voice EVID-S8.2T: Picture 1 regular
Electro-Voice EVID-S8.2T 8" 2-Way 70/100V Commercial Loudspeaker, Pair, Black
$803.00$679.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Electro-Voice 209-4T Specifications

  • Frequency Response

    80-15000Hz, +/-5 d8

  • Power-Handling Capacity

    10 watts (per EIA RS-426-A 1980 (80-15000 Hz bandlimited pink noise, 6 dB crest factor)

  • Impedance

    Nominal: 8 Ohms
    Minimum: 7 Ohms (230 Hz)

  • Sound Pressure Level

    94dB (at 1 Meter, 1 Watt Input, 200-4000 Hz Average)

  • Maximum SPL

    104dB for 10W at 1m

  • Voice-Coil Diameter

    25.4mm (1")

  • Magnet Weight

    0.32kg (0.70lbs)

  • Magnet Material

    Barium Ferrite

  • Flux Density

    1.0 Tesla

  • Speaker Frame

    22-gauge stamped steel

  • Dimensions (Dia. x H)

    20.6 x 7cm (8.11 x 2.75")

  • Weight

    1.4kg (3.08lbs)

About Electro-Voice 209-4T

The Electro-Voice 209-4T is a high-quality 8 inch, full-range loudspeaker for distributed sound systems. An acoustically transparent dome encloses a small, centrally mounted free-edge cone which is used to improve high-frequency dispersion. The 209 is suitable for use in applications requiring highly intelligible speech or smooth musical reproduction. The 209-4T includes a transformer, allowing connection to 25/70/100-volt line, with taps of 0.5 to 4 watts.

Electro-Voice 209-4T Features

  • 8" Full-Range Ceiling Loudspeaker
  • 22-gauge stamped steel frame
  • Available with a 4 watt transformer
  • The 209-4T allows connection to 25/70/100-volt line, with taps of 0.5 to 4 watts
  • Includes a premounted ceiling grille

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 8" Full-Range Ceiling Loudspeaker
  • 22-gauge stamped steel frame
  • Available with a 4 watt transformer
  • The 209-4T allows connection to 25/70/100-volt line, with taps of 0.5 to 4 watts
  • Includes a premounted ceiling grille

What's in the box:

  • Electro-Voice 209-4T 8 " Dual Cone Ceiling Speaker
  • Electro-Voice 3 Year Warranty
