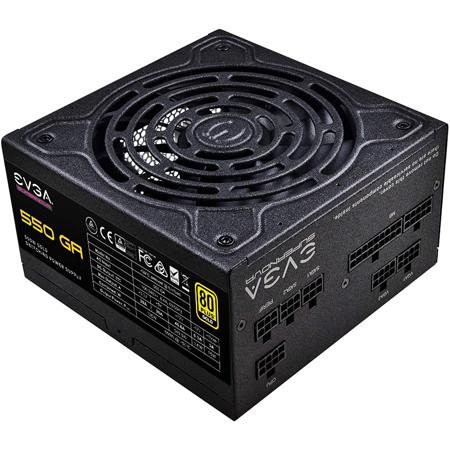

EVGA SuperNOVA 550W GA Fully Modular Power Supply, 80 Plus Gold Efficiency

SKU: EV220GA0550X

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

EVGA GA Power Supply Specifications

  • Cable Length

    ATX Cable: 1x 600mm (m)
    EPS Cable: 1x 700mm (m)
    PCIe Cable: 1x 700mm, 1x 700mm, 850mm (m)
    SATA Cable: 2x 550mm, 650mm, 750mm (m)
    Four-Pin Peripheral Cable: 1x 550mm, 650mm, 750mm, 850mm (m)
    Floppy Adapter: 1x Molex to FDD Adapter
    AC Power: 1x 1500mm (m)

  • Modular Cable Type

    Full

  • Connector Quantity

    1x 24-Pin ATX
    1x 8-Pin (4+4) EPS (CPU)
    3x 8-Pin (6+2) PCIe
    6x SATA
    4x Four-Pin Peripheral
    1x Floppy

  • Input Voltage

    100 - 240 VAC

  • AC Input

    8-4A

  • Input Frequency Range

    50/60 Hz

  • Efficiency

    90% or Higher Typical

  • Max Output

    +3.3V Rail at 20A, 120W Maximum
    +5V Rail at 20A, 120W Maximum
    +12V Rail at 45.8A, 549.6W Maximum
    -12V Rail at 0.5A, 3.6W Maximum
    +5Vsb Rail at 3A, 15W Maximum

  • Total

    550W @ +50C

  • Operating Temperature

    32 Degree F to 122 Degree F (0 Degree to 50 Degree C)

  • Japanese Capacitors

    100%

  • ECO Mode

    Yes

  • MTBF

    100,000 Hours

  • Approvals

    TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
    Compliance with ErP Lot 3 2014 Requirement

  • Fan Size / Bearing

    135mm Double Ball Bearing

  • Dimensions (H x W x L)

    3.4 x 6 x 6" (86 x 150 x 150mm)

  • Weight

    5 lbs (2.2kg)

  • UPC Code

    843368061845

About EVGA GA Power Supply

Equip your high-performance PC with EVGA's SuperNOVA GA Series power supply. Built with top-notch components and rated at 80 PLUS Gold, it delivers outstanding reliability and efficiency. The full modular design lets you easily build a PC with well-ventilated, neat interior. And when ECO mode is activated, you can expect incredibly quiet operation during low to medium loads. Choose from multiple power options to cover your specific needs.

80 Plus Gold Rated
80 Plus Gold certification ensures your power supply isn't wasting power or producing excessive heat. Under typical load, the SuperNOVA GA Series is 90% efficient or higher.

Full Modular Design
This allows you to use only the cables you need to reduce cable clutter and improve airflow inside the case.

100% Japanese Capacitors
Get the best reliability and greatest performance with the use of high-quality Japanese capacitors.

LLC Resonant Circuit Layout
The SuperNOVA GA Series power supply features a full DC to DC design with an LLC resonant circuit to improve efficiency.

ECO Mode
Turn on the ECO mode and the power supply will be completely silent during low to medium loads. Couple this with a durable double-ball bearing fan and you have the perfect mix of silence and longevity.

Made to Protect
The SuperNOVA GA Series also includes a full suite of protections (OCP, OVP, UVP, OPP, SCP, and OTP) for safety and is also covered by EVGA's industry-leading customer support.

EVGA GA Power Supply Features

  • 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC-240VAC) efficiency or higher under typical loads
  • Fully Modular to reduce clutter and improve airflow
  • NVIDIA SLI & AMD Crossfire Ready
  • Double Ball Bearing fan for exceptional reliability and quiet operation
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
  • 100% Japanese Capacitors ensure long-term reliability
  • EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
  • Active Power Factor Correction
  • DC-DC Converter improves 3.3V/5V stability

Key Features

  • Fully Modular to reduce clutter and improve airflow
  • NVIDIA SLI & AMD Crossfire Ready
  • Double Ball Bearing fan for exceptional reliability and quiet operation
  • Heavy-duty protections, including OVP, UVP, OCP, OPP, SCP, and OTP
  • 100% Japanese Capacitors ensure long-term reliability
  • EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads

What's in the box:

  • EVGA SuperNOVA 550W GA Fully Modular Power Supply
  • EVGA 10 Year Limited Warranty
