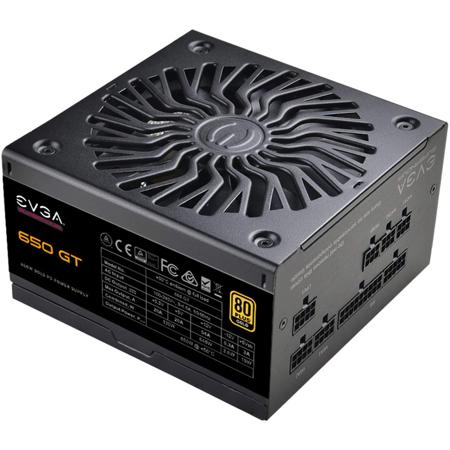

EVGA SuperNOVA 650W GT Fully Modular Power Supply, 80 Plus Gold Efficiency
See all EVGA items

EVGA SuperNOVA 650W GT Fully Modular Power Supply, 80 Plus Gold Efficiency

SKU: EV220GT0650Y

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

EVGA GT Power Supply Specifications

  • Cable Length

    ATX Cable: 1x 600mm (m)
    EPS Cable: 1x 700mm (m)
    PCIe Cable: 1x 700mm, 1x 700mm, 850mm (m)
    SATA Cable: 2x 550mm, 650mm, 750mm (m)
    Four-Pin Peripheral Cable: 1x 550mm, 650mm, 750mm, 850mm (m)
    Floppy Adapter: 1x 100mm
    AC Power: 1500mm (m)

  • Modular Cable Type

    Full

  • Connector Quantity

    1x 24-Pin (20+4) ATX
    1x 8-Pin (4+4) EPS (CPU)
    3x 8-Pin (6+2) PCIe
    6x SATA
    3x Four-Pin Peripheral
    1x Floppy

  • Input Voltage

    100 - 240 V (Approx)

  • AC Input

    9-4.5A

  • Input Frequency Range

    60/50 Hz

  • Efficiency

    90% or Higher Typical

  • Max Output

    +3.3V Rail at 20A, 130W Maximum
    +5V Rail at 20A, 130W Maximum
    +12V Rail at 54A, 650W Maximum
    -12V Rail at 0.3A, 3.6W Maximum
    +5Vsb Rail at 3A, 15W Maximum

  • Total

    650W @ 50 Degree C

  • Operating Temperature

    32 Degree F to 122 Degree F (0 Degree to 50 Degree C)

  • Japanese Capacitors

    100%

  • ECO Mode

    Auto

  • MTBF

    100,000 Hours

  • Approvals

    TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS
    Compliance with ErP Lot 3 2014 Requirement

  • Fan Size / Bearing

    135mm Fluid Dynamic Bearing

  • Dimensions (H x W x L)

    3.4 x 6 x 6" (86 x 150 x 150mm)

  • Weight

    5 lbs (2.2kg)

  • UPC Code

    843368060497

About EVGA GT Power Supply

Refinement in Performance and Design
The EVGA SuperNOVA GT line is your next choice in a fully modular, compact 150mm length & width power supply with 100% Japanese capacitors.

80 PLUS Gold Efficiency
80 PLUS Gold Certified. Ensures that your power supply is 90% efficient or higher.

Fluid Dynamic Bearing
The EVGA SuperNOVA GT uses a long-life 135mm fan with a Fluid Dynamic Bearing (FDB) for silence, reliability, and a longer life expectancy.

Single +12V Output
Provides a stable output for compatibility with the latest hardware.

Fully Modular Design
Choose the cables you need to make cable management simple and clean.

Auto Eco Mode
Fan RPM adapts to the PSU temperature. The fan will shut off in a low temperature/low load environment, resulting in reduced noise.

EVGA GT Power Supply Features

  • 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC-240VAC) efficiency or higher under typical loads
  • Fully Modular to reduce clutter and improve airflow
  • Unbeatable EVGA 7 Year Warranty and unparalleled EVGA Customer Support
  • 100% Japanese Capacitors ensure long-term reliability
  • Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan
  • Auto ECO Mode to ensure silent operation under low to medium loads with no configuration necessary
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and Dual OTP (Over Temperature Protection)

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Fully Modular to reduce clutter and improve airflow
  • Unbeatable EVGA 7 Year Warranty and unparalleled EVGA Customer Support
  • 100% Japanese Capacitors ensure long-term reliability
  • Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan
  • Auto ECO Mode to ensure silent operation under low to medium loads with no configuration necessary

What's in the box:

  • EVGA SuperNOVA 650W GT Fully Modular Power Supply
  • EVGA 7 Year Limited Warranty
