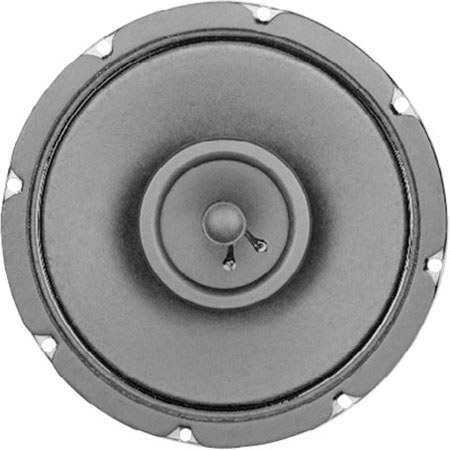

Electro-Voice 309-8A 16W 8" Standard Two-Way Ceiling Speaker, Single
See all Electro-Voice items

Electro-Voice 309-8A 16W 8" Standard Two-Way Ceiling Speaker, 85Hz-18kHz Frequency Response, 8 Ohms Nominal Impedance, Single

SKU: EV3098A
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Electro-Voice EVID-C44: Picture 1 regular
Electro-Voice EVID-C44 Ceiling Mount Speaker System, White
$975.00
Electro-Voice EVID C8.2: Picture 1 regular
Electro-Voice EVID C8.2 8" 2-Way Coaxial Ceiling Loudspeaker, Pair
$546.00$439.00
Electro-Voice EVID-S8.2: Picture 1 regular
Electro-Voice EVID-S8.2 8" 2-Way 8 Ohms Commercial Loudspeaker, Pair, Black
$778.00$659.00
Electro-Voice EVID-S8.2T: Picture 1 regular
Electro-Voice EVID-S8.2T 8" 2-Way 70/100V Commercial Loudspeaker, Pair, Black
$803.00$679.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Electro-Voice 309-8A Specifications

  • Pressure Sensitivity (1W, 500Hz - 3kHz)

    96dB SPL

  • Frequency Response

    85Hz - 18kHz

  • Power-Handling Capacity

    16 watts (85 - 18 kHz, band limited pink noise, 6 dB crest factor)

  • Impedance

    Nominal: 8 Ohms
    Minimum: 6 Ohms (11kHz)

  • Maximum Long-Term Output

    108dB SPL (16 W/1 m) re: 20 mPa

  • Crossover Network

    3000Hz with 6 dB-per-octave tweeter protection

  • Input Terminals

    .212" (0.53cm) push terminals

  • Free Air Resonance

    110Hz

  • Equivalent Volume Compliance

    0.92 cubic-ft

  • Total Q

    0.94

  • Electrical Q

    1.16

  • Mechanical Q

    5.03

  • Volume Displacement V

    1.61 cubic-in.

  • Reference Efficiency

    2.87%

  • Speaker Frame

    22-gauge stamped steel

  • Dimensions

    Loudspeaker Diameter: 206.5mm (8.12")
    Height: 82.6mm (3.25")

  • Weight

    1.3kg / 2.87lbs

About Electro-Voice 309-8A

The Electro-Voice 309-8A 16W 8" Standard Two-Way Ceiling Speaker (Single) is a two-way loudspeaker with 8" low-frequency cones and a high temperature voice-coil assembly coaxially mounted with wide-dispersion cone tweeters. Dual magnet construction allows each speaker to be structurally, magnetically, electrically and mechanically independent of the other.

The 309-8A utilizes a single section crossover network, centered at 3000 Hz, which provides 6 dB of attenuation for the tweeter outside its operating range. The components are designed to work together as a complete system of in-ceiling loudspeakers and accessories. They provide wide dispersion, high-efficiency, high- maximum output, ease of installation and wide-range reproduction of music or voice.

Electro-Voice 309-8A Features

  • 8" Ceiling Loudspeaker
  • 22-gauge stamped steel frame
  • The 309-8T features a 70.7/100-V line transformer, <1 dB insertion loss and a selection of 1 to 8 watt taps
  • 8 watt transformer

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 8" Ceiling Loudspeaker
  • 22-gauge stamped steel frame
  • The 309-8T features a 70.7/100-V line transformer, <1 dB insertion loss and a selection of 1 to 8 watt taps
  • 8 watt transformer

What's in the box:

  • Electro-Voice 309-8A 16W 8 " Standard Two-Way Ceiling Speaker
  • Electro-Voice 3 Year Warranty
