Electro-Voice 309-8TWB Specifications

  • Pressure Sensitivity (1W, 500Hz - 3kHz)

    96dB SPL

  • Frequency Response

    85Hz - 18kHz

  • Power-Handling Capacity

    16 watts (85 - 18 kHz, band limited pink noise, 6 dB crest factor)

  • Impedance

    Nominal: 8 Ohms
    Minimum: 6 Ohms (11kHz)

  • Maximum Long-Term Output

    108dB SPL (16 W/1 m) re: 20 mPa

  • Crossover Network

    3000Hz with 6 dB-per-octave tweeter protection

  • Input Terminals

    .212" (0.53cm) push terminals

  • Weight

    2.3kg / 5.07lbs

About Electro-Voice 309-8TWB

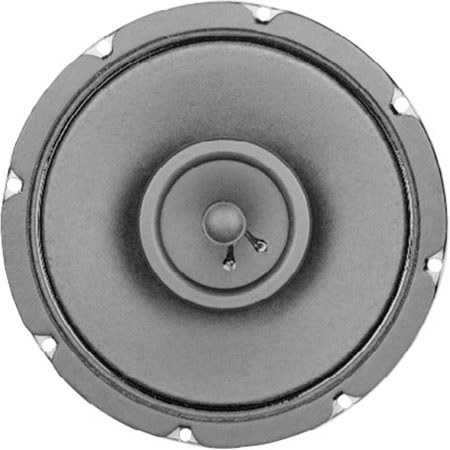

The Electro-Voice 309-8TWB 16W 8" Standard Two-Way Ceiling Speaker (Single) is a two-way loudspeakers with 8-inch low-frequency cones and a high temperature voice-coil assemblies coaxially mounted with wide-dispersion cone tweeters. Dual magnet construction allows each speaker to be structurally, magnetically, electrically and mechanically independent of the other. The 3098TWB utilize a single section crossover network, centered at 3,000 Hz, which provides 6 dB of attenuation for the tweeter outside its operating range.

The 3098TWB features a 70.7/100-V line transformer that offers These components are designed to work together as a complete system of in-ceiling loudspeakers and accessories. They provide wide dispersion, high-efficiency, high- maximum output, ease of installation and wide-range reproduction of music or voice.WB versions come complete with a pre-mounted ceiling grille.

Electro-Voice 309-8TWB Features

  • 8" Ceiling Loudspeaker
  • 22-gauge stamped steel frame
  • The 309-8T features a 70.7/100-V line transformer, <1 dB insertion loss and a selection of 1 to 8 watt taps
  • 8 watt transformer
  • Comes complete with a pre-mounted ceiling grille

Key Features

  • 8" Ceiling Loudspeaker
  • 22-gauge stamped steel frame
  • The 309-8T features a 70.7/100-V line transformer, <1 dB insertion loss and a selection of 1 to 8 watt taps
  • 8 watt transformer
  • Comes complete with a pre-mounted ceiling grille

What's in the box:

  • Electro-Voice 309-8TWB 16W 8 " Standard Two-Way Ceiling Speaker
  • Electro-Voice 3 Year Warranty
