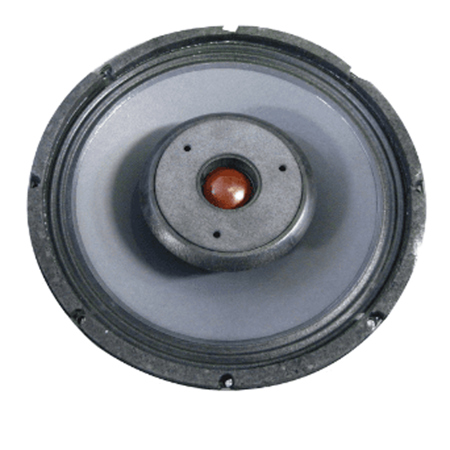

Electro-Voice 920-8B 12" Two-Way Coaxial Loudspeaker, 90Hz-18kHz, 128dB Sound Pressure Level, 100dB Sensitivity, 200W Power, 8 Ohms Impedance, Single

SKU: EV9208B MFR: F.01U.144.819
Earn VIP Reward Points

Key Features

  • Experience crisp audio with this 12" Electro-Voice PA speaker, perfect for clear sound.
  • Achieve powerful sound output; this PA speaker handles 200W continuous, 800W peak power.
  • Enjoy wide frequency response (90Hz-18kHz) for detailed, high-quality sound reproduction.
  • Get loud, clear sound with 128dB max SPL, ideal for live sound and public address needs.
  • Integrate easily with 8 Ohms impedance and Phoenix-type connector for PA systems.
  • Durable and lightweight (13.66 lbs), this PA speaker is great for installations.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice 920-8B Specifications

  • Frequency Response (-3 dB)

    90Hz-18kHz

  • Frequency Range (-10 dB)

    50Hz-20kHz

  • Rec. Highpass Frequency

    60Hz

  • Axial Sensitivity

    100dB

  • Max Calculated SPL

    128dB

  • Power Handling

    Continuous: 200W
    Peak: 800W

  • Crossover Frequency

    2kHz

  • Input Terminals

    4-pin Phoenix-Type Connector

  • Impedance

    8 Ohms Nominal

  • Dimensions (Dia. x D)

    311 x 127mm (12.24 x 5")

  • Weight

    6.2kg (13.66lbs)

Models
Electro-Voice 920-8B 12" Two-Way Coaxial Loudspeaker, Single
$397.00

$421.00

Save:$24.00 (6%)

Ships from Manufacturer

Usually ships within 1-2 Days. Please note: Your card will be charged when order is submitted to the vendor (usually within 24 hours).

Electro-Voice EVU-1062/95 6.5" 2-Way Woofer, Single, Black
$644.00

$683.00

Save:$39.00 (6%)

Special Order

Generally ships in 7-14 days, subject to availability

Electro-Voice ZX1i-100 2Way 200W 8" In/Outdoor Weatherized Speaker, Single,Black
$686.00

Ships from Manufacturer

Usually ships within 1-2 Days. Please note: Your card will be charged when order is submitted to the vendor (usually within 24 hours).

Size12"6"8"
Speaker TypeInstall Speakers, Passive PA SpeakersInstall Speakers, Passive PA SpeakersInstall Speakers, Passive PA Speakers
Power Output200W160W200W

About Electro-Voice 920-8B

From professional audio setups to home entertainment systems, the 920-8B 12" Two-Way Coaxial Loudspeaker delivers exceptional sound quality and performance. This advanced loudspeaker system features a 12-inch low-frequency cone, paired with a high-temperature voice-coil assembly. These components are coaxially mounted with a wide-dispersion dome radiator tweeter, ensuring a balanced and immersive audio experience.

The 920-8B Loudspeaker is engineered with a dual-section crossover network, centered at 2500 Hz. This design provides 12 dB/Octave of attenuation for each element outside its operating range, resulting in a cleaner, more precise sound. With an extended frequency response of 90Hz to 18kHz, this loudspeaker guarantees clear, intelligible speech and fine music reproduction, making it a versatile choice for various audio applications.

Ease of installation is a key feature of the 920-8B. It comes with mounting holes on the rear of the woofer magnet, allowing for the attachment of a transformer to operate the loudspeaker from 70.7/100V distribution lines. The frame design also permits front or rear mounting, providing flexibility for in-ceiling or in-wall installations.

The 920-8B Loudspeaker is equipped with a 4-pin phoenix-style connector, supporting easy pass-through wiring of up to 12 gauge wire. This feature ensures quick, secure hookups and long-term reliable operation. With its 200W power, 100dB sensitivity, and 8 Ohms impedance, the 920-8B 12" Two-Way Coaxial Loudspeaker is a high-efficiency, wide-dispersion, full-range audio solution that meets the demands of both professional and home audio environments.

Electro-Voice 920-8B Features

  • High 100 dB Sensitivity
  • Wide, Smooth 90 Hz -18 kHz Frequency Response
  • High Power Handling, 200W
  • Durable Cast frame
  • High Output Dome Tweeter
  • 4 pin Quick Disconnect Phoenix Connector
  • Rear Transformer Mounting Holes
  • Front or Rear Baffle Installation Capability

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience crisp audio with this 12" Electro-Voice PA speaker, perfect for clear sound.
  • Achieve powerful sound output; this PA speaker handles 200W continuous, 800W peak power.
  • Enjoy wide frequency response (90Hz-18kHz) for detailed, high-quality sound reproduction.
  • Get loud, clear sound with 128dB max SPL, ideal for live sound and public address needs.
  • Integrate easily with 8 Ohms impedance and Phoenix-type connector for PA systems.
  • Durable and lightweight (13.66 lbs), this PA speaker is great for installations.

What's in the box:

  • Electro-Voice 920-8B 12 " Two-Way Coaxial Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
