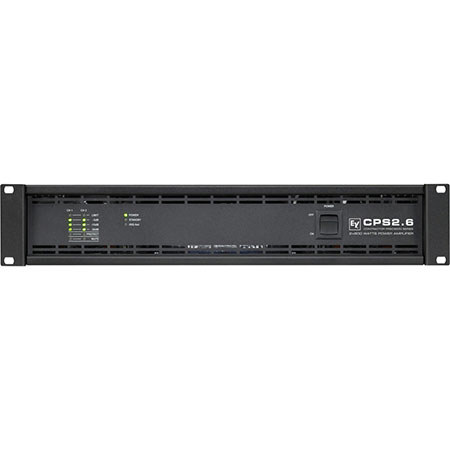

Telex Electro-Voice CPS2.6 2x 600W Power Amplifier
See all Electro-Voice items

Electro-Voice CPS2.6 2x 600W Power Amplifier, 20KOhms Input Impedance, 10Hz - 40kHz Frequency Response, 600 at 4 Ohms Rated Output Power, 120V, 2U

SKU: EVCPS26II120
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Electro-Voice CPS2.6 Specifications

  • Load Impedance

    2 Ohms
    4 Ohms
    8 Ohms

  • Maximum Midband Output Power

    THD = 1%, 1 kHz, Dual Channel:
    2 Ohms: 900W
    4 Ohms: 600W
    8 Ohms: 380w

  • Rated Output Power

    4 Ohms: 500W
    8 Ohms: 250W

  • Maximum Single Channel Output Power

    Dynamic-Headroom, IHF-A:
    2 Ohms: 1700W
    4 Ohms: 950W
    8Ohms: 480W
    Continuous, 1 kHz:
    2 Ohms: 1200W
    4 Ohms: 750W
    8Ohms: 420W

  • Maximum Bridged Output Power

    THD = 1%, 1 kHz:
    4 Ohms: 1800W
    8 Ohms: 1200W

  • Maximum RMS Voltage Swing

    THD = 1%, 1 kHz: 65.1V

  • Power Bandwidth

    THD = 1%, ref. 1 kHz, half power at 4 Ohms: <10Hz - 30 kHz

  • Voltage Gain, ref. 1 kHz

    32.0dB

  • Input Sensitivity

    rated power at 8 Ohms, 1 kHz: +3.1dBu (1.11 Vrms)

  • THD at rated output power

    MBW = 80 kHz, 1 kHz: < 0.03%

  • IMD-SMPTE, 60 Hz, 7 kHz

    < 0.1%

  • DIM30, 3.15 kHz, 15 kHz

    < 0.05%

  • Maximum Input Level

    +21dBu (8.69 Vrms)

  • Crosstalk

    ref. 1 kHz, at rated output power: < -80dB

  • Frequency Response, ref. 1 kHz

    10 Hz - 40 kHz (+/-1dB)

  • Input Impedance, active balanced

    20 kOhms

  • Damping Factor, 1 kHz

    > 300

  • Slew Rate

    26 V/us

  • Signal to Noise Ratio Amplifier

    A-weighted: > 107dB

  • Output Noise

    A-weighted: < -71dBu

  • Output Stage Topology

    Class AB

  • Power Requirements

    120V; 50 Hz - 60 Hz (factory configured)

  • Power Consumption

    1/8 maximum output power at 4 Ohms: 700W
    Rated output power at 8 Ohms: 850W

  • Mains Fuse

    120v: T25AH

  • Protection

    Audio limiters, High temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn-on delay

  • Cooling

    Front-to-rear, 3-stage-fans

  • Ambient Temperature Limits

    +5 deg. C to +40 deg. C / 40 deg. F to 105 deg. F

  • Safety Class

    I

  • Signal Processing

    Lo-Cut 50 Hz / 18 dB, switchable

  • Dimensions (W x H x D)

    19.02 x 3.47 x 16.59" / 483 x 88.1 x 421.5mm

  • Weight

    32.63lbs / 14.8kg

About Electro-Voice CPS2.6

The Electro-Voice CPS2.6 Power Amplifier offer a package of reliable high output power, high efficiency and legendary pro audio performance. They are the premium choice as system drive for a variety of Electro-Voice's installation loudspeakers. Their comprehensive protection system includes circuitry against overheating, overload, short circuit, HF and DC as well as back-EMF. A soft start circuit compensates mains inrush current peaks and thus prevents triggering AC mains fuse when switching on the amplifier. Loudspeakers are protected by turn-on-delay relays.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Electro-Voice CPS2.6 Power Amplifier
  • Owner's Manual
  • Mains Cord
  • Output connector
  • 2x Input connector
  • Power Remote connector
  • 4x Foot Stand
  • Electro-Voice 3 Year Warranty
