44% Off

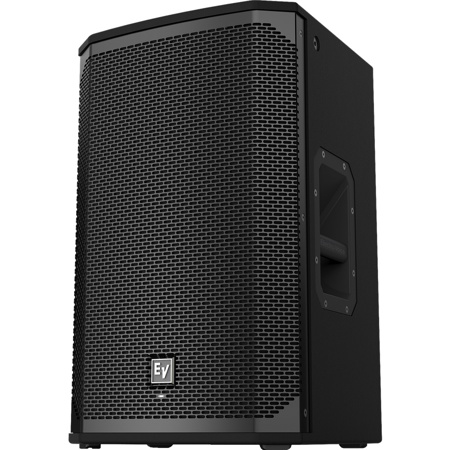

Electro-Voice EKX-12 12" 2-Way Passive Loudspeaker, 8 Ohms Nominal Impedance, 82Hz to 18 kHz Frequency Response at -3dB, Single

SKU: EVEKX12 MFR: F.01U.303.364
Earn VIP Reward Points

Key Features

  • Experience powerful sound with this 12" Electro-Voice PA speaker, perfect for live performances.
  • Achieve crystal-clear audio with a frequency response of 82Hz-18kHz, ideal for any PA system.
  • This durable PA speaker features 350W continuous power, ensuring reliable performance every time.
  • Enjoy wide sound dispersion with 90° x 60° coverage, great for venues of all sizes.
  • Lightweight and portable at only 38.36 lbs, this PA speaker is easy to transport and set up.
  • Built to last, the EKX-12 features a robust plywood enclosure and steel grille for maximum durability.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EKX-12 Specifications

  • Frequency Response at -3dB

    82Hz - 18kHz

  • Frequency Range at -10dB

    55Hz - 20kHz

  • Axial Sensitivity

    55Hz - 20kHz

  • Maximum SPL

    131dB

  • Rec. High-Pass Frequency

    55Hz

  • Coverage (H x V)

    90 deg. x 60 deg.

  • Power Handling

    350W continuous, 1400W peak

  • LF Transducer

    EVS-12M 300mm / 11.81"

  • HF Transducer

    DH-1M 1-inch titanium compression driver

  • Crossover Frequency

    1.6kHz

  • Nominal Impedance

    8Ohms

  • Minimum Impedance

    7.5Ohms

  • Connectors

    Dual NL4

  • Enclosure

    15mm / 0.59" plywood with EVCoat

  • Grille

    18 AWG steel with powdercoat

  • Suspension

    (8) M10 threaded mounting points

  • Dimensions (H x W x D)

    607 x 375 x 356mm / 23.9 x 14.76 x 14.02"

  • Weight

    17.4kg / 38.36lbs

  • UPC Code

    800549772129

About Electro-Voice EKX-12

Experience the superior sound quality and precision coverage of the EKX-12 12" 2-Way Passive Loudspeaker, the latest addition to the Electro-Voice portable loudspeaker family. This compact, yet powerful, audio equipment is designed to cater to a wide array of sound reinforcement scenarios, from live music performances and club settings to installed sound applications.

The EKX series, renowned for its legendary EV sound quality and reliability, offers eight distinct models, including 12-inch and 15-inch two-way models, as well as 15-inch and 18-inch subwoofers. Each model is either powered or passive, providing flexibility based on your specific audio needs.

The EKX-12 stands out with its EV-engineered components and Signal Synchronized Transducers (SST) waveguide design. These features ensure precise coverage and superior sound quality, even at high Sound Pressure Levels (SPLs). Capable of delivering up to 131 dB SPL, the EKX-12 utilizes high-sensitivity transducers, specifically the 12-inch EVS-12M woofer and the DH-1M 1-inch titanium compression driver, both designed and engineered by EV.

Not only does this loudspeaker deliver exceptional sound, but it also boasts an award-winning industrial design. Its robust wood enclosures and durable EVCoat finish ensure that the EKX-12 looks as great as it sounds.

Ideal for both portable and installed applications, the EKX-12 features a lightweight and compact 15-mm wood enclosure with internal bracing. Its durable EVCoat finish, eight M10 threaded mounting points, aluminum pole-mounts, and all-metal handles make it a practical and reliable choice for any sound reinforcement scenario.

In summary, the EKX-12 12" 2-Way Passive Loudspeaker offers a blend of advanced technology, superior sound quality, and robust design, making it a standout choice in the Electro-Voice portable loudspeaker family.

Electro-Voice EKX-12 Features

  • 1400 W (peak), 131 dB SPL utilizing high-sensitivity transducers designed and engineered by EV
  • EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage
  • Lightweight, compact 15-mm wood enclosure with internal bracing and durable EVCoat finish
  • Eight (8) M10 threaded mounting points, aluminum pole-mounts and all-metal handles
  • 90deg. x 60deg. pattern coverage for best coverage on mid-size stages and 40deg. monitor angle with rubber feet

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience powerful sound with this 12" Electro-Voice PA speaker, perfect for live performances.
  • Achieve crystal-clear audio with a frequency response of 82Hz-18kHz, ideal for any PA system.
  • This durable PA speaker features 350W continuous power, ensuring reliable performance every time.
  • Enjoy wide sound dispersion with 90° x 60° coverage, great for venues of all sizes.
  • Lightweight and portable at only 38.36 lbs, this PA speaker is easy to transport and set up.
  • Built to last, the EKX-12 features a robust plywood enclosure and steel grille for maximum durability.

What's in the box:

  • Electro-Voice EKX-12 12 " 2-Way Passive Loudspeaker
  • Electro-Voice 5 Year Limited Warranty
