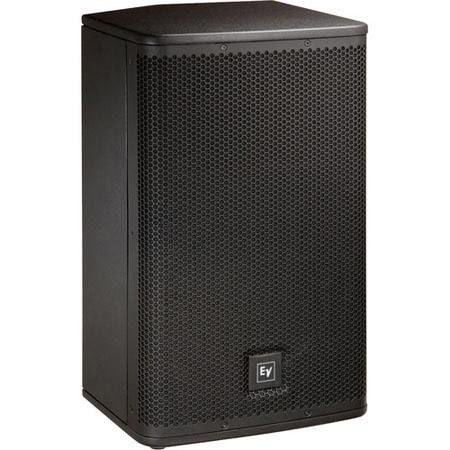

Electro-Voice ELX112 12" Live X 2-Way Passive Loudspeaker
See all Electro-Voice items

Electro-Voice ELX112 12" Live X 2-Way Passive Loudspeaker, 55Hz - 20kHz (I10dB) Frequency Response, 1000W Peak Power, 8 Ohms Nominal Impedance

SKU: EVELX112PS

This item is no longer available.

Recommended Alternatives

Electro-Voice ELX200-10: Picture 1 regular
Electro-Voice ELX200-10 10" 2-Way Passive Loudspeaker, Black
$1,041.00$599.00
Electro-Voice EVF-1122D/126FB: Picture 1 regular
Electro-Voice EVF-1122D/126 12" 2-Way 120x60 Fiberglass Speaker, Single, Black
$4,650.00
Electro-Voice EVF-1122D/126: Picture 1 regular
Electro-Voice EVF-1122D/126 12" 2-Way 120x60 Fiberglass Speaker, Single, White
$4,650.00
Electro-Voice EVF-1122D/126PI: Picture 1 regular
Electro-Voice EVF-1122D/126 12" 2-Way 120x60 Evcoat Speaker, Single, Black
$4,091.00
See More Recommendations
Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Electro-Voice ELX112 Specifications

  • Active or Passive

    Passive

  • Axial Sensitivity (SPL, 1 W at 1 m)

    94 dB

  • Case Material

    9-ply, 15mm Plywood, Internally Braced, with Textured Paint

  • Speaker Type

    Full-range, two-way, wedges

  • Woofer Size

    304.8 mm (12")

  • Frequency Response (-3 dB)

    82 - 18000 Hz

  • Frequency Response (-10 dB)

    55 - 20000 Hz

  • Internal Crossover

    Yes

  • Recommended High-Pass Frequency

    45 Hz

  • Max. SPL/1m (calc)

    132 dB Half Space

  • Coverage (Nominal -6 dB) H

    90 deg.

  • Coverage (Nominal -6 dB) V

    50 deg.

  • System Power Handling

    250W Continuous/1000 Watts Peak

  • LF Transducer

    (1) EVS-12K, 305mm (12") Woofer

  • HF Transducer

    DH-1K, 39mm (1.5") Titanium Diaphragm Compression Driver

  • Crossover Frequency

    21000 Hz

  • Nominal Impedance (Passive)

    8 ohm

  • Minimum Impedance

    7 ohm

  • Connector Type

    Parallel Neutrik NL4

  • Grill

    18GA Steel with Black Powdercoat

  • Dimensions (HxWxD)

    23.9x14.25x13.39" / 60.70x36.19x34.01cm

  • Weight

    35.27 lbs / 15.99 kg

  • UPC Code

    800549589536

10 Accessories for Electro-Voice ELX112 12" Live X 2-Way Passive Loudspeaker, 55Hz - 20kHz (I10dB) Frequency Response, 1000W Peak Power, 8 Ohms Nominal Impedance

  • All Accessories (10)
  • Bags & Cases (1)
  • Cables & Adapters (7)
  • Speaker Cables (1)
  • Stands (1)
Electro-Voice Cover for ELX112 Loudspeaker
Electro-Voice Cover for ELX112 Loudspeaker
$138.00
Hosa 25' Speakon to Speakon Speaker Cable 12 AWG, w/2 Conductors #SKT225
Hosa 25' Speakon to Speakon Speaker Cable 12 AWG, w/2 Conductors #SKT225
$90.95
Hosa 25' Premium Speakon to 1/4" Male Phone Speaker Cable, w/2 Conductors, 12 AW
Hosa 25' Premium Speakon to 1/4" Male Phone Speaker Cable, w/2 Conductors, 12 AW
$89.95
Hosa 30' Speakon to Speakon Speaker Cable 12 AWG, w/2 Conductors #SKT230
Hosa 30' Speakon to Speakon Speaker Cable 12 AWG, w/2 Conductors #SKT230
$105.95
Hosa Technology Hosa 30ft Premium Speakon to 1/4" Male Phone Speaker Cable
Hosa Technology Hosa 30ft Premium Speakon to 1/4" Male Phone Speaker Cable
$98.95
Hosa 50' Speakon to Speakon Speaker Cable 12 AWG, w/2 Conductors #SKT250
Hosa 50' Speakon to Speakon Speaker Cable 12 AWG, w/2 Conductors #SKT250
$136.95
Hosa 75' Speakon to Speakon Speaker Cable 12 AWG, w/2 Conductors #SKT275
Hosa 75' Speakon to Speakon Speaker Cable 12 AWG, w/2 Conductors #SKT275
$194.95
Whirlwind 25' Speakon to Speakon Speaker Cable, 12 Gauge
Whirlwind 25' Speakon to Speakon Speaker Cable, 12 Gauge
$90.23
Whirlwind 50' Speakon to Speakon Speaker Cable, 12 Gauge
Whirlwind 50' Speakon to Speakon Speaker Cable, 12 Gauge
$152.64
Gator Cases Frameworks Standard Aluminum Speaker Stand
Gator Cases Frameworks Standard Aluminum Speaker Stand
$89.99

About Electro-Voice ELX112

The Electro-Voice ELX112 12" Live x 2-Way Passive Loudspeaker is a 2-way passive loudspeaker that offers pro-quality audio for sound reinforcement, PA and stage monitoring applications. The speaker has a 12" woofer and a 1.5" titanium compression driver to provide crisp, natural audio with a wide frequency response. The speaker has a 250W continuous (1000W peak) power handling capability to provide a strong, distortion-free performance.

The plywood cabinet can be placed vertically or horizontally for terrific versatility and it has a standard 35mm pole socket for creating stacks or mounting on top of a subwoofer. A pair of NL4 Speakon connectors allow you to connect to virtually any professional sound system. The steel grille protects the driver elements and provides a sleek look. Integrated carrying handles provide convenient transportation.

Electro-Voice ELX112 Features

  • The 12" woofer and a 1.5" titanium compression driver provide crisp, natural audio with a wide frequency response
  • The speaker has a 250W continuous (1000W peak) power handling capability to provide a strong, distortion-free performance
  • The plywood cabinet can be placed vertically or horizontally for terrific versatility for PA or stage monitoring applications
  • The standard 35mm pole socket lets you create stacks or mount the speaker on top of a subwoofer
  • A pair of NL4 Speakon connectors allow you to connect to virtually any professional sound system
  • The steel grille protects the driver elements and provides a sleek look
  • Integrated carrying handles provide convenient transportation

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Plywood cabinet can be placed vertically or horizontally
  • Standard 35mm pole socket
