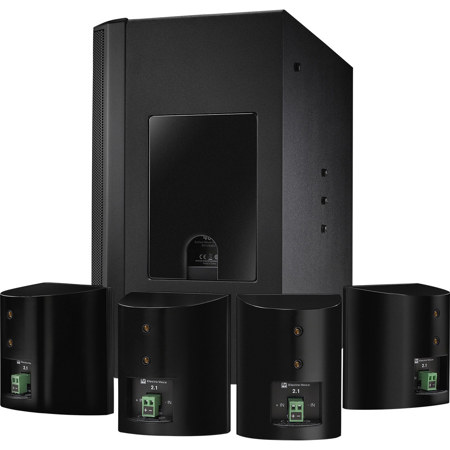

Electro-Voice EVID-S44 Wall Mount Speaker System, Includes 4x EVID 2.1 2" Surface Mount Satellite Speaker and EVID 40S Surface Mount Subwoofer, Black

The EVID Compact Sound Speaker System is a very compact full-range loudspeaker ideal for applications requiring high-quality sound. Its shape flexibility and size make it nearly invisible for use in background/ foreground music systems for restaurants, bars, patios, retail and other applications. The system consists of a high performance 8-inch subwoofer module with a crossover network to support the included four (4) 2-inch satellite speakers.

• A complete matched background/foreground music speaker solution
• Large 8-inch (200 mm) woofer transducer for substantial low frequency output
• Direct connection of satellites to subwoofer - simplifies installation wiring
• Mounting brackets with wide range of motion for surface mount satellites provide easy and secure mounting of speaker to wall
• Convenient detachable phoenix style signal connections speed up installation time

The system provides for easy signal connections at the subwoofer and can support either 4/8 ohm or 70/100v signal connections. Its high power handling allows the system to be used in a wide variety of environments and spaces to provide high quality background or foreground music.

Architecture and Engineering Specifications
The loudspeaker system shall be a two-way design consisting of a separate subwoofer containing one 8-inch (200 mm) low-frequency transducer, (4) satellites consisting of 2 inch (50 mm) high-frequency transducers and frequency-dividing network installed in the vented subwoofer enclosure. All input and output signal connections shall be made at the subwoofer. All signal connections for the subwoofer and satellite speakers shall be made using phoenix style connectors.

The system shall be operable either in stereo or monaural mode when powered with a 4/8 low impedance amplified source. The system shall be capable of operating up to 100 watts when driven with a 100V or 70V amplified source signal. The loudspeaker system shall meet the following performance criteria: Power handling, 200 watts of Long Term Program Rating; Frequency response, 42 Hz - 20 kHz (-10 dB from rated sensitivity); Impedance, 8 ohms nominal in stereo mode, 4 ohms nominal in mono mode.

The high frequency transducer in the satellites speakers shall provide even coverage of a minimum 100 deg. horizontally by 100 deg. vertically averaged over a frequency range of 1-8 kHz and a minimum 150 deg. horizontally by 150 deg. vertically averaged over a frequency range of 1-4 kHz. The subwoofer enclosure shall be constructed of MDF with a vinyl wrapped exterior. The satellite speakers shall be constructed of fire rated ABS. The subwoofer enclosure shall be 15.75 inch (400 mm) high, 15.75 inch (400 mm) wide and 9.06 inch (230 mm) deep.

The satellite loudspeakers shall be adjustable over a range of 160 deg. horizontally and 60 deg. vertically. The support bracket shall be low profile and fully detachable from the enclosure. The surface mount loudspeaker system shall be the EVID S44 or the EVID S44W models made by Electro-Voice.
