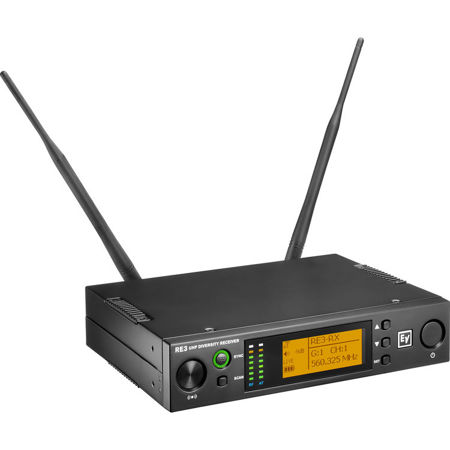

Electro-Voice RE3-RX Rack Mountable Half Space Diversity Receiver, 653-663MHz

SKU: EVF01U353081 MFR: F.01U.353.081
Earn VIP Reward Points

Key Features

  • Experience superior audio clarity with this Electro-Voice wireless receiver.
  • Ensure reliable connection with antenna diversity for seamless performance.
  • Enjoy low latency for real-time audio, perfect for live sound applications.
  • Set up quickly with user-friendly controls and clear LCD function display.
  • Durable build ensures this wireless microphone receiver withstands frequent use.
  • Optimize signal with adjustable squelch, muting noise for pristine audio.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice RE3-RX Specifications

  • Frequency Oscillation Mode

    Phase-locked loop (PLL)

  • Carrier Frequency Range

    6M: 653 - 663 MHz

  • Sync Frequency

    Ultrasonic 40 kHz

  • Diversity

    Antenna diversity

  • Bandwidth

    10MHz

  • Signal/Noise Ratio

    >100dB(A)

  • Total Harmonic Distortion (Thd)

    <0.6% at 1kHz

  • Receiving Sensitivity

    -81dBm for -12dB SINAD

  • Frequency Response

    63Hz to 16kHz +/-2dB (BPT)

  • Antenna Type

    Detachable 1/2 wave with BNC connector

  • Antenna Booster Power

    DC12 - 15V/100mA

  • Function Display By

    LCD

  • Contents Of Display

    Group, channel, frequency, antenna A/B, transmitter battery level, transmitter status (mute, live, or no sync), output level attenuation, AF indication, RF indication, key lock indicator

  • Control Functions

    Power, scan, frequency, group, channel, squelch, TX sensitivity, TX attenuation, TX RF power, TX auto off, TX key lock, TX display info, TX sync configuration, RX output volume, RX output level, RX antenna booster power, RX key lock, RX display contrast, RX display brightness, RX system reset

  • Sync Data Options

    Frequency, group, channel, sensitivity level, attenuation status, RF power, auto off status, key lock status, transmitter display (freq or Gp/Ch)

  • Audio Frequency Output Level

    Ref: +/-22.5kHz Dev at 1kHz Tone
    1/4" (6.3mm) Phone Jack: -10dBV
    XLR Jack: -4dBV(Line), -24dBV(MIC)

  • Audio Frequency Output Impedance

    240 Ohms (unbalanced) 1400 Ohms (balanced)

  • Squelch and noise muting

    Noise muting and tone code locking

  • Output Ports

    1x balanced XLRM jack 1x unbalanced 1/4" TS (6.3mm) jack

  • Power Supply

    DC12 to 15V/500mA

  • Finish

    Black polyurethane paint

  • Dimensions (HxWxD)

    With Feet Attached and Antenna Jack: 1.85 x 8.27 x 6.89" (46.99 x 210.06 x 175.01mm)
    Without Feet Attached and Antenna Jack: 1.73 x 8.27 x 6.1" (43.94 x 210.06 x 154.94mm)

  • Weight

    2.71 lbs (1.23kg)

  • UPC Code

    800549895262

About Electro-Voice RE3-RX

It is a reliable and high-quality RE3-RX Rack Mountable Half Space Diversity Receiver, designed by the reputable brand Electro-Voice. This advanced UHF wireless diversity receiver is engineered with clear frequency scanning and wireless synchronization to the transmitter, offering both balanced XLR and unbalanced 1/4" TRS outputs. It seamlessly pairs with any RE3-HHT handheld or RE3-BPT bodypack transmitter within the same 653-663MHz frequency band, ensuring broad compatibility and versatility.

The setup process is streamlined and user-friendly, thanks to the RE3's clear frequency scan and sync functions. The robust radio link between the handheld transmitter and the diversity receiver guarantees rock-solid system performance, making it an ideal choice for professional audio and video applications.

As a professional, rack-mountable, half-space diversity receiver, the RE3-RX serves as the control center for your RE3 wireless set. It boasts innovative features such as frequency scanning, synchronizing, and full transmitter control settings, which synchronize seamlessly to a mated transmitter.

The advanced diversity reception technology minimizes the risk of signal dropouts by providing two separate antenna locations. These are electronically chosen based on signal strength and stability, ensuring a consistent and reliable connection.

The easy-to-use frequency scanning function simplifies the process of locating and tuning to a clear operating frequency. The sync function wirelessly synchronizes all operating parameters to the mated transmitter, ensuring a seamless and efficient setup.

The wide tuning bandwidth provides access to a vast range of frequencies, selectable in 25kHz steps. This feature ensures trouble-free operation of both single and multi-channel systems. The easy-to-read LCD display provides a vivid view of all menus and operating parameters, enhancing the user experience and making the RE3-RX Rack Mountable Half Space Diversity Receiver a reliable choice for your professional audio and video needs.

Electro-Voice RE3-RX Features

  • Diversity reception minimizes dropouts
  • Frequency scanning for selecting open frequencies
  • Sync function links transmitter to receiver for easy setup
  • Up to 36 MHz tuning bandwidth (band specific) for trouble-free operation
  • Easy-to-read LCD display

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Experience superior audio clarity with this Electro-Voice wireless receiver.
  • Ensure reliable connection with antenna diversity for seamless performance.
  • Enjoy low latency for real-time audio, perfect for live sound applications.
  • Set up quickly with user-friendly controls and clear LCD function display.
  • Durable build ensures this wireless microphone receiver withstands frequent use.
  • Optimize signal with adjustable squelch, muting noise for pristine audio.

What's in the box:

  • Electro-Voice RE3-RX Rack Mountable Half Space Diversity Receiver
  • 2x Receiver Antennas
  • Receiver Rack Mounting Hardware
  • Universal Power Supply
  • Engineering Datasheet
  • Product Documentation Information Card
  • Electro-Voice 3 Year Limited Warranty
