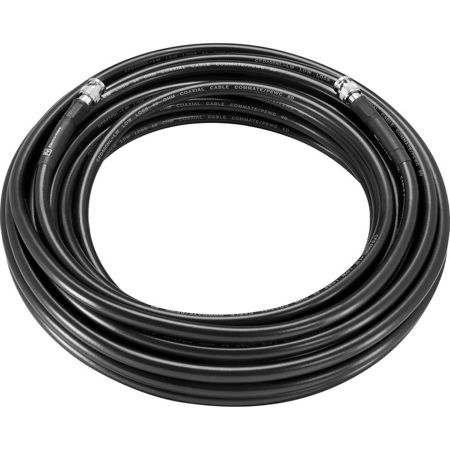

Electro-Voice RE3-ACC-CXU100 100' Low Loss BNC Coax Cable, 50 Ohms Impedance
See all Electro-Voice items

Electro-Voice RE3-ACC-CXU100 100' Low Loss BNC Coax Cable, 50 Ohms Impedance

SKU: EVF01U353102 MFR: F.01U.353.102
Be the first to review this itemAsk a Question
$677.00
OR
$113/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Ensure optimal signal strength with this 100' Electro-Voice low loss BNC coax cable.
  • Reliable 50 Ohms impedance guarantees clear audio for professional microphone setups.
  • Durable BNC connectors ensure secure & stable connectivity for your audio equipment.
  • Extend your antenna reach, minimizing signal drops with this high-quality coax cable.
  • Perfect for stages or studios, this cable delivers pristine sound quality every time.
  • Low attenuation (4.4dB) means minimal signal loss, keeping your audio crisp & clear.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Electro-Voice RE3-ACC-CXU100 Specifications

Wireless Head with Mic Capsule

Wireless Head with Mic Capsule

Jump to...

  • Element type

    Dynamic neodymium magnet structure

  • Frequency response, close

    30 Hz-17 kHz

  • Frequency response, far

    70 Hz-17 kHz

  • Polar pattern

    Cardioid

  • Sensitivity, open circuit voltage

    5.6 mV/Pascal (-45 dBV/Pa) at 1kHz

  • Maximum SPL

    135.5 dB SPL (1% THD)

  • Impedance

    1000 ohms

  • Power requirements

    4-8 VDC

  • Polarity

    Positive pressure on diaphragm produces positive voltage at center contact relative to ground contact

  • Electrical contact

    3-Ring/3-Pin

  • Threaded coupling

    1.25" (31.75mm) diameter
    28 UN-2A thread pitch

  • Finish

    Black polyurethane paint

  • Materials

    Aluminum, steel, steel wire grille screen

Handheld Transmitter

Jump to...

  • Frequency Oscillation Mode

    Phase-locked loop (PLL)

  • Sync Frequency

    Ultrasonic

  • Display By

    LCD + LED

  • Function Controls

    Power, mute, group, channel, frequency, sensitivity adjustment, RF power, auto off, key lock

  • RF Stability

    <+/-10kHz at Fc

  • Modulation Frequency Shift

    Wideband FM
    +/-48kHz deviation

  • Harmonic Radiation

    <-50dBc

  • Battery

    2 x AA alkaline battery or NiMH rechargeable battery

  • Charging Contacts

    Yes

  • Microphone Coupling

    1.25" (31.75mm) diameter
    28 UN-2A thread pitch

  • Microphone Electrical Contact

    3-ring/3-pin

  • Finish

    Black polyurethane paint

Receiver

Jump to...

  • Frequency Oscillation Mode

    Phase-locked loop (PLL)

  • Carrier Frequency Range

    5L: 488 - 524 MHz

  • Selectable frequencies

    1440

  • Transmit output power

    10 and 50 mW

  • Sync Frequency

    Ultrasonic 40 kHz

  • Diversity

    Antenna diversity

  • Bandwidth

    36MHz

  • Signal/Noise Ratio

    >100dB(A)

  • Total Harmonic Distortion (Thd)

    <0.6% at 1kHz

  • Receiving Sensitivity

    -81dBm for -12dB SINAD

  • Frequency Response

    51Hz to 16kHz +/-2dB (HHT)

  • Antenna Type

    Detachable 1/2 wave with BNC connector

  • Antenna Booster Power

    DC12 - 15V/100mA

  • Function Display By

    LCD

  • Contents Of Display

    Group, channel, frequency, antenna A/B, transmitter battery level, transmitter status (mute, live, or no sync), output level attenuation, AF indication, RF indication, key lock indicator

  • Control Functions

    Power, scan, frequency, group, channel, squelch, TX sensitivity, TX attenuation, TX RF power, TX auto off, TX key lock, TX display info, TX sync configuration, RX output volume, RX output level, RX antenna booster power, RX key lock, RX display contrast, RX display brightness, RX system reset

  • Sync Data Options

    Frequency, group, channel, sensitivity level, attenuation status, RF power, auto off status, key lock status, transmitter display (freq or Gp/Ch)

  • Audio Frequency Output Level

    Ref: +/-22.5kHz Dev at 1kHz Tone
    1/4" (6.3mm) Phone Jack: -10dBV
    XLR Jack: -4dBV(Line), -24dBV(MIC)

  • Audio Frequency Output Impedance

    240 Ohms (unbalanced) 1400 Ohms (balanced)

  • Squelch and noise muting

    Noise muting and tone code locking

  • Output Ports

    1 x balanced XLRM jack 1 x unbalanced 1/4" TS (6.3mm) jack

  • Power Supply

    DC12 to 15V/500mA

  • Finish

    Black polyurethane paint

General

Jump to...

  • Dimensions

    Wireless Head with Mic Capsule (LxDia.): 3.6 x 2" (91.44 x 50.80mm)
    Handheld Transmitter (HxW): 7.52 x 1.46" (191.01 x 37.08mm) (Without Head and width at threaded end)
    Handheld Transmitter (HxW): 7.52 x 0.85" (191.01 x 21.59mm) (Without Head and width at Control Cover)
    Receiver(HxWxD): 1.85 x 8.27 x 6.89" (46.99 x 210.06 x 175.01mm) (With Feet Attached and Antenna Jack)
    Receiver(HxWxD): 1.73 x 8.27 x 6.1" (43.94 x 210.06 x 154.94mm) (Without Feet Attached and Antenna Jack)

  • Weight

    Wireless Head with Mic Capsule: 6.5 oz (184.27g)
    Handheld Transmitter: 12.2 oz (345.86g)
    Receiver: 2.71 lbs (1.23kg)

Other

Jump to...

  • Cable type

    Coaxial

  • Connector

    Male BNC - Male BNC

  • Impedance

    50 Ohms

  • Estimated attenuation

    4.4dB

  • Dimensions (LxDia.)

    100' x 0.4" (30.48m x 10.3mm)

  • Weight

    102.6 oz (2908.66g)

  • UPC Code

    800549895477

Designed For Use With:

  • UHF Distribution & Receivers

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About Electro-Voice RE3-ACC-CXU100

The CXU100 is an ultra-low loss, premium-grade, 100 foot coax cable for UHF wireless microphone systems. Its high-efficiency and low-attenuation characteristics make it ideal for system installations requiring lengthy cable runs between antennas and receivers.

• Premium ultra-low-loss coax cable
• 50 ohm
• Robust male BNC connectors

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Ensure optimal signal strength with this 100' Electro-Voice low loss BNC coax cable.
  • Reliable 50 Ohms impedance guarantees clear audio for professional microphone setups.
  • Durable BNC connectors ensure secure & stable connectivity for your audio equipment.
  • Extend your antenna reach, minimizing signal drops with this high-quality coax cable.
  • Perfect for stages or studios, this cable delivers pristine sound quality every time.
  • Low attenuation (4.4dB) means minimal signal loss, keeping your audio crisp & clear.

What's in the box:

  • Electro-Voice RE3-ACC-CXU100 100' Low Loss BNC Coax Cable
  • Engineering Datasheet
  • Product Documentation Information Card
  • Electro-Voice 3 Year Limited Warranty
