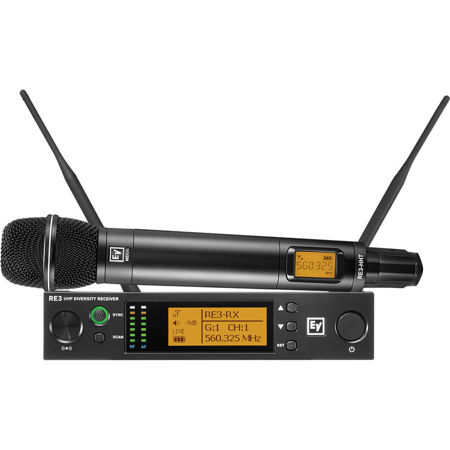

Electro-Voice RE3-ND86 Wireless Handheld System, Includes ND86-RC3 Wireless Head with ND86 Super Cardioid Microphone Capsule, RE3-HHT Handheld Transmitter and RE3-RX Diversity Receiver, 560-596MHz

SKU: EVF01U354205 MFR: F.01U.354.205
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with the Electro-Voice ND86 wireless microphone system.
  • Achieve crystal-clear vocals with the ND86 supercardioid microphone capsule, designed for clarity.
  • Enjoy freedom of movement with a reliable wireless range, perfect for dynamic stage performances.
  • The RE3-RX diversity receiver ensures a stable signal, minimizing dropouts during crucial moments.
  • Easy to set up and use, this handheld wireless microphone system is ideal for any venue.
  • Built for durability, the Electro-Voice wireless system offers years of reliable performance.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

TUYEN T : Hi ! do you have it in stock ?ANDREW R : No. This item is item is drop shipped directly from the manufacturer, not normally stocked in our warehouse. This item is typically shipped to you directly from Manufacturer within 3 to 7 Days. Delivery is subject to availability.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice RE3-ND86 Specifications

Wireless Head with Mic Capsule

Wireless Head with Mic Capsule

Jump to...
  • Element type

    Dynamic neodymium magnet structure

  • Frequency response, close

    30 Hz-17 kHz

  • Frequency response, far

    70 Hz-17 kHz

  • Polar pattern

    Supercardioid

  • Sensitivity, open circuit voltage

    5.6 mV/Pascal (-45 dBV/Pa) at 1kHz

  • Maximum SPL

    134.5 dB SPL (1% THD)

  • Impedance

    1000 ohms

  • Power requirements

    4-8 VDC

  • Polarity

    Positive pressure on diaphragm produces positive voltage at center contact relative to ground contact

  • Electrical contact

    3-Ring/3-Pin

  • Threaded coupling

    1.25" (31.75mm) diameter
    28 UN-2A thread pitch

  • Finish

    Black polyurethane paint

  • Materials

    Aluminum, steel, steel wire grille screen

Handheld Transmitter

Jump to...
  • Frequency Oscillation Mode

    Phase-locked loop (PLL)

  • Sync Frequency

    Ultrasonic

  • Display By

    LCD + LED

  • Function Controls

    Power, mute, group, channel, frequency, sensitivity adjustment, RF power, auto off, key lock

  • RF Stability

    <+/-10kHz at Fc

  • Modulation Frequency Shift

    Wideband FM
    +/-48kHz deviation

  • Harmonic Radiation

    <-50dBc

  • Battery

    2 x AA alkaline battery or NiMH rechargeable battery

  • Charging Contacts

    Yes

  • Microphone Coupling

    1.25" (31.75mm) diameter
    28 UN-2A thread pitch

  • Microphone Electrical Contact

    3-ring/3-pin

  • Finish

    Black polyurethane paint

Receiver

Jump to...
  • Frequency Oscillation Mode

    Phase-locked loop (PLL)

  • Carrier Frequency Range

    5H: 560 - 596 MHz

  • Selectable frequencies

    1440

  • Transmit output power

    10 and 50 mW

  • Sync Frequency

    Ultrasonic 40 kHz

  • Diversity

    Antenna diversity

  • Bandwidth

    36MHz

  • Signal/Noise Ratio

    >100dB(A)

  • Total Harmonic Distortion (Thd)

    <0.6% at 1kHz

  • Receiving Sensitivity

    -81dBm for -12dB SINAD

  • Frequency Response

    51Hz to 16kHz +/-2dB (HHT)

  • Antenna Type

    Detachable 1/2 wave with BNC connector

  • Antenna Booster Power

    DC12 - 15V/100mA

  • Function Display By

    LCD

  • Contents Of Display

    Group, channel, frequency, antenna A/B, transmitter battery level, transmitter status (mute, live, or no sync), output level attenuation, AF indication, RF indication, key lock indicator

  • Control Functions

    Power, scan, frequency, group, channel, squelch, TX sensitivity, TX attenuation, TX RF power, TX auto off, TX key lock, TX display info, TX sync configuration, RX output volume, RX output level, RX antenna booster power, RX key lock, RX display contrast, RX display brightness, RX system reset

  • Sync Data Options

    Frequency, group, channel, sensitivity level, attenuation status, RF power, auto off status, key lock status, transmitter display (freq or Gp/Ch)

  • Audio Frequency Output Level

    Ref: +/-22.5kHz Dev at 1kHz Tone
    1/4" (6.3mm) Phone Jack: -10dBV
    XLR Jack: -4dBV(Line), -24dBV(MIC)

  • Audio Frequency Output Impedance

    240 Ohms (unbalanced) 1400 Ohms (balanced)

  • Squelch and noise muting

    Noise muting and tone code locking

  • Output Ports

    1 x balanced XLRM jack 1 x unbalanced 1/4" TS (6.3mm) jack

  • Power Supply

    DC12 to 15V/500mA

  • Finish

    Black polyurethane paint

General

Jump to...
  • Dimensions

    Wireless Head with Mic Capsule (LxDia.): 3.6 x 2" (91.44 x 50.80mm)
    Handheld Transmitter (HxW): 7.52 x 1.46" (191.01 x 37.08mm) (Without Head and width at threaded end)
    Handheld Transmitter (HxW): 7.52 x 0.85" (191.01 x 21.59mm) (Without Head and width at Control Cover)
    Receiver(HxWxD): 1.85 x 8.27 x 6.89" (46.99 x 210.06 x 175.01mm) (With Feet Attached and Antenna Jack)
    Receiver(HxWxD): 1.73 x 8.27 x 6.1" (43.94 x 210.06 x 154.94mm) (Without Feet Attached and Antenna Jack)

  • Weight

    Wireless Head with Mic Capsule: 6.5 oz (184.27g)
    Handheld Transmitter: 12.2 oz (345.86g)
    Receiver: 2.71 lbs (1.23kg)

  • UPC Code

    800549898348

About Electro-Voice RE3-ND86

It's the RE3-ND86 Wireless Handheld System, a professional-grade, high-quality audio solution from Electro-Voice, a brand renowned for its reliable and durable audio equipment. This versatile system is designed to deliver superior audio performance for a variety of applications, including live performances, recording studios, and broadcasting.

The system includes the ND86-RC3 Wireless Head, equipped with an ND86 Super Cardioid Microphone Capsule. This dynamic cardioid microphone head is designed for wireless handheld transmitters, offering excellent acoustic control even in large venues. The sound it produces is present, smooth, and detailed, thanks to its large diaphragm dynamic capsule that creates a rich and detailed frequency response. The microphone head also features a shock-mounted capsule that minimizes handling noise, and a Memraflex grille that resists denting, ensuring your microphone head remains protected and looking good for years to come.

The RE3-HHT Handheld Transmitter, a robust and lightweight UHF handheld transmitter body, is part of the package. It's designed for professional performance and presentation applications, with a sync function for easy frequency setup and selectable low and high output power. The transmitter operates on 2 AA alkaline or rechargeable NiMH cells and features recharging contacts for use with the optional BC2 charging station.

The RE3-RX Diversity Receiver is a professional rack-mountable, 1/2 space diversity receiver that functions as the control center for the RE3 wireless set. It features clear frequency scanning and wireless synchronization to the transmitter, along with balanced XLR and unbalanced 1/4" TRS outputs. The receiver's diversity reception technology minimizes the chances of signal dropouts, providing two separate antenna locations that are electronically chosen based on signal strength and stability.

The RE3-ND86 Wireless Handheld System operates on the 560-596 MHz frequency range, ensuring clear, reliable audio transmission without interference. This allows performers to move freely on stage without compromising audio quality. This system is not just a piece of equipment; it's a reliable partner for all your audio needs.

Electro-Voice RE3-ND86 Features

  • Professional-grade RE3-ND86 Wireless Handheld System for superior audio performance
  • Includes ND86-RC3 Wireless Head with an ND86 Super Cardioid Microphone Capsule for clear, detailed sound
  • Robust and lightweight RE3-HHT Handheld Transmitter with easy frequency setup and selectable output power
  • RE3-RX Diversity Receiver with clear frequency scanning and wireless synchronization for reliable audio transmission
  • Operates on the 560-596 MHz frequency range for interference-free performance
  • Designed for a variety of applications, including live performances, recording studios, and broadcasting

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Experience superior sound quality with the Electro-Voice ND86 wireless microphone system.
  • Achieve crystal-clear vocals with the ND86 supercardioid microphone capsule, designed for clarity.
  • Enjoy freedom of movement with a reliable wireless range, perfect for dynamic stage performances.
  • The RE3-RX diversity receiver ensures a stable signal, minimizing dropouts during crucial moments.
  • Easy to set up and use, this handheld wireless microphone system is ideal for any venue.
  • Built for durability, the Electro-Voice wireless system offers years of reliable performance.

What's in the box:

  • Electro-Voice ND86-RC3 Wireless Head with ND86 Microphone Capsule
  • RE3-HHT Handheld Transmitter
  • RE3-RX Diversity Receiver
  • Microphone Stand Adapter
  • 2x Receiver Antennas
  • Universal Power Supply
  • 2x AA Batteries
  • Receiver Rack Mounting Hardware
  • Owner's Manual
  • Documentation Packet
  • Electro-Voice 3 Year Limited Warranty
