Electro-Voice RE3-ND96 Wireless Handheld System, 653-663MHz
Electro-Voice RE3-ND96: Picture 1 thumbnail
Electro-Voice RE3-ND96: Picture 2 thumbnail
Electro-Voice RE3-ND96: Picture 3 thumbnail
See all Electro-Voice items

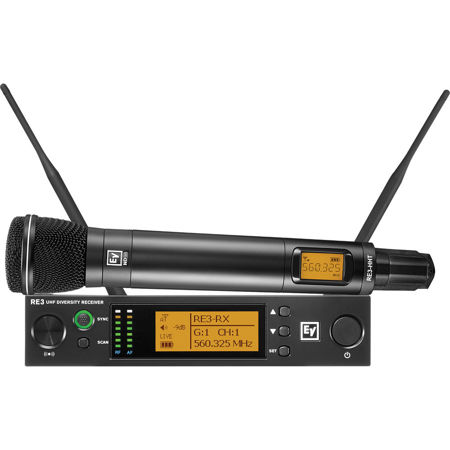

Electro-Voice RE3-ND96 Wireless Handheld System, Includes ND96-RC3 Wireless Head with ND96 Super Cardioid Microphone Capsule, RE3-HHT Handheld Transmitter and RE3-RX Diversity Receiver, 653-663MHz

SKU: EVF01U354211 MFR: F.01U.354.211
Be the first to review this itemAsk a Question
$739.00
$799.00
Save: $60 (8%)
OR
$124/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice wireless microphone system, perfect for live vocals.
  • Enjoy freedom of movement with a reliable wireless range, ideal for dynamic stage performances and events.
  • The ND96 super cardioid capsule reduces feedback, ensuring clear audio in noisy environments; a great vocal mic.
  • Get up to 8 hours of battery life with AA batteries, so this handheld wireless microphone is great for long events.
  • This wireless handheld system is easy to set up and use, making it great for churches, schools, and presenters.
  • Built with durable materials, this Electro-Voice wireless microphone system withstands the rigors of touring.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Electro-Voice RE3-ND96 Specifications

Wireless Head with Mic Capsule

Wireless Head with Mic Capsule

Jump to...

  • Element type

    Dynamic neodymium magnet structure

  • Frequency response, close

    30 Hz-15 kHz

  • Frequency response, far

    140 Hz-15 kHz

  • Polar pattern

    Supercardioid

  • Sensitivity, open circuit voltage

    In Flat position: 4.7 mV/Pascal (-46.5 dBV/Pa)
    In Vocal presence position: 3.2 mV/Pascal (-50 dBV/Pa) at 1kHz

  • Maximum SPL

    136.5 dB SPL (1% THD)

  • Impedance

    1000 ohms

  • Power requirements

    4-8 VDC

  • Polarity

    Positive pressure on diaphragm produces positive voltage at center contact relative to ground contact

  • Electrical contact

    3-Ring/3-Pin

  • Threaded coupling

    1.25" (31.75mm) diameter
    28 UN-2A thread pitch

  • Finish

    Black polyurethane paint

  • Materials

    Aluminum, steel, steel wire grille screen

Handheld Transmitter

Jump to...

  • Frequency Oscillation Mode

    Phase-locked loop (PLL)

  • Sync Frequency

    Ultrasonic

  • Display By

    LCD + LED

  • Function Controls

    Power, mute, group, channel, frequency, sensitivity adjustment, RF power, auto off, key lock

  • RF Stability

    <+/-10kHz at Fc

  • Modulation Frequency Shift

    Wideband FM
    +/-48kHz deviation

  • Harmonic Radiation

    <-50dBc

  • Battery

    2 x AA alkaline battery or NiMH rechargeable battery

  • Charging Contacts

    Yes

  • Microphone Coupling

    1.25" (31.75mm) diameter
    28 UN-2A thread pitch

  • Microphone Electrical Contact

    3-ring/3-pin

  • Finish

    Black polyurethane paint

Receiver

Jump to...

  • Frequency Oscillation Mode

    Phase-locked loop (PLL)

  • Carrier Frequency Range

    6M: 653 - 663 MHz

  • Selectable frequencies

    400

  • Transmit output power

    10 and 20 mW

  • Sync Frequency

    Ultrasonic 40 kHz

  • Diversity

    Antenna diversity

  • Bandwidth

    36MHz

  • Signal/Noise Ratio

    >100dB(A)

  • Total Harmonic Distortion (Thd)

    <0.6% at 1kHz

  • Receiving Sensitivity

    -81dBm for -12dB SINAD

  • Frequency Response

    51Hz to 16kHz +/-2dB (HHT)

  • Antenna Type

    Detachable 1/2 wave with BNC connector

  • Antenna Booster Power

    DC12 - 15V/100mA

  • Function Display By

    LCD

  • Contents Of Display

    Group, channel, frequency, antenna A/B, transmitter battery level, transmitter status (mute, live, or no sync), output level attenuation, AF indication, RF indication, key lock indicator

  • Control Functions

    Power, scan, frequency, group, channel, squelch, TX sensitivity, TX attenuation, TX RF power, TX auto off, TX key lock, TX display info, TX sync configuration, RX output volume, RX output level, RX antenna booster power, RX key lock, RX display contrast, RX display brightness, RX system reset

  • Sync Data Options

    Frequency, group, channel, sensitivity level, attenuation status, RF power, auto off status, key lock status, transmitter display (freq or Gp/Ch)

  • Audio Frequency Output Level

    Ref: +/-22.5kHz Dev at 1kHz Tone
    1/4" (6.3mm) Phone Jack: -10dBV
    XLR Jack: -4dBV(Line), -24dBV(MIC)

  • Audio Frequency Output Impedance

    240 Ohms (unbalanced) 1400 Ohms (balanced)

  • Squelch and noise muting

    Noise muting and tone code locking

  • Output Ports

    1 x balanced XLRM jack 1 x unbalanced 1/4" TS (6.3mm) jack

  • Power Supply

    DC12 to 15V/500mA

  • Finish

    Black polyurethane paint

General

Jump to...

  • Dimensions

    Wireless Head with Mic Capsule (LxDia.): 3.3 x 2" (83.82 x 50.80mm)
    Handheld Transmitter (HxW): 7.52 x 1.46" (191.01 x 37.08mm) (Without Head and width at threaded end)
    Handheld Transmitter (HxW): 7.52 x 0.85" (191.01 x 21.59mm) (Without Head and width at Control Cover)
    Receiver(HxWxD): 1.85 x 8.27 x 6.89" (46.99 x 210.06 x 175.01mm) (With Feet Attached and Antenna Jack)
    Receiver(HxWxD): 1.73 x 8.27 x 6.1" (43.94 x 210.06 x 154.94mm) (Without Feet Attached and Antenna Jack)

  • Weight

    Wireless Head with Mic Capsule: 6.8 oz (192.78g)
    Handheld Transmitter: 12.2 oz (345.86g)
    Receiver: 2.71 lbs (1.23kg)

Other

Jump to...

  • UPC Code

    800549898409

About Electro-Voice RE3-ND96

Experience the pinnacle of wireless audio performance with the RE3-ND96 Wireless Handheld System, a professional-grade solution designed to elevate your live performances and presentations. This system, featuring the dynamic ND96 supercardioid microphone, is engineered by Electro-Voice, a brand synonymous with durable, high-quality, and advanced audio equipment.

The ND96 microphone capsule is renowned for its powerful, rich, and detailed sound output, ensuring your voice cuts through even in the most demanding acoustic environments. With exceptionally high gain before feedback, the ND96 provides superior acoustic control on loud stages, allowing you to perform with confidence.

Setting up the RE3-ND96 is a breeze, thanks to the RE3's clear frequency scan and sync functions. The robust RE3-HHT handheld transmitter and the RE3-RX diversity receiver work together to deliver a rock-solid wireless system performance that you can rely on.

The ND96-RC3 wireless head is a testament to Electro-Voice's commitment to professional audio quality. Its large diaphragm dynamic capsule offers a rich and detailed frequency response, while the selectable vocal presence tuning allows you to tailor the sound to your performance needs. The innovative shock-mounted capsule reduces handling noise, ensuring that your audience hears you and not the handling of the microphone.

The RE3-HHT handheld transmitter is not only lightweight but also constructed with a robust metal body, making it ideal for the rigors of live performance. It offers selectable output power and a generous 36 MHz tuning bandwidth, providing flexibility and reliability for any event.

The RE3-RX diversity receiver is the heart of this wireless system, featuring clear frequency scanning and wireless synchronization with the transmitter. Its diversity reception technology minimizes dropouts, and the easy-to-read LCD display keeps all essential information at your fingertips.

Whether you're belting out vocals in a live concert, delivering a keynote speech at a corporate event, or performing in a theater production, the RE3-ND96 Wireless Handheld System is designed to meet the needs of professionals who demand the best in wireless audio technology. Experience the clarity, reliability, and versatility of Electro-Voice's RE3-ND96 at your next event.

Electro-Voice RE3-ND96 Features

  • Professional-grade wireless handheld system for live performances and presentations
  • Features the dynamic ND96 supercardioid microphone for powerful, rich, and detailed sound
  • Easy setup with clear frequency scan and sync functions for reliable wireless performance
  • ND96-RC3 wireless head with large diaphragm dynamic capsule for rich & detailed frequency response
  • Robust RE3-HHT handheld transmitter with selectable output power and 36 MHz tuning bandwidth
  • RE3-RX diversity receiver with clear frequency scanning, wireless synchronization, and easy-to-read LCD display

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Experience superior sound quality with this Electro-Voice wireless microphone system, perfect for live vocals.
  • Enjoy freedom of movement with a reliable wireless range, ideal for dynamic stage performances and events.
  • The ND96 super cardioid capsule reduces feedback, ensuring clear audio in noisy environments; a great vocal mic.
  • Get up to 8 hours of battery life with AA batteries, so this handheld wireless microphone is great for long events.
  • This wireless handheld system is easy to set up and use, making it great for churches, schools, and presenters.
  • Built with durable materials, this Electro-Voice wireless microphone system withstands the rigors of touring.

What's in the box:

  • Electro-Voice ND96-RC3 Wireless Head with ND96 Microphone Capsule
  • RE3-HHT Handheld Transmitter
  • RE3-RX Diversity Receiver
  • Microphone Stand Adapter
  • 2x Receiver Antennas
  • Universal Power Supply
  • 2x AA Batteries
  • Receiver Rack Mounting Hardware
  • Owner's Manual
  • Documentation Packet
  • Electro-Voice 3 Year Limited Warranty
