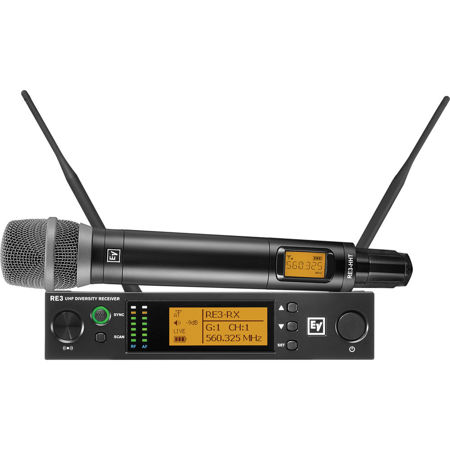

Electro-Voice RE3-RE520 Wireless Handheld System, 560-596MHz
Electro-Voice RE3-RE520: Picture 1 thumbnail
Electro-Voice RE3-RE520: Picture 2 thumbnail
Electro-Voice RE3-RE520: Picture 3 thumbnail
See all Electro-Voice items

Electro-Voice RE3-RE520 Wireless Handheld System, Includes RE520-RC3 Wireless Head with RE520 Super Cardioid Microphone Capsule, RE3-HHT Handheld Transmitter and RE3-RX Diversity Receiver, 560-596MHz

SKU: EVF01U354220 MFR: F.01U.354.220
Be the first to review this itemAsk a Question
$839.00
$937.00
Save: $98 (10%)
OR
$70/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this Electro-Voice wireless handheld microphone system, perfect for live vocals.
  • Achieve superior sound quality using the RE520 super cardioid microphone capsule for focused audio capture.
  • Enjoy freedom of movement with a reliable wireless range, ideal for dynamic stage performances and presentations.
  • The RE3-RX diversity receiver ensures a stable signal, minimizing dropouts during critical moments of use.
  • Benefit from long-lasting performance with up to 8 hours of battery life, keeping you powered through events.
  • Easily set up and operate this user-friendly wireless microphone; great for both beginners and professionals.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Electro-Voice RE3-RE520 Specifications

Wireless Head with Mic Capsule

Wireless Head with Mic Capsule

Jump to...

  • Element type

    Self-biased condenser

  • Frequency response

    50 Hz-20 kHz

  • Polar pattern

    Super Cardioid

  • Sensitivity, open circuit voltage

    5.6 mV/Pascal (-45 dBV/Pa) at 1kHz

  • Clipping (Maximum SPL)

    139 dB SPL (1% THD)

  • Self noise

    22 dB SPL "A" weighed (0 dB=20 MuPa)

  • Dynamic range

    117 dB

  • Signal-to-Noise ratio

    72 dB

  • Output Impedance

    1000 ohms

  • Power requirements

    4-8 VDC phantom power

  • Polarity

    Positive pressure on diaphragm produces positive voltage at center contact relative to ground contact

  • Electrical contact

    3-Ring/3-Pin

  • Threaded coupling

    1.25" (31.75mm) diameter
    28 UN-2A thread pitch

  • Finish

    Black polyurethane paint

  • Materials

    Aluminum, steel, steel wire grille screen

Handheld Transmitter

Jump to...

  • Frequency Oscillation Mode

    Phase-locked loop (PLL)

  • Sync Frequency

    Ultrasonic

  • Display By

    LCD + LED

  • Function Controls

    Power, mute, group, channel, frequency, sensitivity adjustment, RF power, auto off, key lock

  • RF Stability

    <+/-10kHz at Fc

  • Modulation Frequency Shift

    Wideband FM
    +/-48kHz deviation

  • Harmonic Radiation

    <-50dBc

  • Battery

    2 x AA alkaline battery or NiMH rechargeable battery

  • Charging Contacts

    Yes

  • Microphone Coupling

    1.25" (31.75mm) diameter
    28 UN-2A thread pitch

  • Microphone Electrical Contact

    3-ring/3-pin

  • Finish

    Black polyurethane paint

Receiver

Jump to...

  • Frequency Oscillation Mode

    Phase-locked loop (PLL)

  • Carrier Frequency Range

    5H: 560 - 596 MHz

  • Selectable frequencies

    1440

  • Transmit output power

    10 and 50 mW

  • Sync Frequency

    Ultrasonic 40 kHz

  • Diversity

    Antenna diversity

  • Bandwidth

    36MHz

  • Signal/Noise Ratio

    >100dB(A)

  • Total Harmonic Distortion (Thd)

    <0.6% at 1kHz

  • Receiving Sensitivity

    -81dBm for -12dB SINAD

  • Frequency Response

    51Hz to 16kHz +/-2dB (HHT)

  • Antenna Type

    Detachable 1/2 wave with BNC connector

  • Antenna Booster Power

    DC12 - 15V/100mA

  • Function Display By

    LCD

  • Contents Of Display

    Group, channel, frequency, antenna A/B, transmitter battery level, transmitter status (mute, live, or no sync), output level attenuation, AF indication, RF indication, key lock indicator

  • Control Functions

    Power, scan, frequency, group, channel, squelch, TX sensitivity, TX attenuation, TX RF power, TX auto off, TX key lock, TX display info, TX sync configuration, RX output volume, RX output level, RX antenna booster power, RX key lock, RX display contrast, RX display brightness, RX system reset

  • Sync Data Options

    Frequency, group, channel, sensitivity level, attenuation status, RF power, auto off status, key lock status, transmitter display (freq or Gp/Ch)

  • Audio Frequency Output Level

    Ref: +/-22.5kHz Dev at 1kHz Tone
    1/4" (6.3mm) Phone Jack: -10dBV
    XLR Jack: -4dBV(Line), -24dBV(MIC)

  • Audio Frequency Output Impedance

    240 Ohms (unbalanced) 1400 Ohms (balanced)

  • Squelch and noise muting

    Noise muting and tone code locking

  • Output Ports

    1 x balanced XLRM jack 1 x unbalanced 1/4" TS (6.3mm) jack

  • Power Supply

    DC12 to 15V/500mA

  • Finish

    Black polyurethane paint

General

Jump to...

  • Dimensions

    Wireless Head with Mic Capsule (LxDia.): 3.36 x 1.95" (85.34 x 49.53mm)
    Handheld Transmitter (HxW): 7.52 x 1.46" (191.01 x 37.08mm) (Without Head and width at threaded end)
    Handheld Transmitter (HxW): 7.52 x 0.85" (191.01 x 21.59mm) (Without Head and width at Control Cover)
    Receiver(HxWxD): 1.85 x 8.27 x 6.89" (46.99 x 210.06 x 175.01mm) (With Feet Attached and Antenna Jack)
    Receiver(HxWxD): 1.73 x 8.27 x 6.1" (43.94 x 210.06 x 154.94mm) (Without Feet Attached and Antenna Jack)

  • Weight

    Wireless Head with Mic Capsule: 4.6 oz (130.41g)
    Handheld Transmitter: 12.2 oz (345.86g)
    Receiver: 2.71 lbs (1.23kg)

Other

Jump to...

  • UPC Code

    800549898492

About Electro-Voice RE3-RE520

Why settle for anything less than the exceptional clarity and performance of the Electro-Voice RE3-RE520 Wireless Handheld System for your live performances This professional-grade UHF wireless set is engineered to deliver unparalleled vocal clarity and presence, making it the ideal choice for vocalists, speakers, and performers seeking a reliable and high-quality audio experience.

The RE3-RE520 system features the dynamic RE520-RC3 Wireless Head equipped with the RE520 Super Cardioid Microphone Capsule, renowned for its detailed, full, and vivid sound profile. The supercardioid pattern ensures superior acoustic isolation, focusing on the main sound source while minimizing background noise, thus providing a cleaner mix and maximum feedback rejection.

The RE520 microphone head is a testament to Electro-Voice's commitment to audio excellence. Its premium condenser element captures the nuances of vocal performances with exceptional detail, supported by a multi-stage pop filter that effectively reduces breath blasts and plosives. The selectable high-pass filter allows for tailored audio output, reducing low-frequency content when necessary.

The RE3-HHT Handheld Transmitter is a testament to durability and versatility. Its robust metal body is designed to withstand the rigors of live performances, while the ultrasonic sync function ensures effortless frequency setup. With selectable output power and up to 36 MHz tuning bandwidth, this transmitter is equipped to handle diverse range requirements and avoid interference with ease.

Completing the system, the RE3-RX Diversity Receiver stands as the control center of your wireless setup. Its advanced diversity reception technology minimizes the risk of signal dropouts, ensuring a stable and strong connection throughout your performance. The receiver's clear frequency scanning and wireless synchronization capabilities make setup a breeze, while the expansive tuning bandwidth accommodates a wide range of frequencies for seamless operation.

In summary, the Electro-Voice RE3-RE520 Wireless Handheld System is a durable, high-quality, professional, reliable, and versatile solution for anyone in need of superior wireless audio performance. With its wide frequency range of 560-596 MHz, it offers flexibility and compatibility that are second to none, making it the clear choice for professionals who demand the best in wireless microphone technology.

Electro-Voice RE3-RE520 Features

  • Professional-grade UHF wireless handheld system designed for superior vocal clarity and presence
  • Features the RE520-RC3 Wireless Head with RE520 Super Cardioid Microphone Capsule for detailed, full, and vivid sound
  • Equipped with the RE3-HHT Handheld Transmitter, offering robust construction and easy frequency setup
  • Includes the RE3-RX Diversity Receiver, ensuring stable and strong connections with advanced diversity reception technology
  • Offers a wide frequency range of 560-596 MHz for greater flexibility and compatibility
  • Designed for live performances, concerts, theater productions, and presentations, allowing performers to move freely without wired constraints

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this Electro-Voice wireless handheld microphone system, perfect for live vocals.
  • Achieve superior sound quality using the RE520 super cardioid microphone capsule for focused audio capture.
  • Enjoy freedom of movement with a reliable wireless range, ideal for dynamic stage performances and presentations.
  • The RE3-RX diversity receiver ensures a stable signal, minimizing dropouts during critical moments of use.
  • Benefit from long-lasting performance with up to 8 hours of battery life, keeping you powered through events.
  • Easily set up and operate this user-friendly wireless microphone; great for both beginners and professionals.

What's in the box:

  • Electro-Voice RE520-RC3 Wireless Head with RE520 Microphone Capsule
  • RE3-HHT Handheld Transmitter
  • RE3-RX Diversity Receiver
  • Microphone Stand Adapter
  • 2x Receiver Antennas
  • Universal Power Supply
  • 2x AA Batteries
  • Receiver Rack Mounting Hardware
  • Owner's Manual
  • Documentation Packet
  • Electro-Voice 3 Year Limited Warranty
