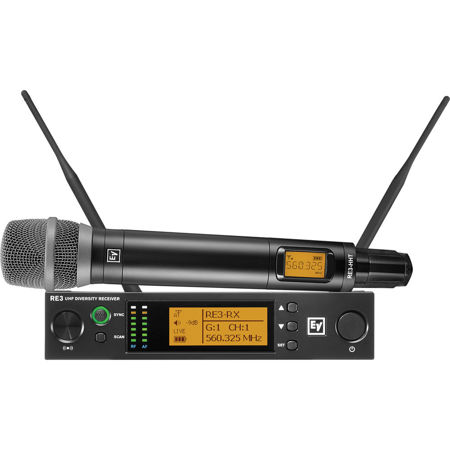

Electro-Voice RE3-RE520 Wireless Handheld System, Includes RE520-RC3 Wireless Head with RE520 Super Cardioid Microphone Capsule, RE3-HHT Handheld Transmitter and RE3-RX Diversity Receiver, 653-663MHz

SKU: EVF01U354223 MFR: F.01U.354.223
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this professional handheld wireless microphone system, perfect for live vocals.
  • Enjoy freedom of movement on stage with a reliable wireless range, ideal for dynamic performances and presentations.
  • The robust RE520 microphone capsule delivers exceptional sound quality, capturing every nuance of your voice.
  • Benefit from long-lasting battery life, ensuring your wireless microphone is ready for extended events and shows.
  • Set up is a breeze! This user-friendly wireless microphone system is perfect for both beginners and seasoned pros.
  • Built to last, the Electro-Voice wireless handheld microphone system offers durability and reliable performance, gig after gig.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice RE3-RE520 Specifications

Wireless Head with Mic Capsule

Wireless Head with Mic Capsule

Jump to...
  • Element type

    Self-biased condenser

  • Frequency response

    50 Hz-20 kHz

  • Polar pattern

    Super Cardioid

  • Sensitivity, open circuit voltage

    5.6 mV/Pascal (-45 dBV/Pa) at 1kHz

  • Clipping (Maximum SPL)

    139 dB SPL (1% THD)

  • Self noise

    22 dB SPL "A" weighed (0 dB=20 MuPa)

  • Dynamic range

    117 dB

  • Signal-to-Noise ratio

    72 dB

  • Output Impedance

    1000 ohms

  • Power requirements

    4-8 VDC phantom power

  • Polarity

    Positive pressure on diaphragm produces positive voltage at center contact relative to ground contact

  • Electrical contact

    3-Ring/3-Pin

  • Threaded coupling

    1.25" (31.75mm) diameter
    28 UN-2A thread pitch

  • Finish

    Black polyurethane paint

  • Materials

    Aluminum, steel, steel wire grille screen

Handheld Transmitter

Jump to...
  • Frequency Oscillation Mode

    Phase-locked loop (PLL)

  • Sync Frequency

    Ultrasonic

  • Display By

    LCD + LED

  • Function Controls

    Power, mute, group, channel, frequency, sensitivity adjustment, RF power, auto off, key lock

  • RF Stability

    <+/-10kHz at Fc

  • Modulation Frequency Shift

    Wideband FM
    +/-48kHz deviation

  • Harmonic Radiation

    <-50dBc

  • Battery

    2 x AA alkaline battery or NiMH rechargeable battery

  • Charging Contacts

    Yes

  • Microphone Coupling

    1.25" (31.75mm) diameter
    28 UN-2A thread pitch

  • Microphone Electrical Contact

    3-ring/3-pin

  • Finish

    Black polyurethane paint

Receiver

Jump to...
  • Frequency Oscillation Mode

    Phase-locked loop (PLL)

  • Carrier Frequency Range

    6M: 653 - 663 MHz

  • Selectable frequencies

    400

  • Transmit output power

    10 and 20 mW

  • Sync Frequency

    Ultrasonic 40 kHz

  • Diversity

    Antenna diversity

  • Bandwidth

    10MHz

  • Signal/Noise Ratio

    >100dB(A)

  • Total Harmonic Distortion (Thd)

    <0.6% at 1kHz

  • Receiving Sensitivity

    -81dBm for -12dB SINAD

  • Frequency Response

    51Hz to 16kHz +/-2dB (HHT)

  • Antenna Type

    Detachable 1/2 wave with BNC connector

  • Antenna Booster Power

    DC12 - 15V/100mA

  • Function Display By

    LCD

  • Contents Of Display

    Group, channel, frequency, antenna A/B, transmitter battery level, transmitter status (mute, live, or no sync), output level attenuation, AF indication, RF indication, key lock indicator

  • Control Functions

    Power, scan, frequency, group, channel, squelch, TX sensitivity, TX attenuation, TX RF power, TX auto off, TX key lock, TX display info, TX sync configuration, RX output volume, RX output level, RX antenna booster power, RX key lock, RX display contrast, RX display brightness, RX system reset

  • Sync Data Options

    Frequency, group, channel, sensitivity level, attenuation status, RF power, auto off status, key lock status, transmitter display (freq or Gp/Ch)

  • Audio Frequency Output Level

    Ref: +/-22.5kHz Dev at 1kHz Tone
    1/4" (6.3mm) Phone Jack: -10dBV
    XLR Jack: -4dBV(Line), -24dBV(MIC)

  • Audio Frequency Output Impedance

    240 Ohms (unbalanced) 1400 Ohms (balanced)

  • Squelch and noise muting

    Noise muting and tone code locking

  • Output Ports

    1 x balanced XLRM jack 1 x unbalanced 1/4" TS (6.3mm) jack

  • Power Supply

    DC12 to 15V/500mA

  • Finish

    Black polyurethane paint

General

Jump to...
  • Dimensions

    Wireless Head with Mic Capsule (LxDia.): 3.36 x 1.95" (85.34 x 49.53mm)
    Handheld Transmitter (HxW): 7.52 x 1.46" (191.01 x 37.08mm) (Without Head and width at threaded end)
    Handheld Transmitter (HxW): 7.52 x 0.85" (191.01 x 21.59mm) (Without Head and width at Control Cover)
    Receiver(HxWxD): 1.85 x 8.27 x 6.89" (46.99 x 210.06 x 175.01mm) (With Feet Attached and Antenna Jack)
    Receiver(HxWxD): 1.73 x 8.27 x 6.1" (43.94 x 210.06 x 154.94mm) (Without Feet Attached and Antenna Jack)

  • Weight

    Wireless Head with Mic Capsule: 4.6 oz (130.41g)
    Handheld Transmitter: 12.2 oz (345.86g)
    Receiver: 2.71 lbs (1.23kg)

  • UPC Code

    800549898508

About Electro-Voice RE3-RE520

Explore the world of professional audio with the RE3-RE520 Wireless Handheld System. This advanced system includes the RE520-RC3 Wireless Head, equipped with the RE520 Super Cardioid Microphone Capsule, the RE3-HHT Handheld Transmitter, and the RE3-RX Diversity Receiver. Operating on a 653-663MHz frequency range, this system is designed for superior sound quality and reliable performance.

The RE520-RC3 Wireless Head features a premium-grade, high-performance, condenser supercardioid thread-on vocal microphone head. It's designed to deliver exceptional detail and vivid clarity, making it perfect for expressive vocal performances. The supercardioid pattern provides excellent acoustic isolation, controlling off-axis sound from nearby sources. The multi-stage pop filter minimizes breath blasts and plosives, while the selectable high-pass filter reduces undesirable low-frequency content when engaged.

The RE3-HHT Handheld Transmitter is a robust, lightweight UHF handheld transmitter body, ideally suited for professional performance and presentation applications. Its sync function ensures easy frequency setup, while the selectable low and high output power helps overcome challenges of varying transmission ranges. The transmitter operates on 2 AA alkaline or rechargeable NiMH cells and features recharging contacts for use with the optional BC2 charging station.

The RE3-RX Diversity Receiver is a professional, rack-mountable, 1/2 space diversity receiver. It features clear frequency scanning, wireless synchronization to the transmitter, balanced XLR, and unbalanced 1/4" TRS outputs. The receiver pairs perfectly with any RE3-HHT handheld or RE3-BPT bodypack transmitter within the same band. Its diversity reception technology minimizes chances of signal dropouts by providing two separate antenna locations, chosen based on signal strength and stability.

Whether you're performing live, recording in a studio, or broadcasting, the RE3-RE520 Wireless Handheld System offers a high-quality, durable, and reliable solution for your audio needs.

Electro-Voice RE3-RE520 Features

  • High-performance RE520-RC3 Wireless Head with Super Cardioid Microphone Capsule for detailed, vivid sound
  • Robust RE3-HHT Handheld Transmitter with easy frequency setup and selectable power output
  • Professional RE3-RX Diversity Receiver with clear frequency scanning and wireless synchronization
  • Advanced supercardioid pattern for excellent acoustic isolation and feedback control
  • Multi-stage pop filter and high-pass filter for superior audio clarity
  • Versatile system compatible with a variety of wireless microphone systems, ideal for live performances, recording studios, and broadcasting

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this professional handheld wireless microphone system, perfect for live vocals.
  • Enjoy freedom of movement on stage with a reliable wireless range, ideal for dynamic performances and presentations.
  • The robust RE520 microphone capsule delivers exceptional sound quality, capturing every nuance of your voice.
  • Benefit from long-lasting battery life, ensuring your wireless microphone is ready for extended events and shows.
  • Set up is a breeze! This user-friendly wireless microphone system is perfect for both beginners and seasoned pros.
  • Built to last, the Electro-Voice wireless handheld microphone system offers durability and reliable performance, gig after gig.

What's in the box:

  • Electro-Voice RE520-RC3 Wireless Head with RE520 Microphone Capsule
  • RE3-HHT Handheld Transmitter
  • RE3-RX Diversity Receiver
  • Microphone Stand Adapter
  • 2x Receiver Antennas
  • Universal Power Supply
  • 2x AA Batteries
  • Receiver Rack Mounting Hardware
  • Owner's Manual
  • Documentation Packet
  • Electro-Voice 3 Year Limited Warranty
