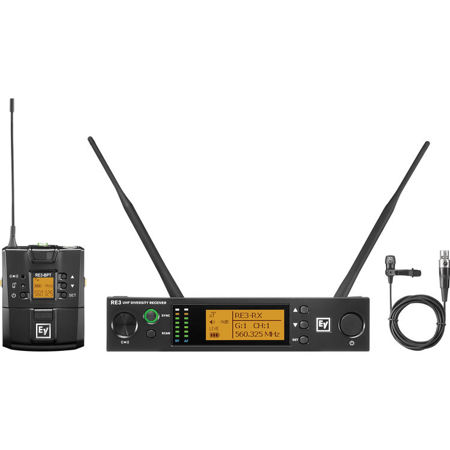

Electro-Voice RE3-BPCL Wireless Bodypack System, Includes RE3-ACC-CL3 Cardioid Lavalier Microphone with TA4F Connector, RE3-RX Diversity Receiver and RE3-BPT Bodypack Transmitter, 488-524MHz

SKU: EVF01U354231 MFR: F.01U.354.231
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this professional lavalier wireless microphone system.
  • Achieve superior sound quality using the cardioid polar pattern of this wireless microphone.
  • Enjoy freedom of movement with a reliable wireless range for dynamic presentations.
  • Long-lasting battery life ensures this lavalier microphone is ready for extended use.
  • Easy to use bodypack transmitter makes setup a breeze, perfect for on-the-go recording.
  • Durable construction ensures this wireless microphone system withstands rigorous use.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice RE3-BPCL Specifications

Lavalier Mic

Lavalier Mic

Jump to...
  • Element type

    Self-biased condenser

  • Frequency response

    100 Hz - 15 kHz

  • Polar pattern

    Cardioid

  • Sensitivity: open circuit voltage. 1kHz

    20 mV/Pascal (-34 dBV/PA)

  • Maximum SPL

    115 dB SPL

  • Impedance

    3700 ohms

  • Power requirements

    3-9 VDC

  • Polarity

    Pin #1 - Ground, shield
    Pin #2 - Audio
    Pin #3 - Bias voltage
    Pin #4 - N/C

  • Microphone connector

    4-pin mini plug

  • Head finish

    Non-reflecting black

  • Material

    Die cast aluminum, steel wire cloth grille, black flexible PVC cable

Receiver

Jump to...
  • Frequency Oscillation Mode

    Phase-locked loop (PLL)

  • Carrier Frequency Range

    5L: 488 - 524 MHz

  • Selectable frequencies

    1440

  • Transmit output power

    10 and 50 mW

  • Sync Frequency

    Ultrasonic 40 kHz

  • Diversity

    Antenna diversity

  • Bandwidth

    36 MHz

  • Signal/Noise Ratio

    >100dB(A)

  • Total Harmonic Distortion (THD)

    <0.6% at 1kHz

  • Receiving Sensitivity

    -81dBm for -12dB SINAD

  • Frequency Response

    63Hz to 16kHz +/-2dB (BPT)

  • Antenna Type

    Detachable 1/2 wave with BNC connector

  • Antenna Booster Power

    DC12 - 15V/100mA

  • Function Display By

    LCD

  • Contents Of Display

    Group, channel, frequency, antenna A/B, transmitter battery level, transmitter status (mute, live, or no sync), output level attenuation, AF indication, RF indication, key lock indicator

  • Control Functions

    Power, scan, frequency, group, channel, squelch, TX sensitivity, TX attenuation, TX RF power, TX auto off, TX key lock, TX display info, TX sync configuration, RX output volume, RX output level, RX antenna booster power, RX key lock, RX display contrast, RX display brightness, RX system reset

  • Sync Data Options

    Frequency, group, channel, sensitivity level, attenuation status, RF power, auto off status, key lock status, transmitter display (freq or Gp/Ch)

  • Audio Frequency Output Level

    Ref: +/-22.5kHz Dev at 1kHz Tone
    1/4" (6.3mm) Phone Jack: -10dBV
    XLR Jack: -4dBV(Line), -24dBV(MIC)

  • Audio Frequency Output Impedance

    240 Ohms (unbalanced) 1400 Ohms (balanced)

  • Squelch and noise muting

    Noise muting and tone code locking

  • Output Ports

    1 x balanced XLRM jack 1 x unbalanced 1/4" TS (6.3mm) jack

  • Power Supply

    DC12 to 15V/500mA

  • Finish

    Black polyurethane paint

Bodypack Transmitter

Jump to...
  • Frequency oscillation mode

    Phase-locked loop (PLL)

  • Bandwidth limits (MHz)

    5L: 488 - 524 MHz

  • Tuning bandwidth

    36 MHz

  • Selectable frequencies

    1440

  • Transmit output power

    Low: 10mW
    High: 50mW

  • Sync frequency

    Ultrasonic

  • Display by

    LCD + LED

  • Function controls

    Power, mute, group, channel, frequency, sensitivity adjustment, input level attenuation, RF power, auto off, key lock

  • RF stability

    <+/-10kHz at Fc

  • Modulation frequency shift

    Wideband FM +/-48kHz deviation

  • Harmonic radiation

    < -50dBc

  • Input jack

    4-pin mini jack

  • Battery

    2 x AA alkaline battery or NiMH rechargeable battery

  • Charging contacts

    Yes

  • Finish

    Black polyurethane paint

General

Jump to...
  • Dimensions

    Lavalier Mic (Cable Length): 56.3" (1430.02mm)
    Lavalier Mic (LxDia.): 1.04 x 0.4" (26.42 x 10.16mm) (Head)
    Transmitter (HxWxD): 3.2 x 2.54 x 0.98" (81.28 x 64.52 x 24.89mm) (Without Antenna)
    Receiver (HxWxD): 1.85 x 8.27 x 6.89" (46.99 x 210.06 x 175.01mm) (With Feet Attached and Antenna Jack)
    Receiver (HxWxD): 1.73 x 8.27 x 6.1" (43.94 x 210.06 x 154.94mm) (Without Feet Attached and Antenna Jack)

  • Weight

    Lavalier Mic: 0.76 oz (21.55g)
    Transmitter: 6.14 oz (174.07g)
    Receiver: 2.71 lbs (1.23kg)

  • UPC Code

    800549898584

About Electro-Voice RE3-BPCL

You can elevate your audio performance and presentations with the RE3-BPCL Wireless Bodypack System. This comprehensive set includes the RE3-ACC-CL3 Cardioid Lavalier Microphone with TA4F Connector, RE3-RX Diversity Receiver, and RE3-BPT Bodypack Transmitter, operating within the 488-524MHz frequency range.

The RE3-ACC-CL3 Cardioid Lavalier Microphone is a robust, general-purpose microphone, specifically designed for presentations and public speaking. Its cardioid polar pattern rejects ambient sounds, providing acoustic isolation and increasing gain before feedback. This ensures a clear, intelligible voice even in situations where the ambient sound reinforcement system volume might cause an omnidirectional lavalier to feed back. The microphone comes with a small clothing clip for secure attachment to garments and a foam windscreen to effectively reduce wind noise.

The RE3-RX Diversity Receiver is a professional, rack-mountable, 1/2 space diversity receiver. It features clear frequency scanning and wireless synchronization to the transmitter. The receiver pairs perfectly with any RE3-HHT handheld or RE3-BPT bodypack transmitter within the same band. Its diversity reception technology minimizes the chances of signal dropouts by providing two separate antenna locations, which are electronically chosen based on signal strength and stability. The receiver's wide tuning bandwidth provides access to a wide range of frequencies, selectable in 25kHz steps for trouble-free operation of single and multi-channel systems.

The RE3-BPT Bodypack Transmitter is a small, lightweight yet robust UHF bodypack transmitter. It is easily worn and concealed, making it an ideal form factor for a wide variety of professional presentation and performance applications. The transmitter operates on 2 AA alkaline or rechargeable NiMH cells and features a unique magnetic sliding latch and lock mechanism for easy access to batteries.

With the RE3-BPCL Wireless Bodypack System, you can expect full and accurate sound, wide dynamic range, and frequency response, making it the perfect choice for your audio needs.

Electro-Voice RE3-BPCL Features

  • Cardioid lavalier microphone with TA4F connector for clear voice reproduction in presentations
  • UHF wireless diversity receiver with frequency scanning and sync for reliable performance
  • Robust bodypack transmitter with selectable output power and 36 MHz tuning bandwidth
  • Professional audio quality with wide dynamic range and frequency response
  • Easy-to-attach clothing clip and foam windscreen for secure and noise-reduced usage
  • Durable all-metal bodypack transmitter with magnetic latch for effortless battery access

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this professional lavalier wireless microphone system.
  • Achieve superior sound quality using the cardioid polar pattern of this wireless microphone.
  • Enjoy freedom of movement with a reliable wireless range for dynamic presentations.
  • Long-lasting battery life ensures this lavalier microphone is ready for extended use.
  • Easy to use bodypack transmitter makes setup a breeze, perfect for on-the-go recording.
  • Durable construction ensures this wireless microphone system withstands rigorous use.

What's in the box:

  • Electro-Voice RE3-ACC-CL3 Cardioid Lavalier Microphone with TA4F Connector
  • RE3-RX Diversity Receiver
  • RE3-BPT Bodypack Transmitter with Antenna and Beltclip
  • 2x Receiver Antennas
  • Universal Power Supply
  • 2x AA Batteries
  • Receiver Rack Mounting Hardware
  • Protective Zippered Pouch for Microphone- Clothing Clip for Microphone- Foam Windscreens for Microphone- Owner's Manual
  • Documentation Packet
  • Electro-Voice 3 Year Limited Warranty
