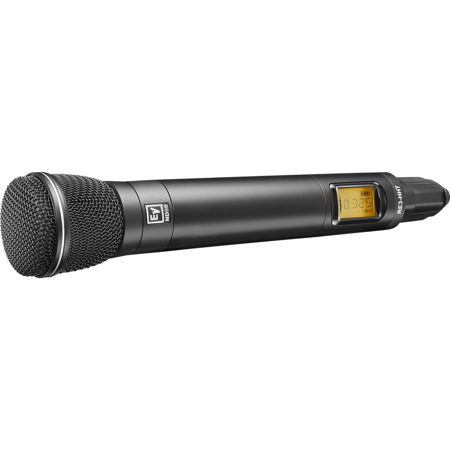

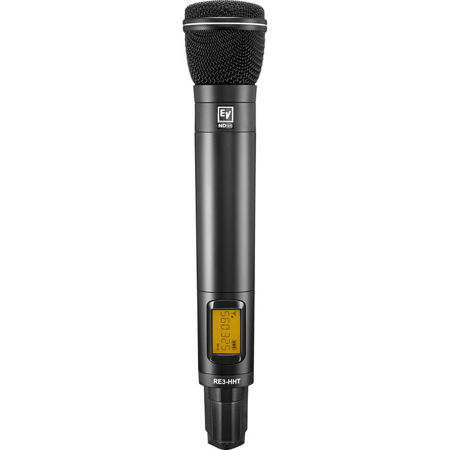

Electro-Voice RE3-HHT UHF Wireless Handheld Transmitter with ND96-RC3 Super Cardioid Microphone Capsule Head, 560-596MHz

SKU: EVF01U354244 MFR: F.01U.354.244
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice wireless microphone system.
  • Achieve vocal clarity with the ND96 super cardioid capsule; ideal for live performances.
  • Enjoy reliable connectivity within the 560-596 MHz range for uninterrupted audio.
  • This wireless handheld transmitter offers both 10mW and 50mW output power options.
  • Benefit from the long-lasting battery life using 2 AA batteries for extended use.
  • The durable design ensures this wireless microphone withstands the rigors of touring.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice RE3-ND96 Specifications

Wireless Head with Mic Capsule

Wireless Head with Mic Capsule

Jump to...
  • Element type

    Dynamic neodymium magnet structure

  • Frequency response, close

    30 Hz-15 kHz

  • Frequency response, far

    140 Hz-15 kHz

  • Polar pattern

    Supercardioid

  • Sensitivity, open circuit volt at 1 kHz

    In Flat position: 4.7 mV/Pascal (-46.5 dBV/Pa)
    In Vocal presence position: 3.2 mV/Pascal (-50 dBV/Pa)

  • Maximum SPL

    136.5 dB SPL (1% THD)

  • Impedance

    1000 ohms

  • Power requirements

    4-8 VDC

  • Polarity

    Positive pressure on diaphragm produces positive voltage at center contact relative to ground contact

  • Electrical contact

    3-Ring/3-Pin

  • Threaded coupling

    1.25" (31.75mm) diameter
    28 UN-2A thread pitch

  • Finish

    Black polyurethane paint

  • Materials

    Aluminum, steel, steel wire grille screen

Handheld Transmitter

Jump to...
  • Frequency Oscillation Mode

    Phase-locked loop (PLL)

  • Bandwidth limits

    5H: 560 - 596 MHz

  • Tuning bandwidth

    36 MHz

  • Selectable frequencies

    1440

  • Transmit output power

    10 and 50 mW

  • Sync Frequency

    Ultrasonic

  • Display By

    LCD + LED

  • Function Controls

    Power, mute, group, channel, frequency, sensitivity adjustment, RF power, auto off, key lock

  • RF Stability

    <+/-10kHz at Fc

  • Modulation Frequency Shift

    Wideband FM
    +/-48kHz deviation

  • Harmonic Radiation

    <-50dBc

  • Battery

    2 x AA alkaline battery or NiMH rechargeable battery

  • Charging Contacts

    Yes

  • Microphone Coupling

    1.25" (31.75mm) diameter
    28 UN-2A thread pitch

  • Microphone Electrical Contact

    3-ring/3-pin

  • Finish

    Black polyurethane paint

General

Jump to...
  • Dimensions

    Wireless Head with Mic Capsule (LxDia.): 3.3 x 2" (83.82 x 50.80mm)
    Handheld Transmitter (HxW): 7.52 x 1.46" (191.01 x 37.08mm) (Without Head and width at threaded end)
    Handheld Transmitter (HxW): 7.52 x 0.85" (191.01 x 21.59mm) (Without Head and width at Control Cover)

  • Weight

    Wireless Head with Mic Capsule: 6.8 oz (192.78g)
    Handheld Transmitter: 12.2 oz (345.86g)

  • UPC Code

    800549898713

About Electro-Voice RE3-ND96

When it comes to delivering high-quality audio for performances and presentations, the RE3-HHT UHF Wireless Handheld Transmitter with ND96-RC3 Super Cardioid Microphone Capsule Head, operating in the 560-596MHz frequency range, is a top-tier choice. This dynamic supercardioid microphone transmitter is designed to produce powerful, rich, and detailed sound, offering exceptionally high gain before feedback for superior acoustic control, even on the loudest stages.

The RE3-HHT transmitter is expertly paired with the RE3-RX diversity receiver, ensuring rock-solid system performance. It features a clear frequency scan and sync functions for quick and straightforward setup, enhancing the user experience.

The ND96-RC3 wireless head with the ND96 capsule is a standout feature of this handheld transmitter. It's designed to fit comfortably in the hand, thanks to its lightweight yet robust construction. The 1.25" diameter, 28 UN-2A thread pitch microphone head coupling allows it to accept mic heads using this common coupling convention, making it adaptable to a variety of microphone heads.

The large diaphragm dynamic capsule creates a rich and detailed frequency response, while the vocal presence emphasis switch allows for alternate sonic signatures. The shock-mounted capsule minimizes handling noise, ensuring clear and uninterrupted sound.

The RE3-HHT transmitter's all-metal body is both robust and durable, designed to withstand the rigors of professional use. It operates on 2 AA alkaline or rechargeable NiMH cells, offering flexibility in power options. The ultrasonic sync function simplifies system setup by syncing the transmitter to the receiver frequency tuning and other functional data.

The selectable output power (band specific) assists in overcoming the challenges of both long or short transmission ranges. The tuning bandwidth provides generous frequency tuning options, helping to avoid potential interference. The threaded coupling makes attaching and interchanging a variety of heads simple and convenient.

The RE3-HHT also features recharging contacts for functional use with the optional BC2 charging station, allowing the NiMH rechargeable cells within two bodypack transmitters to be charged without removal. This feature adds convenience and efficiency, making the RE3-HHT UHF Wireless Handheld Transmitter with ND96-RC3 Super Cardioid Microphone Capsule Head a reliable choice for professional audio needs.

Electro-Voice RE3-ND96 Features

  • High-quality UHF wireless handheld transmitter with ND96 dynamic supercardioid microphone capsule head
  • Delivers powerful, rich, and detailed sound with high gain before feedback for superior acoustic control
  • Lightweight yet robust construction with an all-metal body, designed for professional performance and presentation applications
  • Features a large diaphragm dynamic capsule for a rich and detailed frequency response
  • Easy system setup with ultrasonic sync function, selectable output power, and generous frequency tuning options
  • Recharging contacts compatible with optional BC2 charging station for efficient battery management

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Experience superior sound quality with this Electro-Voice wireless microphone system.
  • Achieve vocal clarity with the ND96 super cardioid capsule; ideal for live performances.
  • Enjoy reliable connectivity within the 560-596 MHz range for uninterrupted audio.
  • This wireless handheld transmitter offers both 10mW and 50mW output power options.
  • Benefit from the long-lasting battery life using 2 AA batteries for extended use.
  • The durable design ensures this wireless microphone withstands the rigors of touring.

What's in the box:

  • Electro-Voice RE3-HHT Wireless Handheld Transmitter
  • ND96-RC3 Wireless Head with ND96 Capsule
  • Microphone Stand Adapter
  • 2x AA Batteries
  • Engineering Data Sheet
  • Electro-Voice 3 Year Limited Warranty
