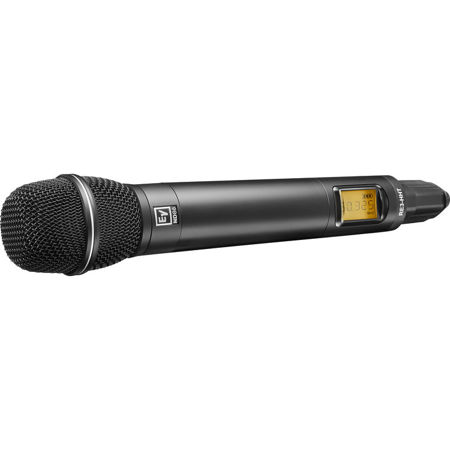

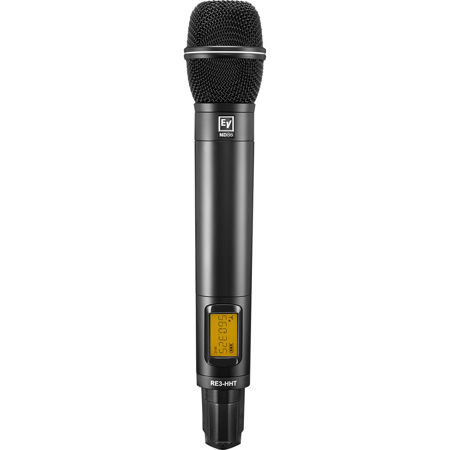

Electro-Voice RE3-HHT UHF Wireless Handheld Transmitter with ND86-RC3 Super Cardioid Microphone Capsule Head, 653-663MHz

SKU: EVF01U354248 MFR: F.01U.354.248
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with the ND86 super cardioid microphone capsule.
  • Achieve reliable wireless performance with a UHF handheld transmitter, 653-663MHz.
  • Enjoy flexible frequency selection with 400 available channels for clear audio.
  • Utilize the RE3-HHT for live performances, presentations, or studio recordings.
  • Benefit from extended battery life using 2 AA batteries in your wireless system.
  • Ensure seamless connectivity with ultrasonic sync frequency for quick setup.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice RE3-ND86 Specifications

Wireless Head with Mic Capsule

Wireless Head with Mic Capsule

Jump to...
  • Element type

    Dynamic neodymium magnet structure

  • Frequency response, close

    30 Hz-17 kHz

  • Frequency response, far

    70 Hz-17 kHz

  • Polar pattern

    Supercardioid

  • Sensitivity, open circuit volt at 1 kHz

    5.6 mV/Pascal (-45 dBV/Pa)

  • Maximum SPL

    134.5 dB SPL (1% THD)

  • Impedance

    1000 ohms

  • Power requirements

    4-8 VDC

  • Polarity

    Positive pressure on diaphragm produces positive voltage at center contact relative to ground contact

  • Electrical contact

    3-Ring/3-Pin

  • Threaded coupling

    1.25" (31.75mm) diameter
    28 UN-2A thread pitch

  • Finish

    Black polyurethane paint

  • Materials

    Aluminum, steel, steel wire grille screen

Handheld Transmitter

Jump to...
  • Frequency Oscillation Mode

    Phase-locked loop (PLL)

  • Bandwidth limits

    6M: 653 - 663 MHz

  • Tuning bandwidth

    10 MHz

  • Selectable frequencies

    400

  • Transmit output power

    10 and 20 mW

  • Sync Frequency

    Ultrasonic

  • Display By

    LCD + LED

  • Function Controls

    Power, mute, group, channel, frequency, sensitivity adjustment, RF power, auto off, key lock

  • RF Stability

    <+/-10kHz at Fc

  • Modulation Frequency Shift

    Wideband FM
    +/-48kHz deviation

  • Harmonic Radiation

    <-50dBc

  • Battery

    2 x AA alkaline battery or NiMH rechargeable battery

  • Charging Contacts

    Yes

  • Microphone Coupling

    1.25" (31.75mm) diameter
    28 UN-2A thread pitch

  • Microphone Electrical Contact

    3-ring/3-pin

  • Finish

    Black polyurethane paint

General

Jump to...
  • Dimensions

    Wireless Head with Mic Capsule (LxDia.): 3.6 x 2" (91.44 x 50.80mm)
    Handheld Transmitter (HxW): 7.52 x 1.46" (191.01 x 37.08mm) (Without Head and width at threaded end)
    Handheld Transmitter (HxW): 7.52 x 0.85" (191.01 x 21.59mm) (Without Head and width at Control Cover)

  • Weight

    Wireless Head with Mic Capsule: 6.5 oz (184.27g)
    Handheld Transmitter: 12.2 oz (345.86g)

  • UPC Code

    800549898751

About Electro-Voice RE3-ND86

Explore the world of superior sound quality with the RE3-HHT UHF Wireless Handheld Transmitter, featuring an ND86 dynamic supercardioid microphone head. This professional-grade, high-quality device is designed for vocal performances and presentations, delivering a smooth, detailed, and present sound that stands out even in the largest of venues.

The RE3-HHT UHF Wireless Handheld Transmitter is a product of Electro-Voice, a reputable brand known for its durable and reliable audio equipment. It operates within a frequency range of 653-663 MHz, making it versatile and compatible with most wireless systems.

The ND86-RC3 microphone head is a robust, high-performance, dynamic cardioid thread-on vocal microphone head. It's designed to adapt electrically and mechanically to Electro-Voice wireless handheld transmitters and many other brands that use the common 3-contact rings, 1.25" diameter by 28-thread pitch coupling convention.

The microphone head's dynamic capsule contains a large Mylar diaphragm, which delivers a rich and detailed frequency response. This is achieved by combining its large surface area for tonal balance with its low-mass high-velocity material for exceptionally fast transient response.

The microphone head also features an innovative capsule shock-mount system, offering superior handling noise reduction to eliminate mechanical vibrations and noise in the mix. The Memraflex grille is made of a durable tight-mesh grille wire that withstands extraordinarily rough treatment, ensuring your microphone head remains protected and looking good gig-after-gig, year-after-year.

The RE3-HHT Handheld Transmitter is a lightweight, yet robust UHF handheld transmitter body. It is ideally-suited for professional performance and presentation applications. The all-metal body is robust and durable and operates on 2 AA alkaline or rechargeable NiMH cells. The ultrasonic sync function makes for a simple system setup by syncing the transmitter to the receiver frequency tuning and other functional data.

The selectable output power (band specific) assists in overcoming the challenges of both long or short, transmission ranges. The tuning bandwidth affords generous frequency tuning options helping to avoid various sources of possible interference. The threaded coupling makes attaching and interchanging a variety of heads simple and convenient.

In conclusion, the RE3-HHT UHF Wireless Handheld Transmitter with ND86-RC3 Super Cardioid Microphone Capsule Head is a reliable, high-quality, and versatile choice for all your audio transmission needs.

Electro-Voice RE3-ND86 Features

  • High-performance UHF Wireless Handheld Transmitter with ND86 dynamic supercardioid microphone head
  • Operates within a versatile frequency range of 653-663 MHz, compatible with most wireless systems
  • Features a robust, dynamic cardioid thread-on vocal microphone head designed for Electro-Voice wireless handheld transmitters
  • Equipped with a large Mylar diaphragm for a rich, detailed frequency response and fast transient response
  • Durable Memraflex grille for superior protection, withstanding rough treatment and maintaining aesthetic appeal
  • Lightweight yet robust all-metal body, operating on 2 AA alkaline or rechargeable NiMH cells for professional performance and presentation applications

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Experience superior sound quality with the ND86 super cardioid microphone capsule.
  • Achieve reliable wireless performance with a UHF handheld transmitter, 653-663MHz.
  • Enjoy flexible frequency selection with 400 available channels for clear audio.
  • Utilize the RE3-HHT for live performances, presentations, or studio recordings.
  • Benefit from extended battery life using 2 AA batteries in your wireless system.
  • Ensure seamless connectivity with ultrasonic sync frequency for quick setup.

What's in the box:

  • Electro-Voice RE3-HHT Wireless Handheld Transmitter
  • ND86-RC3 Wireless Head with ND86 Capsule
  • Microphone Stand Adapter
  • 2x AA Batteries
  • Engineering Data Sheet
  • Electro-Voice 3 Year Limited Warranty
