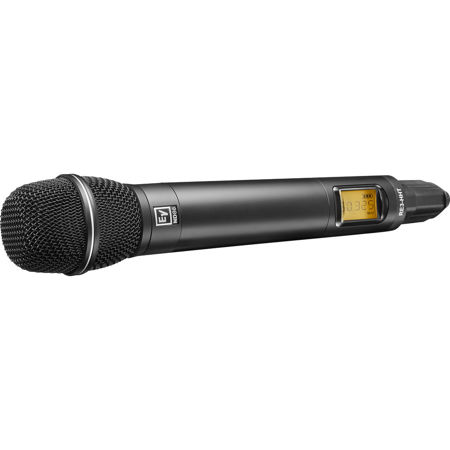

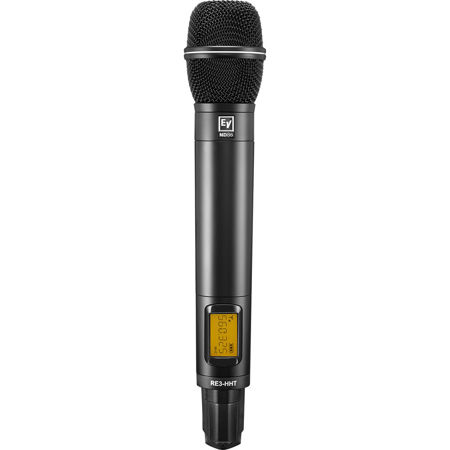

Electro-Voice RE3-HHT UHF Wireless Handheld Transmitter with ND86-RC3 Super Cardioid Microphone Capsule Head, 488-524MHz

SKU: EVF01U354250 MFR: F.01U.354.250
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this Electro-Voice wireless microphone system.
  • Achieve superior vocal clarity using the ND86 super cardioid microphone capsule head.
  • Enjoy freedom of movement with a reliable UHF wireless handheld transmitter.
  • Get long-lasting performance with up to 8 hours of battery life for each event.
  • Easily adjust settings on the LCD display for optimal sound during performances.
  • Perfect for live sound, this durable microphone delivers professional-grade audio.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice RE3-ND86 Specifications

Wireless Head with Mic Capsule

Wireless Head with Mic Capsule

Jump to...
  • Element type

    Dynamic neodymium magnet structure

  • Frequency response, close

    30 Hz-17 kHz

  • Frequency response, far

    70 Hz-17 kHz

  • Polar pattern

    Supercardioid

  • Sensitivity, open circuit volt at 1 kHz

    5.6 mV/Pascal (-45 dBV/Pa)

  • Maximum SPL

    134.5 dB SPL (1% THD)

  • Impedance

    1000 ohms

  • Power requirements

    4-8 VDC

  • Polarity

    Positive pressure on diaphragm produces positive voltage at center contact relative to ground contact

  • Electrical contact

    3-Ring/3-Pin

  • Threaded coupling

    1.25" (31.75mm) diameter
    28 UN-2A thread pitch

  • Finish

    Black polyurethane paint

  • Materials

    Aluminum, steel, steel wire grille screen

Handheld Transmitter

Jump to...
  • Frequency Oscillation Mode

    Phase-locked loop (PLL)

  • Bandwidth limits

    5L: 488 - 524 MHz

  • Tuning bandwidth

    36 MHz

  • Selectable frequencies

    1440

  • Transmit output power

    10 and 50 mW

  • Sync Frequency

    Ultrasonic

  • Display By

    LCD + LED

  • Function Controls

    Power, mute, group, channel, frequency, sensitivity adjustment, RF power, auto off, key lock

  • RF Stability

    <+/-10kHz at Fc

  • Modulation Frequency Shift

    Wideband FM
    +/-48kHz deviation

  • Harmonic Radiation

    <-50dBc

  • Battery

    2 x AA alkaline battery or NiMH rechargeable battery

  • Charging Contacts

    Yes

  • Microphone Coupling

    1.25" (31.75mm) diameter
    28 UN-2A thread pitch

  • Microphone Electrical Contact

    3-ring/3-pin

  • Finish

    Black polyurethane paint

General

Jump to...
  • Dimensions

    Wireless Head with Mic Capsule (LxDia.): 3.6 x 2" (91.44 x 50.80mm)
    Handheld Transmitter (HxW): 7.52 x 1.46" (191.01 x 37.08mm) (Without Head and width at threaded end)
    Handheld Transmitter (HxW): 7.52 x 0.85" (191.01 x 21.59mm) (Without Head and width at Control Cover)

  • Weight

    Wireless Head with Mic Capsule: 6.5 oz (184.27g)
    Handheld Transmitter: 12.2 oz (345.86g)

  • UPC Code

    800549898775

About Electro-Voice RE3-ND86

Explore the world of professional audio with the RE3-HHT UHF Wireless Handheld Transmitter, featuring the ND86-RC3 Super Cardioid Microphone Capsule Head. This high-quality, durable, and portable device is perfect for live performances, presentations, and broadcasting applications.

The Electro-Voice RE3-HHT is a robust UHF wireless transmitter, designed to deliver superior sound quality. It features the ND86 dynamic supercardioid microphone head, known for its present, smooth, and detailed sound. The supercardioid polar pattern ensures excellent acoustic control, even in large venues, making it a versatile choice for various professional settings.

The ND86-RC3 microphone head is a high-performance, dynamic cardioid thread-on vocal microphone head, designed for wireless handheld transmitters. It easily adapts to Electro-Voice and many other brands' wireless handheld transmitters, thanks to the common 3-contact rings, 1.25" diameter by 28-thread pitch coupling convention.

The microphone head's dynamic capsule contains a large Mylar diaphragm, which delivers a rich and detailed frequency response. The innovative capsule shock-mount system minimizes handling noise, eliminating mechanical vibrations and noise in the mix. The Memraflex grille is made of a durable tight-mesh grille wire that withstands extraordinarily rough treatment, ensuring your microphone head remains protected and looking good gig-after-gig, year-after-year.

The RE3-HHT Handheld Transmitter is a lightweight, yet robust UHF handheld transmitter body. It is ideally-suited for professional performance and presentation applications. The all-metal body is robust and durable and operates on 2 AA alkaline or rechargeable NiMH cells. The ultrasonic sync function makes for a simple system setup by syncing the transmitter to the receiver frequency tuning and other functional data. The selectable output power assists in overcoming the challenges of both long or short, transmission ranges. The tuning bandwidth affords generous frequency tuning options helping to avoid various sources of possible interference.

Experience the freedom of wireless performance with the RE3-HHT UHF Wireless Handheld Transmitter with ND86-RC3 Super Cardioid Microphone Capsule Head.

Electro-Voice RE3-ND86 Features

  • High-quality UHF wireless handheld transmitter with ND86-RC3 Super Cardioid Microphone Capsule Head
  • ND86 dynamic supercardioid microphone head for present, smooth, and detailed sound
  • Robust all-metal body, perfect for professional performance and presentation applications
  • Large Mylar diaphragm for a rich and detailed frequency response
  • Innovative capsule shock-mount system for minimizing handling noise
  • Ultrasonic sync function for easy system setup and generous frequency tuning options

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this Electro-Voice wireless microphone system.
  • Achieve superior vocal clarity using the ND86 super cardioid microphone capsule head.
  • Enjoy freedom of movement with a reliable UHF wireless handheld transmitter.
  • Get long-lasting performance with up to 8 hours of battery life for each event.
  • Easily adjust settings on the LCD display for optimal sound during performances.
  • Perfect for live sound, this durable microphone delivers professional-grade audio.

What's in the box:

  • Electro-Voice RE3-HHT Wireless Handheld Transmitter
  • ND86-RC3 Wireless Head with ND86 Capsule
  • Microphone Stand Adapter
  • 2x AA Batteries
  • Engineering Data Sheet
  • Electro-Voice 3 Year Limited Warranty
