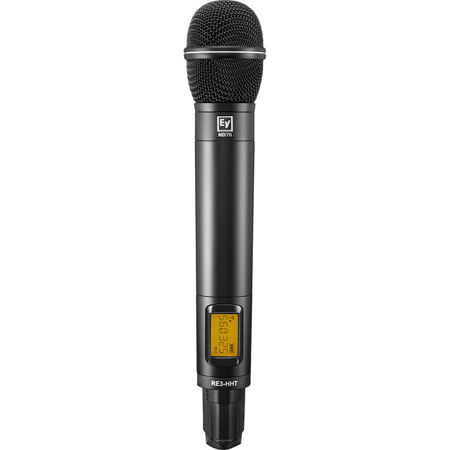

Electro-Voice RE3-HHT UHF Wireless Handheld Transmitter with ND76-RC3 Super Cardioid Microphone Capsule Head, 653-663MHz

SKU: EVF01U354253 MFR: F.01U.354.253
Earn VIP Reward Points

Key Features

  • Experience superior sound with this Electro-Voice wireless handheld transmitter.
  • Enjoy reliable performance with a wide 653-663 MHz frequency range for clear audio.
  • The ND76 super cardioid microphone capsule head delivers exceptional vocal clarity.
  • Perfect for live performances, the robust design ensures durability and long life.
  • Easy setup with selectable frequencies, making it ideal for various audio environments.
  • Benefit from the low latency of this wireless system, ensuring seamless synchronization.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice RE3-ND76 Specifications

Wireless Head with Mic Capsule

Wireless Head with Mic Capsule

Jump to...
  • Element type

    Dynamic neodymium magnet structure

  • Frequency response, close

    30 Hz-17 kHz

  • Frequency response, far

    70 Hz-17 kHz

  • Polar pattern

    Cardioid

  • Sensitivity, open circuit volt at 1 kHz

    5.6 mV/Pascal (-45 dBV/Pa)

  • Maximum SPL

    135.5 dB SPL (1% THD)

  • Impedance

    1000 ohms

  • Power requirements

    4-8 VDC

  • Polarity

    Positive pressure on diaphragm produces positive voltage at center contact relative to ground contact

  • Electrical contact

    3-Ring/3-Pin

  • Threaded coupling

    1.25" (31.75mm) diameter
    28 UN-2A thread pitch

  • Finish

    Black polyurethane paint

  • Materials

    Aluminum, steel, steel wire grille screen

Handheld Transmitter

Jump to...
  • Frequency Oscillation Mode

    Phase-locked loop (PLL)

  • Bandwidth limits

    6M: 653 - 663 MHz

  • Tuning bandwidth

    10 MHz

  • Selectable frequencies

    400

  • Transmit output power

    10 and 20 mW

  • Sync Frequency

    Ultrasonic

  • Display By

    LCD + LED

  • Function Controls

    Power, mute, group, channel, frequency, sensitivity adjustment, RF power, auto off, key lock

  • RF Stability

    <+/-10kHz at Fc

  • Modulation Frequency Shift

    Wideband FM
    +/-48kHz deviation

  • Harmonic Radiation

    <-50dBc

  • Battery

    2 x AA alkaline battery or NiMH rechargeable battery

  • Charging Contacts

    Yes

  • Microphone Coupling

    1.25" (31.75mm) diameter
    28 UN-2A thread pitch

  • Microphone Electrical Contact

    3-ring/3-pin

  • Finish

    Black polyurethane paint

General

Jump to...
  • Dimensions

    Wireless Head with Mic Capsule (LxDia.): 3.6 x 2" (91.44 x 50.80mm)
    Handheld Transmitter (HxW): 7.52 x 1.46" (191.01 x 37.08mm) (Without Head and width at threaded end)
    Handheld Transmitter (HxW): 7.52 x 0.85" (191.01 x 21.59mm) (Without Head and width at Control Cover)

  • Weight

    Wireless Head with Mic Capsule: 6.5 oz (184.27g)
    Handheld Transmitter: 12.2 oz (345.86g)

  • UPC Code

    800549898805

About Electro-Voice RE3-ND76

Because of its high-quality construction and superior performance, the RE3-HHT UHF Wireless Handheld Transmitter with ND76-RC3 Super Cardioid Microphone Capsule Head, operating in the 653-663MHz frequency range, is a top choice for professionals in the audio industry. This durable and reliable device is crafted by Electro-Voice, a brand renowned for its exceptional audio equipment.

The RE3-HHT UHF Wireless Handheld Transmitter is equipped with an ND76 dynamic cardioid microphone head, specifically designed for vocal performances and presentations. The ND76 capsule offers a crisp, clear, and balanced vocal presence, making it ideal for a wide range of voice applications. The transmitter pairs seamlessly with the RE3-RX diversity receiver, ensuring a rock-solid system performance.

The ND76-RC3 microphone head is a robust, high-performance, dynamic cardioid thread-on vocal microphone head. It is designed to adapt both electrically and mechanically to Electro-Voice wireless handheld transmitters, as well as many other brands that use the common 3-contact rings, 1.25" diameter by 28-thread pitch coupling convention.

The large diaphragm dynamic capsule of the microphone head creates a rich and detailed frequency response. Its large Mylar diaphragm combines a large surface area for tonal balance with low-mass high-velocity material for an exceptionally fast transient response. The innovative capsule shock-mount system minimizes handling noise, eliminating mechanical vibrations and noise in the mix.

The RE3-HHT Handheld Transmitter is a lightweight yet robust UHF handheld transmitter body, perfect for professional performance and presentation applications. It features a sync function for easy frequency setup and a selectable low and high output power. The generous tuning bandwidth helps to avoid potential interference, and the common threaded coupling allows for easy interchanging of microphone heads.

The all-metal body of the transmitter is designed for durability and operates on 2 AA alkaline or rechargeable NiMH cells. The ultrasonic sync function simplifies system setup by syncing the transmitter to the receiver frequency tuning and other functional data. The selectable output power assists in overcoming the challenges of both long or short transmission ranges. The threaded coupling makes attaching and interchanging a variety of heads simple and convenient.

In conclusion, the RE3-HHT UHF Wireless Handheld Transmitter with ND76-RC3 Super Cardioid Microphone Capsule Head, 653-663MHz is a versatile, high-quality audio device, designed to deliver superior performance in a variety of applications.

Electro-Voice RE3-ND76 Features

  • High-quality UHF wireless handheld transmitter with ND76 dynamic cardioid microphone head
  • Operates in the 653-663MHz frequency range, ideal for a variety of professional audio applications
  • Features a robust, all-metal body for durability and long-lasting performance
  • Equipped with an innovative capsule shock-mount system to minimize handling noise
  • Offers a selectable low and high output power, overcoming challenges of both long and short transmission ranges
  • Convenient threaded coupling allows for easy interchanging of microphone heads

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Experience superior sound with this Electro-Voice wireless handheld transmitter.
  • Enjoy reliable performance with a wide 653-663 MHz frequency range for clear audio.
  • The ND76 super cardioid microphone capsule head delivers exceptional vocal clarity.
  • Perfect for live performances, the robust design ensures durability and long life.
  • Easy setup with selectable frequencies, making it ideal for various audio environments.
  • Benefit from the low latency of this wireless system, ensuring seamless synchronization.

What's in the box:

  • Electro-Voice RE3-HHT Wireless Handheld Transmitter
  • ND76-RC3 Wireless Head with ND76 Capsule
  • Microphone Stand Adapter
  • 2x AA Batteries
  • Engineering Data Sheet
  • Electro-Voice 3 Year Limited Warranty
