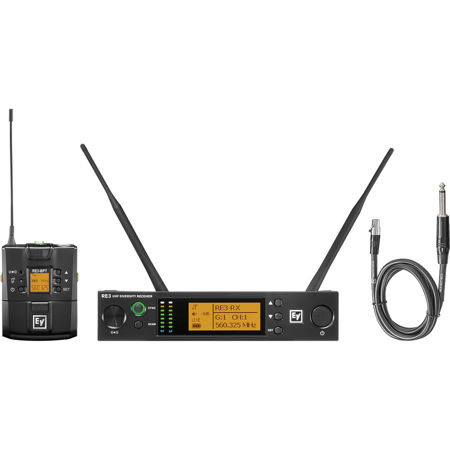

Electro-Voice RE3-BPGC Wireless Bodypack System, Includes RE3-ACC-GC3 1/4" to TA4F Instrument Cable, RE3-RX Diversity Receiver and RE3-BPT Bodypack Transmitter, 560-596MHz

SKU: EVF01U354259 MFR: F.01U.354.259
Earn VIP Reward Points

Key Features

  • Experience freedom with this wireless instrument microphone system, perfect for dynamic stage performances.
  • Enjoy crystal-clear audio quality; this wireless microphone captures every nuance of your instrument's sound.
  • Achieve superior sound with low latency; this system ensures real-time performance without any delays.
  • The bodypack transmitter offers a long-lasting battery life, so you can play confidently throughout your set.
  • This durable wireless microphone system is built to withstand the rigors of touring and frequent use.
  • Easy to set up and use, this wireless instrument microphone system is ideal for musicians of all levels.
See More Product Details

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Electro-Voice RE3-BPGC Specifications

Instrument Cable

Instrument Cable

Jump to...
  • Electrical contact pinouts

    Pin #1 - Ground, shield
    Pin #2 - Audio
    Pin #3 - N/C
    Pin #4 - N/

  • Connectors

    6.5 mm (1/4-inch) phone plug
    4-pin mini plug

Receiver

Jump to...
  • Frequency Oscillation Mode

    Phase-locked loop (PLL)

  • Carrier Frequency Range

    5H: 560 - 596 MHz

  • Selectable frequencies

    1440

  • Transmit output power

    10 and 50 mW

  • Sync Frequency

    Ultrasonic 40 kHz

  • Diversity

    Antenna diversity

  • Bandwidth

    36 MHz

  • Signal/Noise Ratio

    >100dB(A)

  • Total Harmonic Distortion (Thd)

    <0.6% at 1kHz

  • Receiving Sensitivity

    -81dBm for -12dB SINAD

  • Frequency Response

    63Hz to 16kHz +/-2dB (BPT)

  • Antenna Type

    Detachable 1/2 wave with BNC connector

  • Antenna Booster Power

    DC12 - 15V/100mA

  • Function Display By

    LCD

  • Contents Of Display

    Group, channel, frequency, antenna A/B, transmitter battery level, transmitter status (mute, live, or no sync), output level attenuation, AF indication, RF indication, key lock indicator

  • Control Functions

    Power, scan, frequency, group, channel, squelch, TX sensitivity, TX attenuation, TX RF power, TX auto off, TX key lock, TX display info, TX sync configuration, RX output volume, RX output level, RX antenna booster power, RX key lock, RX display contrast, RX display brightness, RX system reset

  • Sync Data Options

    Frequency, group, channel, sensitivity level, attenuation status, RF power, auto off status, key lock status, transmitter display (freq or Gp/Ch)

  • Audio Frequency Output Level

    Ref: +/-22.5kHz Dev at 1kHz Tone
    1/4" (6.3mm) Phone Jack: -10dBV
    XLR Jack: -4dBV(Line), -24dBV(MIC)

  • Audio Frequency Output Impedance

    240 Ohms (unbalanced) 1400 Ohms (balanced)

  • Squelch and noise muting

    Noise muting and tone code locking

  • Output Ports

    1 x balanced XLRM jack 1 x unbalanced 1/4" TS (6.3mm) jack

  • Power Supply

    DC12 to 15V/500mA

  • Finish

    Black polyurethane paint

Bodypack Transmitter

Jump to...
  • Frequency oscillation mode

    Phase-locked loop (PLL)

  • Bandwidth limits (MHz)

    5H: 560 - 596 MHz

  • Tuning bandwidth

    36 MHz

  • Selectable frequencies

    1440

  • Transmit output power

    Low: 10mW
    High: 50mW

  • Sync frequency

    Ultrasonic

  • Display by

    LCD + LED

  • Function controls

    Power, mute, group, channel, frequency, sensitivity adjustment, input level attenuation, RF power, auto off, key lock

  • RF stability

    <+/-10kHz at Fc

  • Modulation frequency shift

    Wideband FM +/-48kHz deviation

  • Harmonic radiation

    < -50dBc

  • Input jack

    4-pin mini jack

  • Battery

    2 x AA alkaline battery or NiMH rechargeable battery

  • Charging contacts

    Yes

  • Finish

    Black polyurethane paint

General

Jump to...
  • Dimensions

    Instrument Cable (Length): 32.7" (830.58mm)
    Transmitter (HxWxD): 3.2 x 2.54 x 0.98" (81.28 x 64.52 x 24.89mm) (Without Antenna)
    Receiver (HxWxD): 1.85 x 8.27 x 6.89" (46.99 x 210.06 x 175.01mm) (With Feet Attached and Antenna Jack)
    Receiver (HxWxD): 1.73 x 8.27 x 6.1" (43.94 x 210.06 x 154.94mm) (Without Feet Attached and Antenna Jack)

  • Weight

    Instrument Cable: 1.94 oz (55g)
    Transmitter: 6.14 oz (174.07g)
    Receiver: 2.71 lbs (1.23kg)

  • UPC Code

    800549898867

About Electro-Voice RE3-BPGC

With the RE3-BPGC Wireless Bodypack System, experience the pinnacle of wireless audio transmission tailored for professional musicians and performers seeking a durable, high-quality, and reliable solution. This advanced system is designed to seamlessly integrate with your performance setup, providing crystal-clear sound without the constraints of cables.

The system's core component, the RE3-BPT Bodypack Transmitter, boasts a robust metal construction that ensures longevity even in the most demanding performance environments. Its compact and lightweight design allows for discreet placement, making it perfect for a variety of professional presentation and performance applications, from theatrical productions to high-energy sports events. The transmitter's unique magnetic latch and lock mechanism ensures secure battery compartment closure, while the ultrasonic sync function simplifies system setup by wirelessly syncing the transmitter to the receiver's frequency and functional data.

The included RE3-ACC-GC3 Instrument Cable, featuring a 1/4" to TA4F connection, is specifically crafted to connect instruments or line-level signal sources with 1/4" output jacks to the bodypack transmitter. This robust cable is equipped with an easy-to-grip 1/4" plug and an industry-standard 4-pin mini plug, facilitating a seamless connection for stringed instruments with passive or active pickups, as well as line-level signal sources for wireless use.

At the heart of the system's signal reception is the RE3-RX Diversity Receiver, a professional, rack-mountable unit that serves as the control center for your wireless set. The receiver's diversity reception technology employs two separate antennas, automatically selecting the strongest signal to minimize the chances of dropouts. The receiver's frequency scanning feature aids in locating a clear operating frequency, while the sync function ensures that all operating parameters are wirelessly aligned with the mated transmitter. The wide tuning bandwidth, selectable in 25kHz steps, accommodates a broad range of frequencies, ensuring trouble-free operation for both single and multi-channel setups. The receiver's easy-to-read LCD display provides a clear view of all menus and operating parameters, enhancing user interaction and control.

Operating within the 560-596 MHz frequency range, the RE3-BPGC Wireless Bodypack System offers unparalleled flexibility and compatibility, making it a superior choice for professionals who demand the best in wireless audio technology. Whether you're a musician looking to move freely on stage or a presenter aiming for flawless audio delivery, this system provides a complete wireless solution that stands out for its professional-grade performance and ease of use.

Electro-Voice RE3-BPGC Features

  • Professional-grade RE3-BPGC Wireless Bodypack System for superior wireless audio transmission
  • Robust RE3-BPT Bodypack Transmitter with ultrasonic sync function for easy system setup
  • RE3-ACC-GC3 Instrument Cable with 1/4" to TA4F connection, perfect for connecting a variety of instruments
  • RE3-RX Diversity Receiver featuring diversity reception technology to minimize signal dropouts
  • Wide 560-596 MHz frequency range for enhanced flexibility and compatibility
  • Easy-to-read LCD display on receiver for intuitive control and operation

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Experience freedom with this wireless instrument microphone system, perfect for dynamic stage performances.
  • Enjoy crystal-clear audio quality; this wireless microphone captures every nuance of your instrument's sound.
  • Achieve superior sound with low latency; this system ensures real-time performance without any delays.
  • The bodypack transmitter offers a long-lasting battery life, so you can play confidently throughout your set.
  • This durable wireless microphone system is built to withstand the rigors of touring and frequent use.
  • Easy to set up and use, this wireless instrument microphone system is ideal for musicians of all levels.

What's in the box:

  • Electro-Voice RE3-ACC-GC3 1/4 " to TA4F Instrument Cable
  • RE3-RX Diversity Receiver
  • RE3-BPT Bodypack Transmitter with Antenna and Beltclip
  • 2x Receiver Antennas
  • Universal Power Supply
  • 2x AA Batteries
  • Receiver Rack Mounting Hardware
  • Owner's Manual
  • Documentation Packet
  • Electro-Voice 3 Year Limited Warranty
