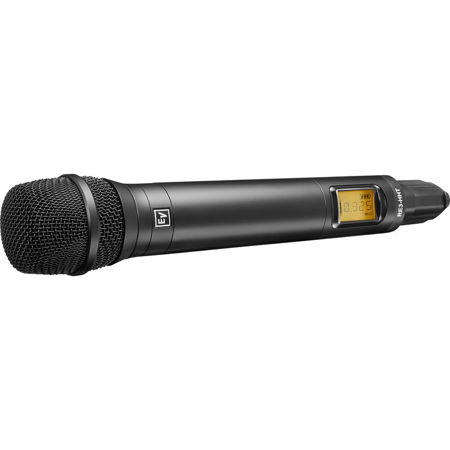

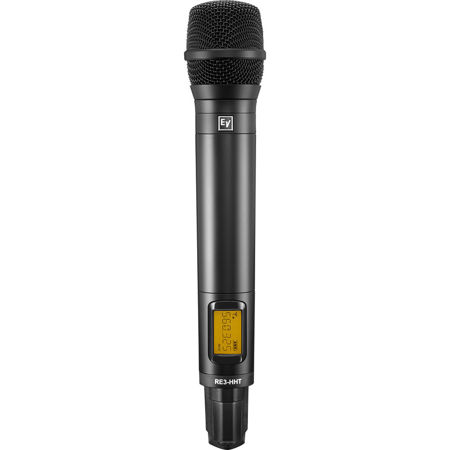

Electro-Voice RE3-HHT UHF Wireless Handheld Transmitter with RE420-RC3 Super Cardioid Microphone Capsule Head, 488-524MHz

SKU: EVF01U354264 MFR: F.01U.354.264
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice wireless microphone system.
  • Achieve low latency and reliable performance with the RE3-HHT wireless transmitter.
  • Enjoy extended battery life with standard AA batteries for long events or performances.
  • The RE420 super cardioid capsule ensures clear vocal pickup, reducing background noise.
  • Use the rugged handheld transmitter for lectures, presentations, or live performances.
  • Benefit from durable construction and easy setup for worry-free operation every time.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

5 Year

$179.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice RE3-RE420 Specifications

Wireless Head with Mic Capsule

Wireless Head with Mic Capsule

Jump to...
  • Element type

    Dynamic neodymium magnet structure

  • Frequency response

    50 Hz-20 kHz

  • Polar pattern

    Cardioid

  • Sensitivity, open circuit volt at 1 kHz

    5.6 mV/Pascal (-45 dBV/Pa)

  • Clipping (Maximum SPL)

    137 dB SPL (1% THD)

  • Self noise

    22 dB SPL "A" weighed (0 dB=20 MuPa)

  • Dynamic range

    115 dB

  • Signal-to-Noise ratio

    72 dB

  • Impedance

    1000 ohms

  • Power requirements

    4-8 VDC

  • Polarity

    Positive pressure on diaphragm produces positive voltage at center contact relative to ground contact

  • Electrical contact

    3-Ring/3-Pin

  • Threaded coupling

    1.25" (31.75mm) diameter
    28 UN-2A thread pitch

  • Finish

    Black polyurethane paint

  • Materials

    Aluminum, steel, steel wire grille screen

Handheld Transmitter

Jump to...
  • Frequency Oscillation Mode

    Phase-locked loop (PLL)

  • Bandwidth limits

    5L: 488 - 524 MHz

  • Tuning bandwidth

    36 MHz

  • Selectable frequencies

    1440

  • Transmit output power

    10 and 50 mW

  • Sync Frequency

    Ultrasonic

  • Display By

    LCD + LED

  • Function Controls

    Power, mute, group, channel, frequency, sensitivity adjustment, RF power, auto off, key lock

  • RF Stability

    <+/-10kHz at Fc

  • Modulation Frequency Shift

    Wideband FM
    +/-48kHz deviation

  • Harmonic Radiation

    <-50dBc

  • Battery

    2 x AA alkaline battery or NiMH rechargeable battery

  • Charging Contacts

    Yes

  • Microphone Coupling

    1.25" (31.75mm) diameter
    28 UN-2A thread pitch

  • Microphone Electrical Contact

    3-ring/3-pin

  • Finish

    Black polyurethane paint

General

Jump to...
  • Dimensions

    Wireless Head with Mic Capsule (LxDia.): 3.36 x 1.95" (85.34 x 49.53mm)
    Handheld Transmitter (HxW): 7.52 x 1.46" (191.01 x 37.08mm) (Without Head and width at threaded end)
    Handheld Transmitter (HxW): 7.52 x 0.85" (191.01 x 21.59mm) (Without Head and width at Control Cover)

  • Weight

    Wireless Head with Mic Capsule: 4.6 oz (130.41g)
    Handheld Transmitter: 12.2 oz (345.86g)

  • UPC Code

    800549898911

About Electro-Voice RE3-RE420

Overcome the limitations of wired microphones with the Electro-Voice RE3-HHT UHF Wireless Handheld Transmitter, featuring the exceptional RE420-RC3 Super Cardioid Microphone Capsule Head. Designed for professional vocal performance and presentations, this transmitter and microphone head combination delivers unparalleled audio quality across the 488-524 MHz UHF frequency range.

The RE420-RC3 microphone head is a testament to Electro-Voice's commitment to high-quality sound reproduction. Its premium condenser element captures every nuance of vocal performance with rich, full-bodied sound. The warm and clear low-end, natural and open midrange, and crisp, detailed high end ensure your voice is heard with clarity and depth. The super cardioid polar pattern of the RE420-RC3 offers excellent acoustic isolation, maximizing feedback rejection and allowing for a comfortable working range, which is essential for dynamic performances.

Equipped with a multi-stage pop filter, the RE420-RC3 effectively minimizes breath blasts and plosives, preserving the integrity of your sound. The selectable high-pass filter is a versatile feature that reduces unwanted low-frequency content, giving you control over the tonal quality of your performance.

The RE3-HHT Handheld Transmitter itself is a marvel of engineering, boasting a robust metal body that is both lightweight and durable, ensuring it can withstand the rigors of live performances. The transmitter's compatibility with a wide range of microphone heads, thanks to its common threaded coupling, adds to its versatility. With selectable low and high output power settings, the RE3-HHT can adapt to various performance environments, whether you're in a small venue or a large auditorium.

Setting up the system is a breeze with the ultrasonic sync function, which aligns the transmitter to the receiver's frequency, tuning, and other functional data quickly and accurately. The generous 36 MHz tuning bandwidth provides ample frequency options to avoid interference, ensuring a stable and clear signal.

For performers who value both convenience and quality, the RE3-HHT's recharging contacts are compatible with the optional BC2 charging station, allowing for easy recharging of NiMH cells without the need to remove them from the transmitter.

In summary, the Electro-Voice RE3-HHT UHF Wireless Handheld Transmitter with RE420-RC3 Super Cardioid Microphone Capsule Head is the perfect choice for professionals seeking a reliable, versatile, and high-quality wireless audio solution. Whether you're captivating an audience with your voice or delivering a critical presentation, this system ensures your performance is heard with the utmost clarity and detail.

Electro-Voice RE3-RE420 Features

  • Robust metal body
  • Sync function for easy frequency setup
  • Selectable low and high output power (band specific)
  • Up to 36 MHz tuning bandwidth (band specific)
  • Common threaded coupling allows microphone head interchangeable

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Experience superior sound quality with this Electro-Voice wireless microphone system.
  • Achieve low latency and reliable performance with the RE3-HHT wireless transmitter.
  • Enjoy extended battery life with standard AA batteries for long events or performances.
  • The RE420 super cardioid capsule ensures clear vocal pickup, reducing background noise.
  • Use the rugged handheld transmitter for lectures, presentations, or live performances.
  • Benefit from durable construction and easy setup for worry-free operation every time.

What's in the box:

  • Electro-Voice RE3-HHT Wireless Handheld Transmitter
  • RE420-RC3 Wireless Head with RE420 Capsule
  • Microphone Stand Adapter
  • 2x AA Batteries
  • Engineering Data Sheet
  • Electro-Voice 3 Year Limited Warranty
