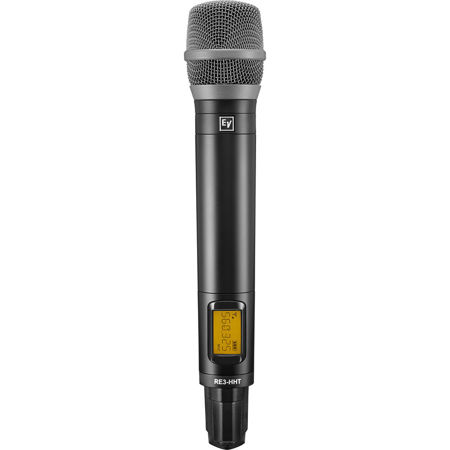

Electro-Voice RE3-HHT UHF Wireless Handheld Transmitter with RE520-RC3 Super Cardioid Microphone Capsule Head, 488-524MHz

SKU: EVF01U354265 MFR: F.01U.354.265
Earn VIP Reward Points

Key Features

  • Experience superior sound with this Electro-Voice wireless microphone system, perfect for vocals.
  • Achieve crystal-clear audio with the RE520 capsule, ensuring every performance is professional.
  • Enjoy freedom of movement on stage with a reliable wireless transmitter operating at 488-524MHz.
  • Customize your audio with adjustable frequency and sensitivity settings on the handheld transmitter.
  • The super cardioid polar pattern minimizes background noise, ideal for live performances and recording.
  • Long-lasting battery life ensures your wireless microphone is ready for extended use, gig after gig.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

5 Year

$179.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice RE3-RE520 Specifications

Wireless Head with Mic Capsule

Wireless Head with Mic Capsule

Jump to...
  • Element type

    Dynamic neodymium magnet structure

  • Frequency response

    50 Hz-20 kHz

  • Polar pattern

    Super Cardioid

  • Sensitivity, open circuit volt at 1 kHz

    5.6 mV/Pascal (-45 dBV/Pa)

  • Clipping (Maximum SPL)

    139 dB SPL (1% THD)

  • Self noise

    22 dB SPL "A" weighed (0 dB=20 MuPa)

  • Dynamic range

    117 dB

  • Signal-to-Noise ratio

    72 dB

  • Impedance

    1000 ohms

  • Power requirements

    4-8 VDC phantom power

  • Polarity

    Positive pressure on diaphragm produces positive voltage at center contact relative to ground contact

  • Electrical contact

    3-Ring/3-Pin

  • Threaded coupling

    1.25" (31.75mm) diameter
    28 UN-2A thread pitch

  • Finish

    Black polyurethane paint

  • Materials

    Aluminum, steel, steel wire grille screen

Handheld Transmitter

Jump to...
  • Frequency Oscillation Mode

    Phase-locked loop (PLL)

  • Bandwidth limits

    5L: 488 - 524 MHz

  • Tuning bandwidth

    36 MHz

  • Selectable frequencies

    1440

  • Transmit output power

    10 and 50 mW

  • Sync Frequency

    Ultrasonic

  • Display By

    LCD + LED

  • Function Controls

    Power, mute, group, channel, frequency, sensitivity adjustment, RF power, auto off, key lock

  • RF Stability

    <+/-10kHz at Fc

  • Modulation Frequency Shift

    Wideband FM
    +/-48kHz deviation

  • Harmonic Radiation

    <-50dBc

  • Battery

    2 x AA alkaline battery or NiMH rechargeable battery

  • Charging Contacts

    Yes

  • Microphone Coupling

    1.25" (31.75mm) diameter
    28 UN-2A thread pitch

  • Microphone Electrical Contact

    3-ring/3-pin

  • Finish

    Black polyurethane paint

General

Jump to...
  • Dimensions

    Wireless Head with Mic Capsule (LxDia.): 3.36 x 1.95" (85.34 x 49.53mm)
    Handheld Transmitter (HxW): 7.52 x 1.46" (191.01 x 37.08mm) (Without Head and width at threaded end)
    Handheld Transmitter (HxW): 7.52 x 0.85" (191.01 x 21.59mm) (Without Head and width at Control Cover)

  • Weight

    Wireless Head with Mic Capsule: 4.6 oz (130.41g)
    Handheld Transmitter: 12.2 oz (345.86g)

  • UPC Code

    800549898928

About Electro-Voice RE3-RE520

UHF wireless transmitter featuring RE520 condenser supercardioid microphone
Handheld UHF wireless transmitter featuring RE520 condenser supercardioid microphone head for vocal performance and presentations. The RE520's sound is detailed, full and vivid, with a tight and clear low end, natural and present midrange and an exceptionally-detailed high end. The supercardioid pattern provides excellent acoustic isolation. The transmitter pairs perfectly with the RE3-RX diversity receiver. Setup is quick and simple using the RE3 clear frequency scan and sync functions and the radio link between the robust handheld transmitter and diversity receiver delivers rock-solid system performance.

- RE520-RC3 Wireless head with RE520 capsule -
The RE520-RC3 is a premium-grade, high-performance, condenser supercardioid thread-on vocal microphone head for wireless handheld transmitters. Designed to reveal the exceptional detail and vivid clarity synonymous with condenser elements, it elegantly delivers the lyrical finesse required for expressive vocal performances, while controlling off-axis sound from near-by sources.

• Thread-on microphone head for Electro-Voice and other brand's wireless handheld transmitters
• Premium condenser element delivers a highly detailed, full and vivid sound
• Supercardioid polar pattern provides excellent acoustic isolation and feedback control
• Multi-stage pop filter minimizes breath blasts and plosives
• Selectable high-pass filter reduces undesirable low frequency content when engaged

This microphone head electrically and mechanically adapts to Electro-Voice (and many other brands) wireless handheld transmitters that use the common 3-contact rings, 1.25" diameter by 28-thread pitch coupling convention. The floating captured ID collar will spin freely until screwing the head on tightly. It will remain locked in place when fully tightened. This allows the desired orientation of the branding to the transmitter.

The sonic signature is detailed, full and vivid, with a warm and clear low end, natural and present midrange and an open, crisp and detailed high end. The supercardioid pattern provides excellent acoustic isolation. Maximum feedback rejection occurs when a stage monitor position is at either 225 deg. or 125 deg. offaxis to the element. This pattern also allows for a cleaner mix due to its rejection of off-axis sound. The multi-stage pop filter consists of two layers of dense foam separated by air, which attenuates wind velocity caused by breath and windblasts.

The high-pass filter has two positions. The flat position delivers the full frequency band pass of the capsule. The high-pass position attenuates frequencies below 150 Hz. The internal shock mount isolates the microphone element from vibration and guards against handling noise.

- RE3-HHT Handheld Transmitter -
The RE3-HHT is a lightweight, yet robust UHF handheld transmitter body. It is ideally-suited for professional performance and presentation applications. Due to its commonly-used 1.25" diameter, 28 UN-2A thread pitch microphone head coupling, it accepts mic heads using this common coupling convention. Although primarily intended to accept the ND and RE Series heads developed for RE3 listed in the accessories section of this data sheet, the RE3-HHT will adapt other microphone heads using the 1.25" diameter, 28 UN-2A thread pitch coupling scheme.

• Robust metal body
• Sync function for easy frequency setup
• Selectable low and high output power (band specific)
• Up to 36 MHz tuning bandwidth (band specific)
• Common threaded coupling allows microphone head interchangeable

The all-metal body is robust and durable and operates on 2 AA alkaline or rechargeable NiMH cells. The ultrasonic sync function makes for a simple system setup by syncing the transmitter to the receiver frequency tuning and other functional data. The selectable output power (band specific) assists in overcoming the challenges of both long or short, transmission ranges.

The tuning bandwidth affords generous frequency tuning options helping to avoid various sources of possible interference. The threaded coupling makes attaching and interchanging a variety of heads simple and convenient. Recharging contacts provide for functional use with the optional BC2 charging station allowing the NiMH rechargeable cells within two bodypack transmitters to be charged without removal.

Electro-Voice RE3-RE520 Features

  • Robust metal body
  • Sync function for easy frequency setup
  • Selectable low and high output power (band specific)
  • Up to 36 MHz tuning bandwidth (band specific)
  • Common threaded coupling allows microphone head interchangeable

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Experience superior sound with this Electro-Voice wireless microphone system, perfect for vocals.
  • Achieve crystal-clear audio with the RE520 capsule, ensuring every performance is professional.
  • Enjoy freedom of movement on stage with a reliable wireless transmitter operating at 488-524MHz.
  • Customize your audio with adjustable frequency and sensitivity settings on the handheld transmitter.
  • The super cardioid polar pattern minimizes background noise, ideal for live performances and recording.
  • Long-lasting battery life ensures your wireless microphone is ready for extended use, gig after gig.

What's in the box:

  • Electro-Voice RE3-HHT Wireless Handheld Transmitter
  • RE420-RC3 Wireless Head with RE420 Capsule
  • Microphone Stand Adapter
  • 2x AA Batteries
  • Engineering Data Sheet
  • Electro-Voice 3 Year Limited Warranty
